Digicast Media Router Serial IP (SIP): CMR-5910 (MG-SIP) & CMR-5920 (MR-SIP) Revision A
Device Management via User Interfaces - CMR-5910 (MG-SIP) MN/MDRTRIPDC.IOM
4.2.6 Statistics

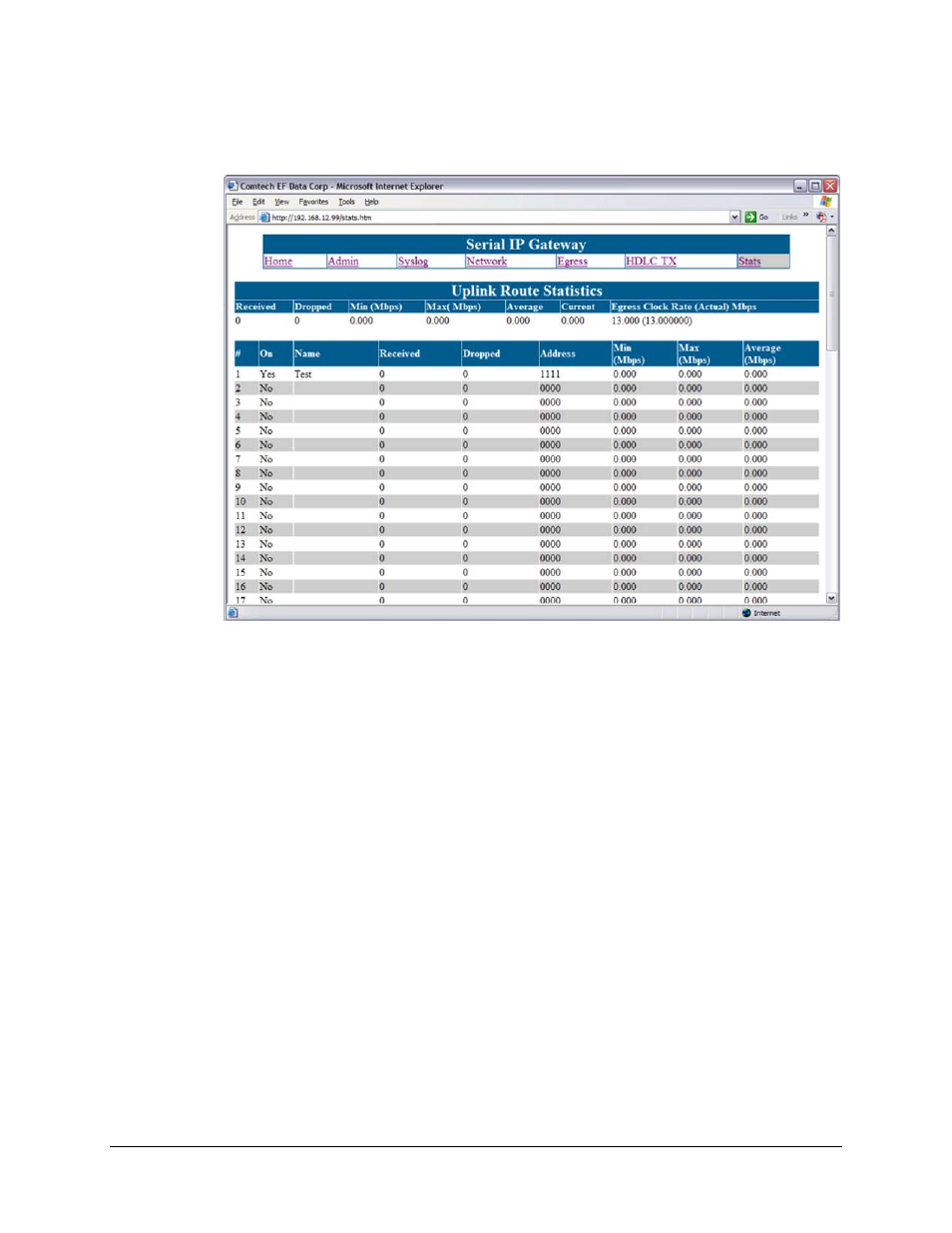

Figure 4-8. Uplink Route Statistics page
The Uplink Route Statistics page displays the statistics for all configured routes.
Page Up
and Down allows the user to scroll up or down through the configured routes on the
MG-SIP.
The
Clear Stats button allows all statistics to be cleared on the MG-SIP at the same time.
On
‘Yes’ indicates the route is active.
Name
The name assigned to a given route.
Received
The number of IP packets received on this route since the statistics were last
cleared.
Dropped
The number of IP packets dropped on this route since the statistics were last
cleared.
HDLC
The address assigned to the associated route.
4-9
