Digicast Media Router Serial IP (SIP): CMR-5910 (MG-SIP) & CMR-5920 (MR-SIP) Revision A
Device Management via User Interfaces - CMR-5920 (MR-SIP) MN/MDRTRIPDC.IOM
5.2.3 Network Configuration

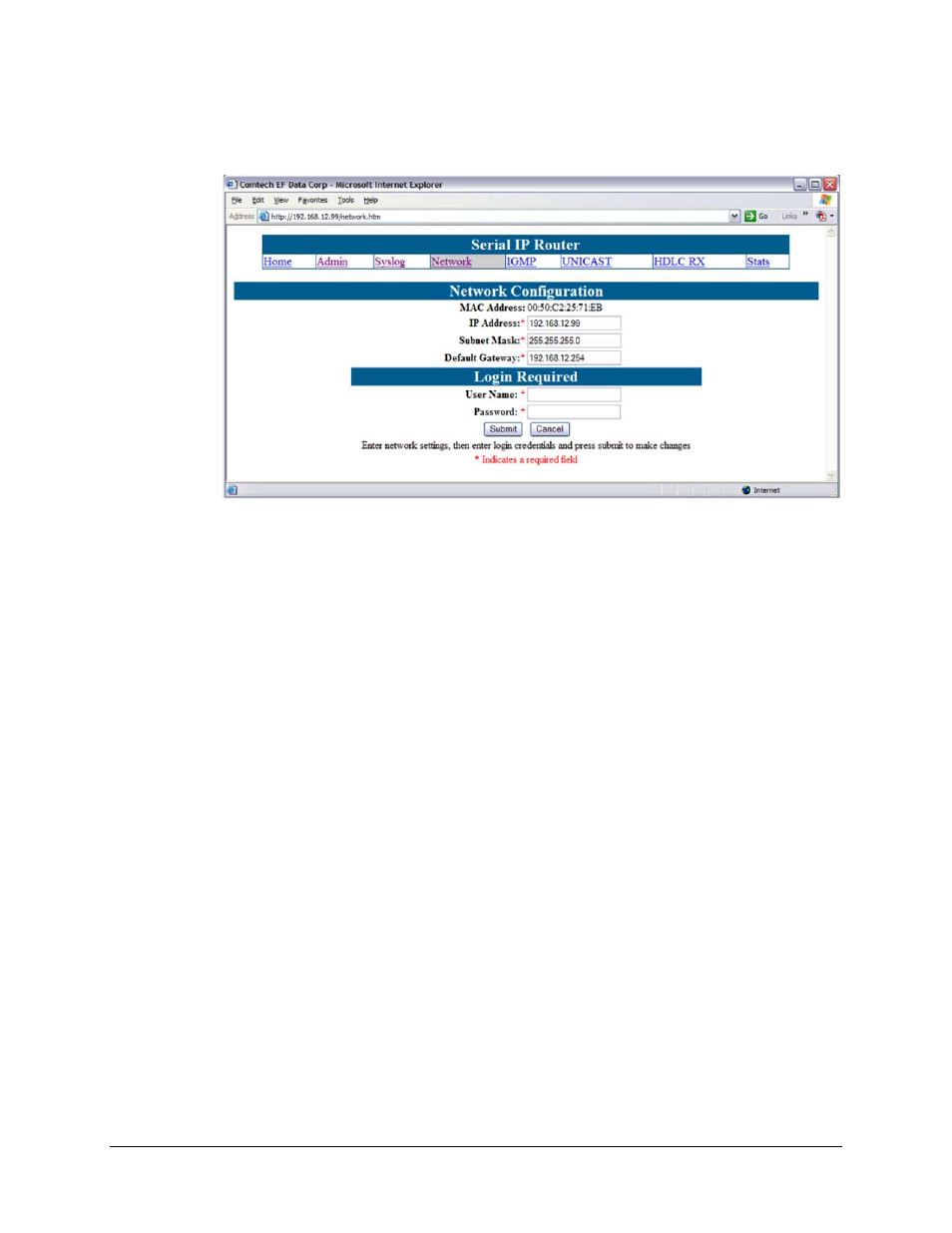

Figure 5-5. Network Configuration page
The Network Configuration page has the following configurable parameters:
IP Address
The IP Address assigned to the MR-SIP LAN interfaces. The IP Address is
entered in dotted decimal format.
Subnet Mask
The Subnet Mask assigned to the MR-SIP LAN interface. The Subnet Mask is
entered in dotted decimal format and is typically 255.0.0.0 for an A-Class mask,
255.255.0.0 for a B-Class mask, or 255.255.255.0 for a C-Class mask.
Default Gateway
The Default Gateway assigned to the MR-SIP LAN interface is the address of a
local router to which all non-local subnet traffic will be directed. The Default
Gateway is entered in dotted decimal format and must be with in the subnet of
the IP Address assigned to the LAN interface.
5-5
