Digicast Media Router Serial IP (SIP): CMR-5910 (MG-SIP) & CMR-5920 (MR-SIP) Revision A
Device Management via User Interfaces - CMR-5910 (MG-SIP) MN/MDRTRIPDC.IOM
4.2.4 HDLC Egress Configuration

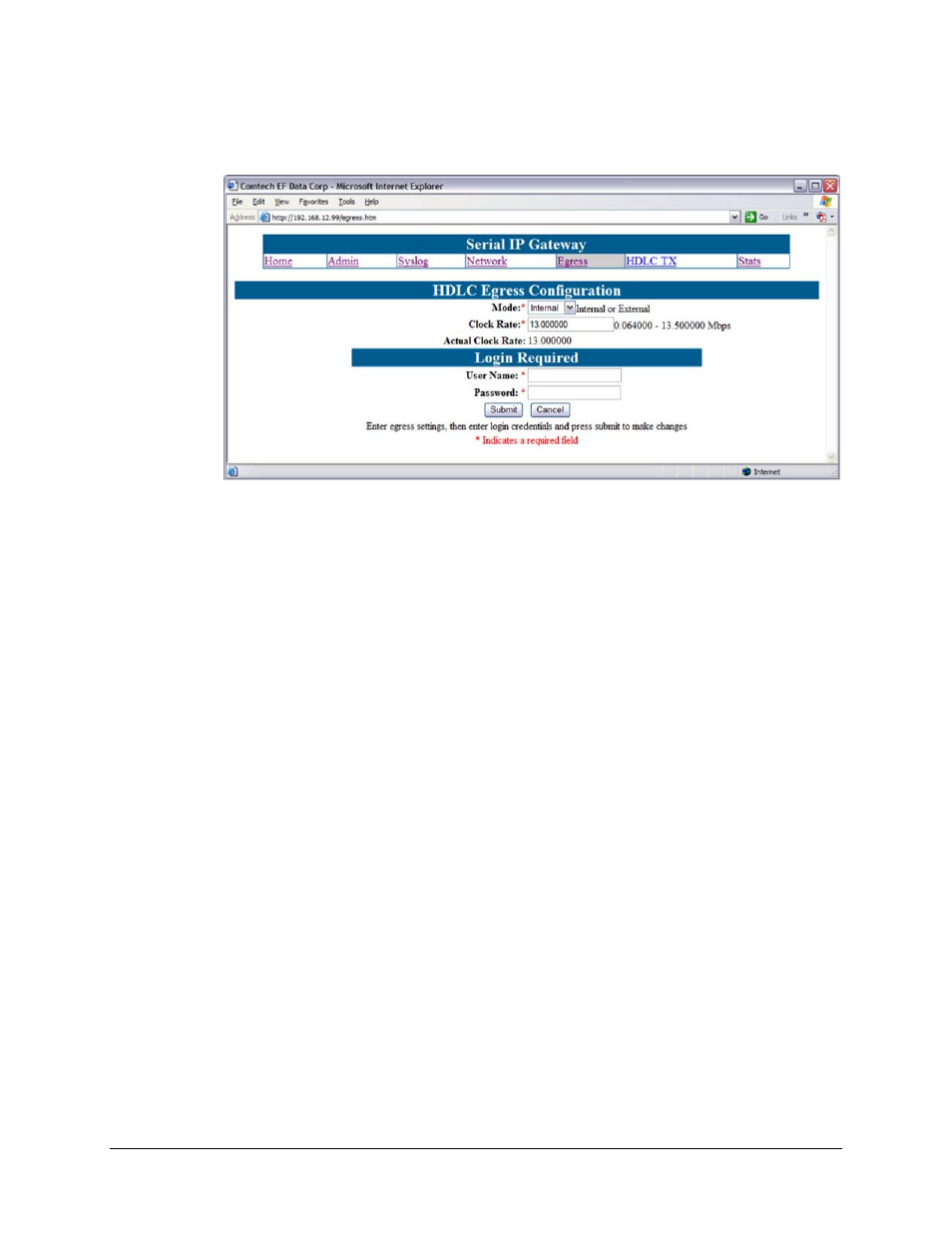

Figure 4-6. HDLC Egress Configuration page
The HDLC Egress Configuration page has the following configurable parameters:
Mode
Configure the unit for internal clock (provided to the network) or external clock
(provided by the network).
Clock Rate
Sets the bit rate of the HDLC Egress interface in Mbps. The MG-SIP supports
egress clock rates from 64 Kbps to 13.5 Mpbs in steps of 1 bps.
Actual Clock Rate
The dervied rate for internal clock.
4-6
