Chapter 3. INTERFACE PINOUTS
3.1 Pinout Overview
The rear panel interface (Figure 3-1) provides all necessary external connections between
the MG-SIP or MR-SIP and other equipment.

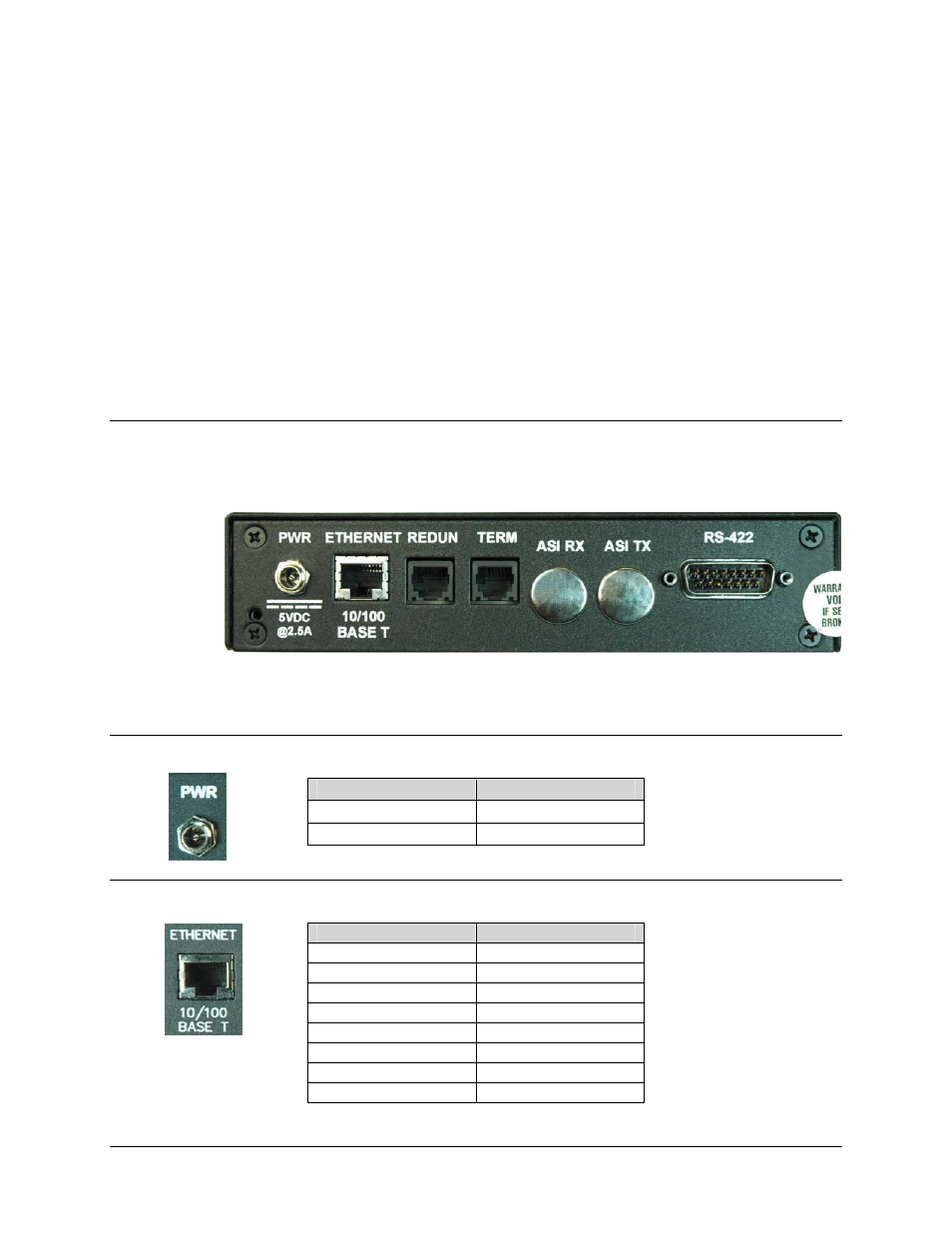

Figure 3-1. Digicast Serial IP MG-SIP / MR-SIP – Rear Panel (typical)
3.2 DC Power
Pin Definition
Center +5VDC
Outer Ring GND
3.3 RJ-45 Ethernet
Pin Definition
1 TXD+
2 TXD-
3 RXD+
4 N/C
5 N/C
6 RXD-
7 N/C
8 N/C
