VCA Group module 7578 5-7
Revision F2005-2 F-Type

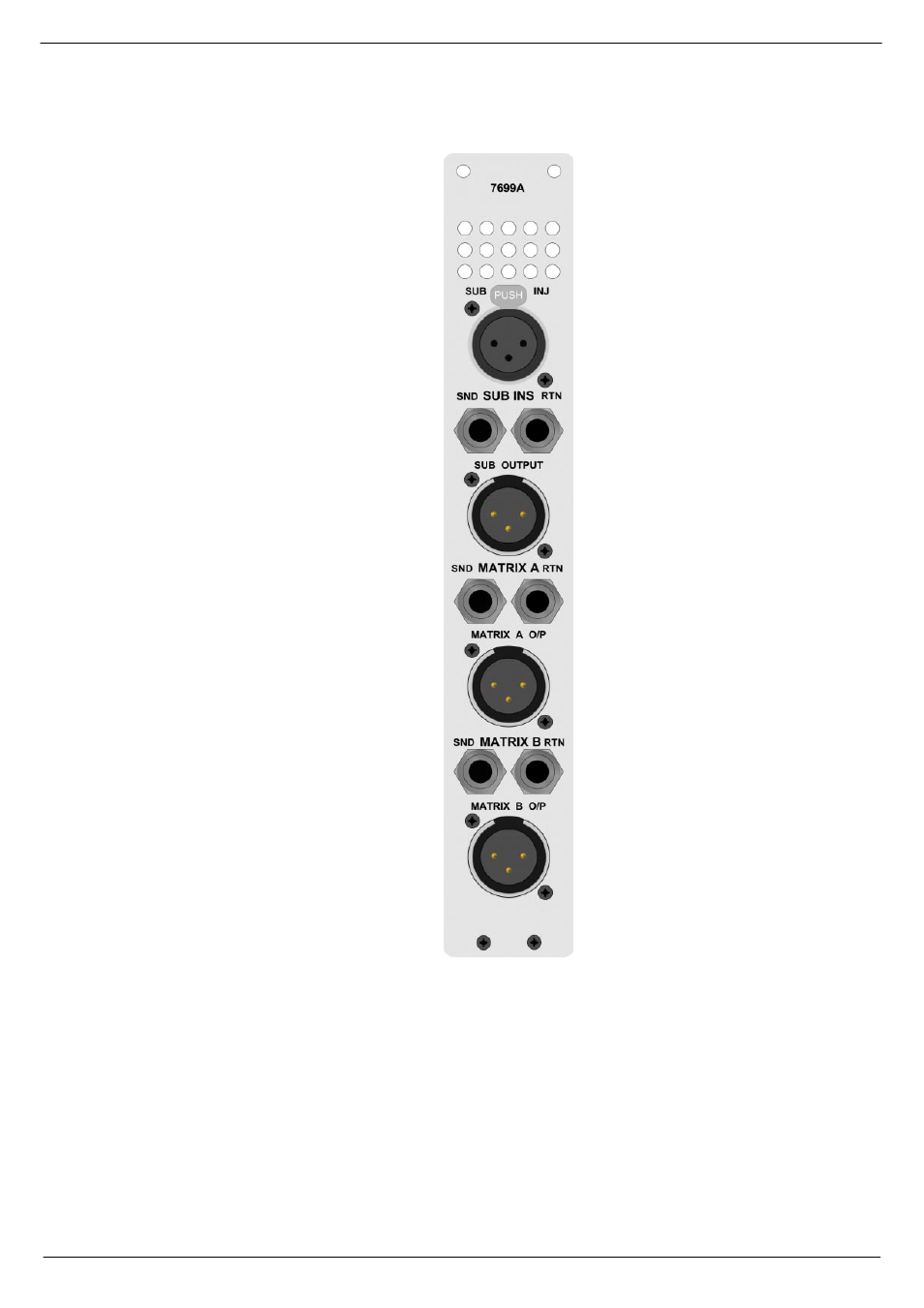

815 9&$#*URXS#0RGXOH#:8:;#0#UHDU#SDQHO
SUB INJECT
SUB INSERT SEND & RETURN
SUB OUTPUT
MATRIX A SEND & RETURN
MATRIX A OUTPUT
MATRIX B SEND & RETURN
MATRIX B OUTPUT
IMPORTANT NOTE: Pin 1 on XLR con-
nector and the ‘sleeve’ connections on
the jack sockets are connected to the
FRAME. This is to ensure that the con-
sole can comply with the Electric
Compatibility (EMC) directive.
Inputs and Outputs are electronically
balanced.
