Page 44: Monitoring module 7912 - front panel -2
6-2

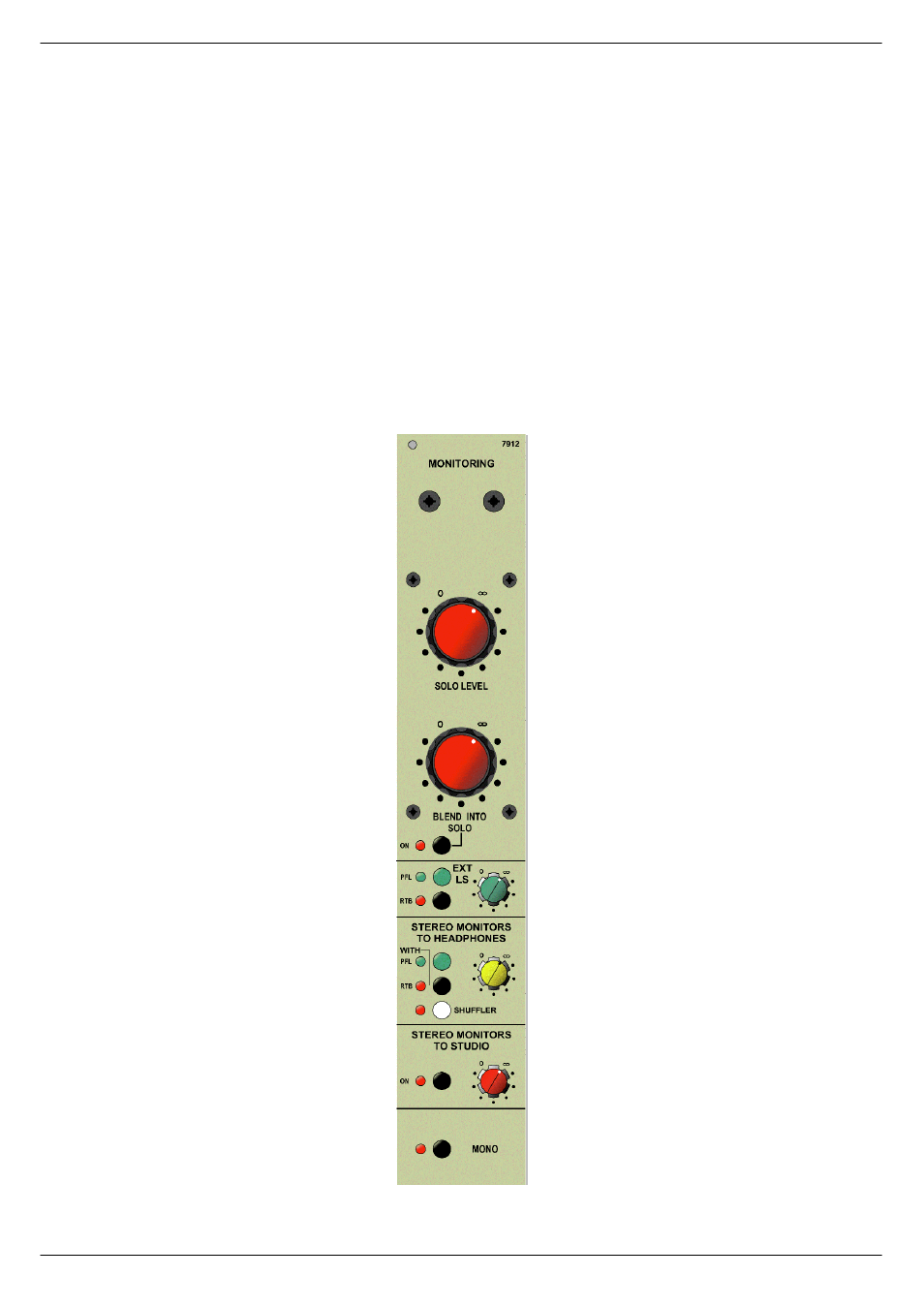

Monitoring Module 7912
C-Type
Revision C2005-2
914
0RQLWRULQJ#PRGXOH#:<45#0#IURQW#SDQHO
91414
62/2#OHYHO
This volume control sets the listening level of the ‘solo-in-place’ in the surround mon-
itors. The control is a six-section potentiometer with matched tracks that permit
retention of the solo image location.
91415
%OHQG#LQWR#62/2
This control blends the listening level of the remaining soloed channels into the mon-
itor speakers.
6.1.6 Output level - ext speaker
6.1.9 Output level - headphones
6.1.12 Output level - stereo monitors
6.1.5 Reverse Talkback - ext speaker
6.1.8 Reverse Talkback - headphones
