4-2 Stereo group & Playback Module 8064
C-Type Revision C2005-2
714 6WHUHR#*URXS#)#3OD\EDFN#PRGXOH#;397

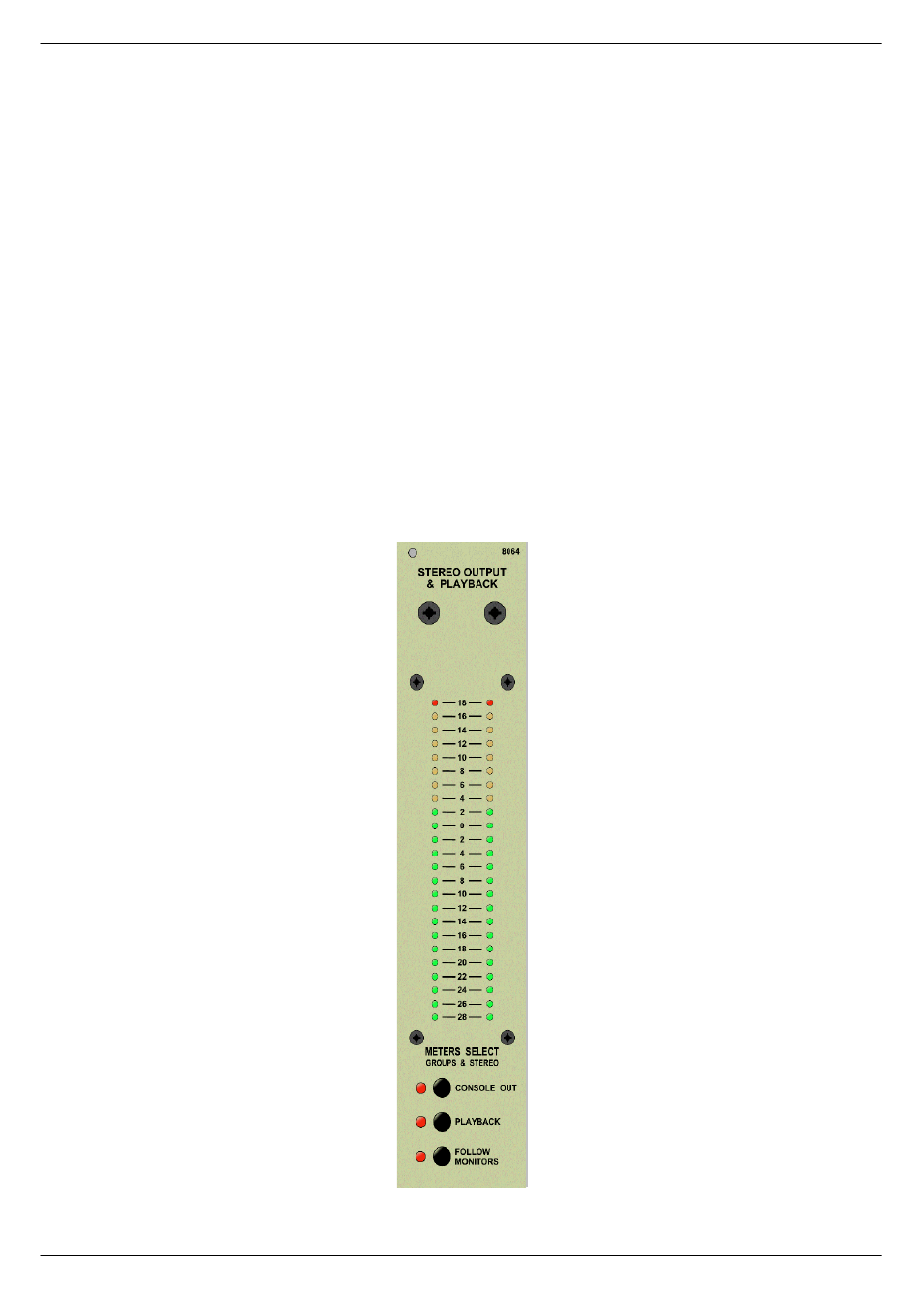

71414 /('0PHWHUV
A pair of high accuracy 24-segment LED meters with a rise time to full scale of <2 µ S.
Fall back time is approximately 3 seconds. Accuracy at any step is ±0.1dB.
The LEDs are colour coded:
Green -28dB to +4dB
Amber +6dB to +16dB
Red +18dB
The +18dB sector has a 3 second ‘peak flash’ function to indicate that this level has
been met or exceeded (user option).
71415 &RQVROH#2XW
Press this button to select Console Out as the source of the Group and Stereo
meters.
4.1.1 LED-meters
4.1.2 Console Out
4.1.3 Playback
4.1.4 Follow Monitors
