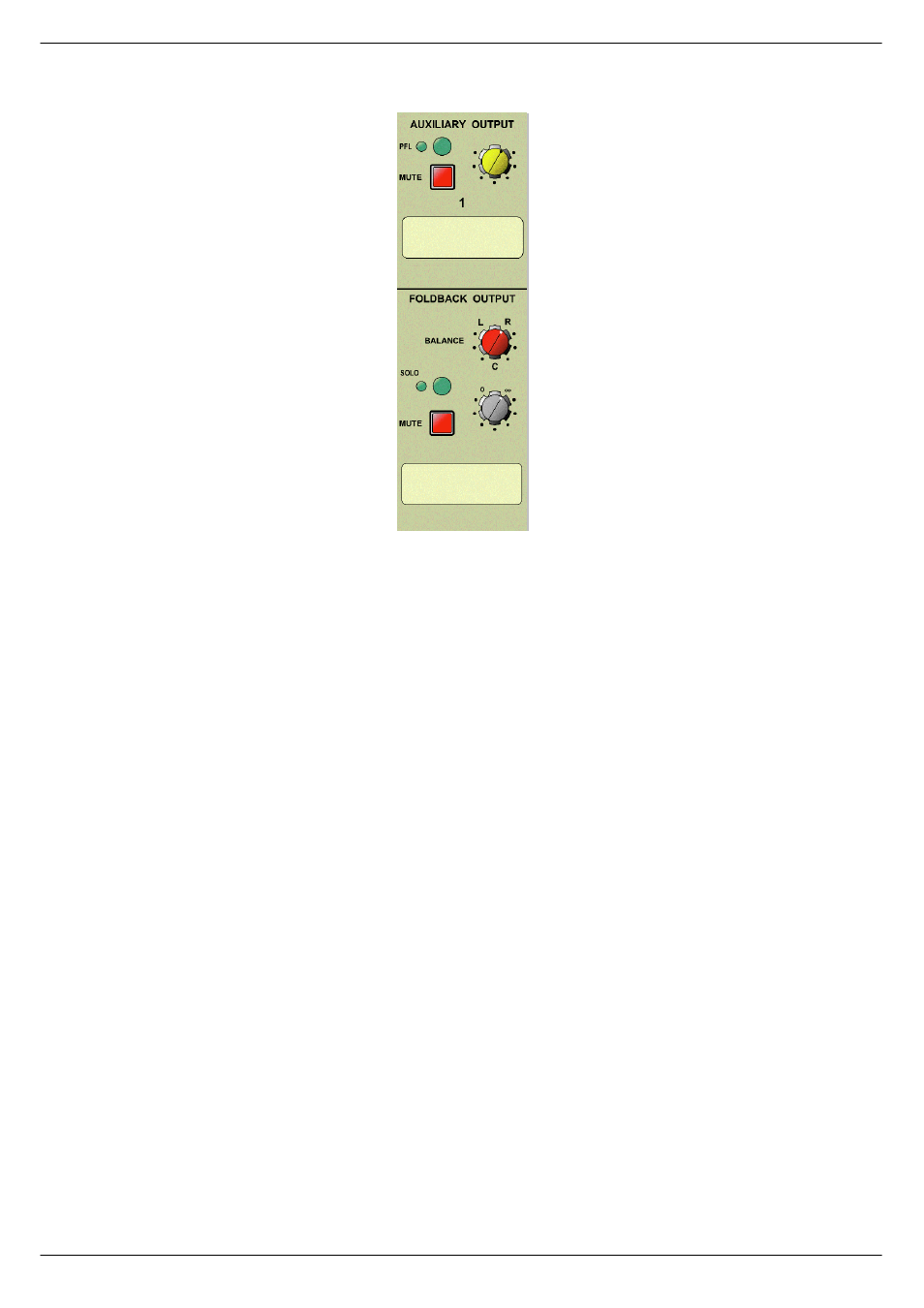

Aux Groups Output Module 8065

C-Type

Revision C2005-2

8141:

3)/

Press this button to switch the Aux group output PFL feature ON.

8141;

087(

Press this button to mute the associated auxiliary group output.

8141<

$X[#RXWSXW#OHYHO#FRQWURO

This rotary control sets the Aux group output level.

814143 62/2#21

Press this button to SOLO the output into the monitor speakers.

814144 087(

Press this button to mute the foldback output.

814145 )ROGEDFN#VWHUHR#EDODQFH

This control adjusts the stereo balance of the foldback output.

814146 )ROGEDFN#RXWSXW#OHYHO#FRQWURO

This control sets the foldback output level.
