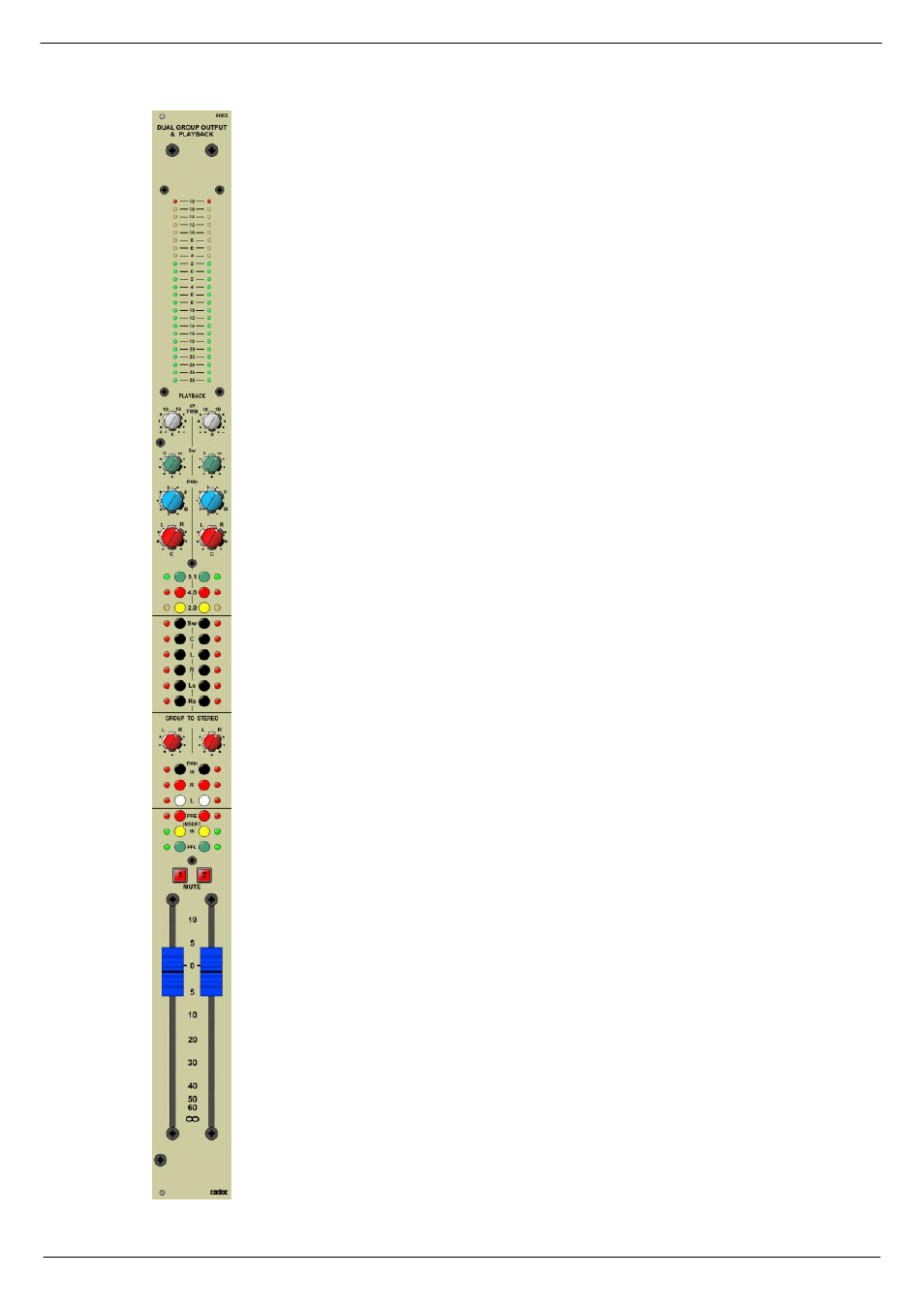

Dual Mono Group & Playback Module 8063 3-1
Revision C2005-2 C-Type
6 'XDO#0RQR#*URXS#)#3OD\EDFN#
0RGXOH#;396
Each group output module contains two output groups with identical facilities and the
groups are individually metered on a 24-segment display. The main outputs may be
used as sub-groups; each can be assigned to either the left or right stereo mixing
busses. The module provides independent PAN or Left and Right signal to L and/or
R mix busses. The insert point can be selected pre or post fader.
The following pages describes the Dual Mono Group & Playback module in detail.
