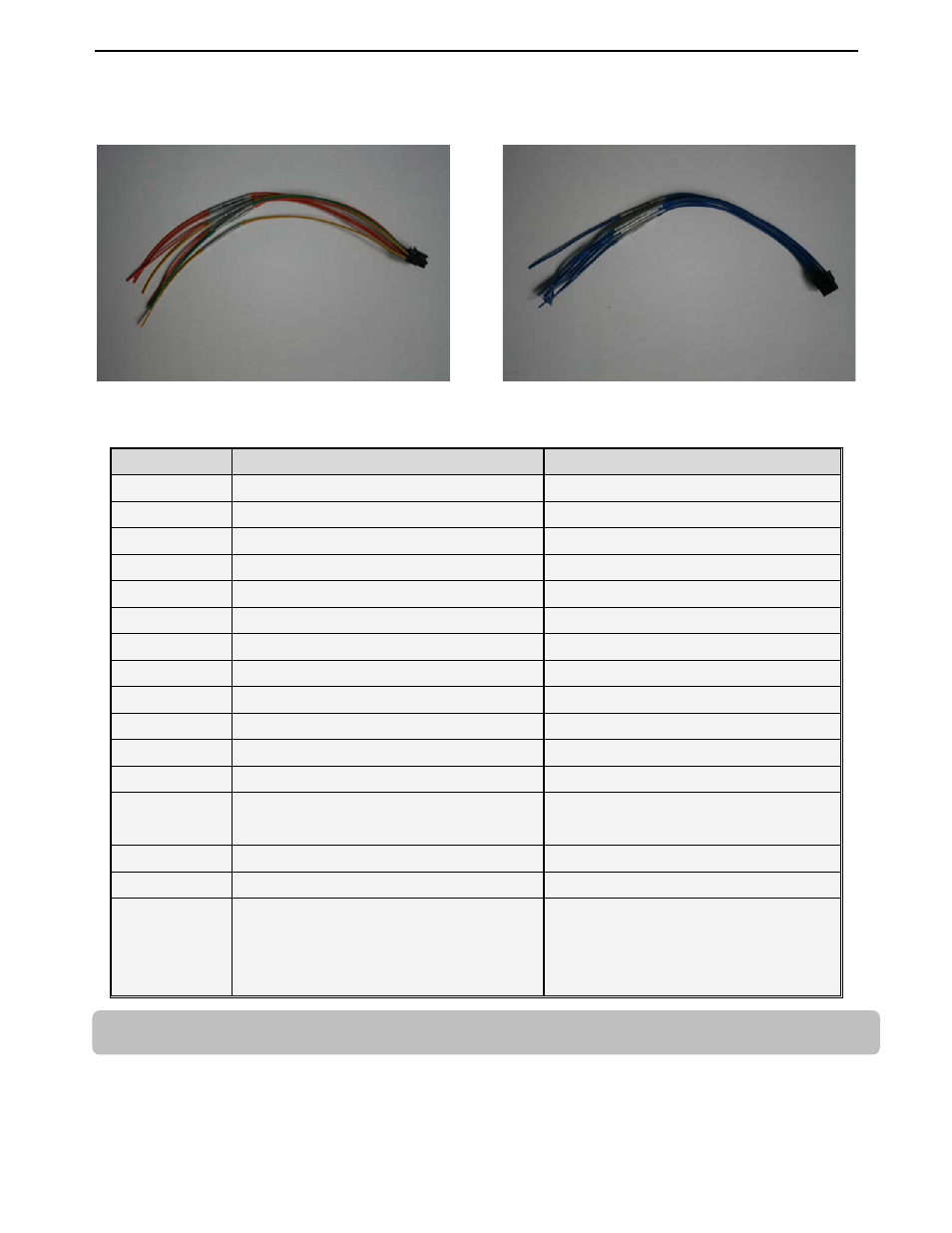

2.3.3 I/O ǃSENSORS cable
3LFWXUH,2FDEOH3LFWXUH6HQVRUVFDEOH
NO FUNCTIONS AND DESCRIPTION NOTE
Sensor1 Sensor1 input Active level, the software can be set to
Sensor2 Sensor2 input Active level, the software can be set to
Sensor3 Sensor3 input Active level, the software can be set to
Sensor4 Sensor4 input Active level, the software can be set to
Sensor5 Sensor5 input Active level, the software can be set to
Sensor6 Sensor6 input Active level, the software can be set to
Sensor7 Sensor7 input Active level, the software can be set to
Sensor8 Sensor8 input Active level, the software can be set to
Alarm-OUT1 Alarm output1 12V (Drive current: 200mA ˅ Active-high
Alarm-OUT2 Alarm output2 12V (Drive current: 200mA ˅ Active-high
RS485-A RS485 –connect to RS485 +
RS485-B RS485–connect to RS485-
Speed-Sensor
Speed detection, impulse sequence, More
higher frequency, the car speed is faster.
Guard-Sensor1 Guard-Sensor1 Active-high
Guard-Sensor2 Guard-Sensor2 Active-high
Guard-SW
Guard Enable signal The Guard-sensor1 and
Guard-sensor2 is available only when the
signal is enabled
Active-high
1RWH Less than +2V level, hanging or GND connected to S1~S8 is regarded as low level,+5V~30V as high level.
Picture 2-3 Picture 2-4
