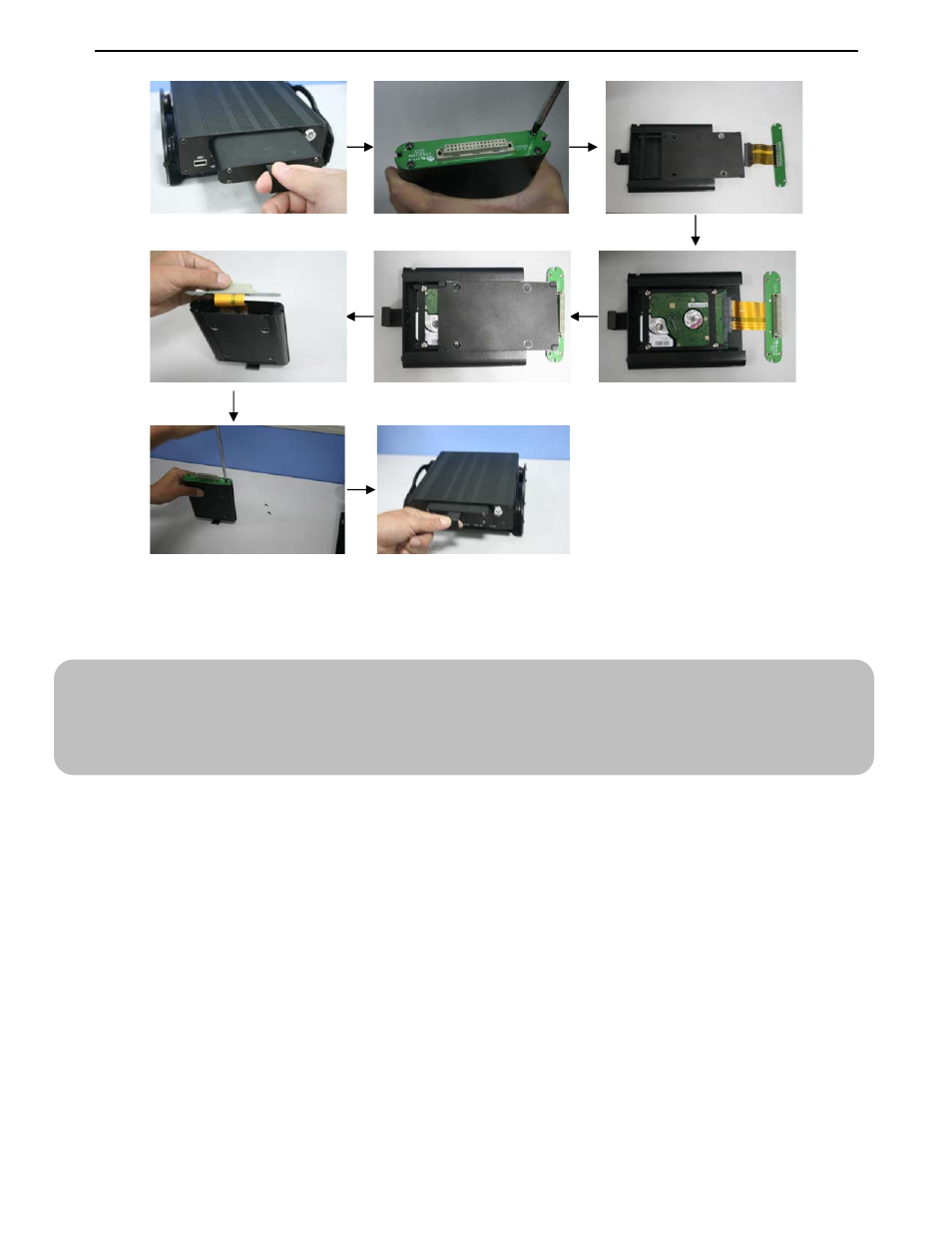

User Manual
9
Connecting Power Supply
The 6-pin plug will be connected to power supply jack of rear panel. Red and black wires connected
to car battery + and – respectively, yellow wire to ignition wire.
Connecting Camera and Monitor
Connect camera and monitor to the corresponding port on the rear panel respectively shown as
section 2.2-Rear Panel.
Connecting GPS Antenna (Optional)
Connect GPS Antenna to the GPS port on the rear panel shown as section 2.2-Rear Panel. and
make sure the front of GPS Antenna have no any blockages to avoid affect its signal receive and
transmittal.
Connecting 3G Mould Antenna (Optional)
Connect 3G Mould Antenna to the Cellular port on the rear panel shown as section 2.2-Rear Panel.
Please make sure the front of 3G Mould Antenna has no any blockages to avoid affect its signal receive
and transmittal.
Note:
1. The MDVR use DC power supply, please connect it properly;
2. Working voltage range for DVR is from 8V to 36V. Too high or low voltage make MDVR not work normally.
3. Power cable must be enough thick so that it can bear 5A current.
