User Manual
22

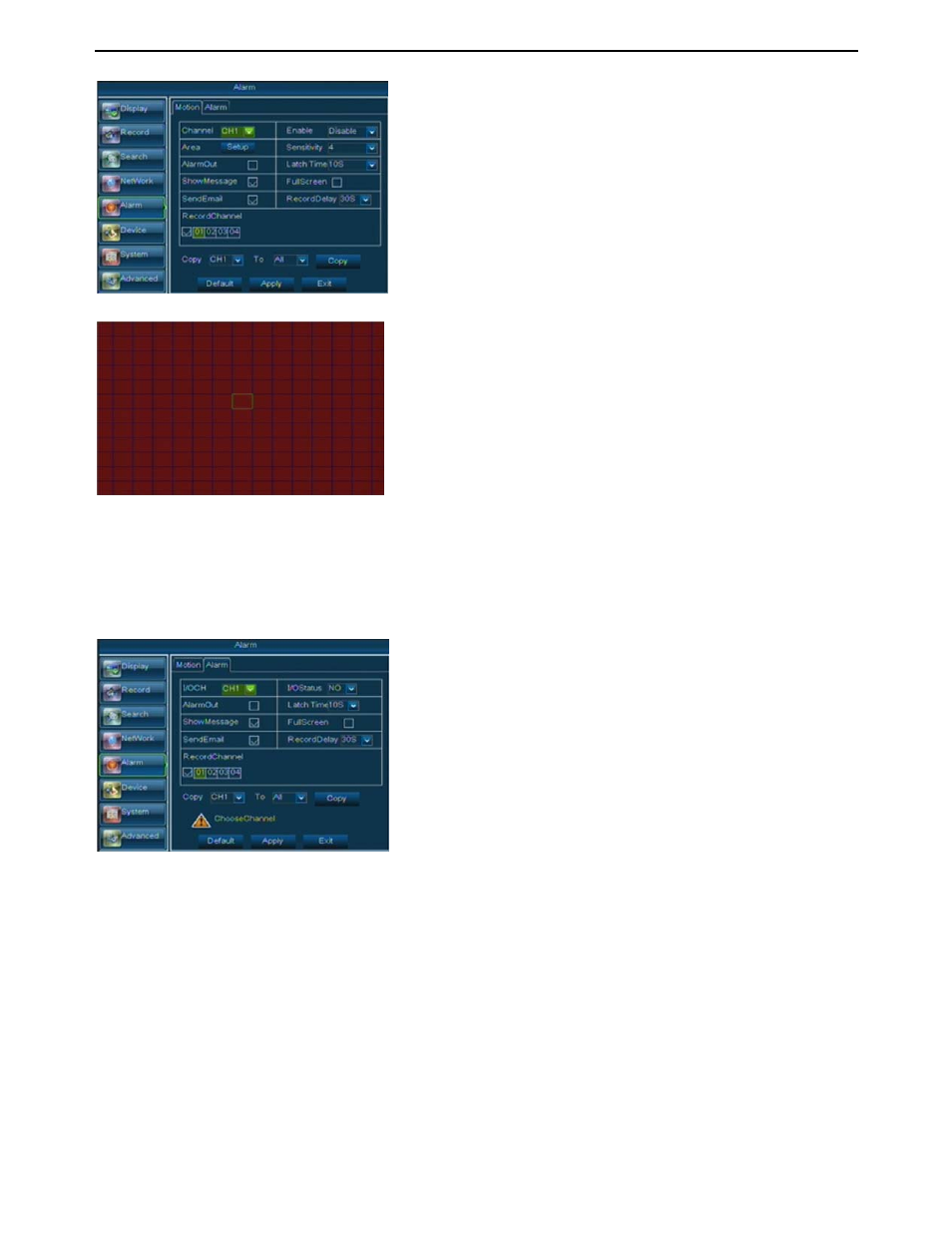

The channel will be separated into a 15X12grids (PAL mode) or 15X10grids (NTSC mode). When any
object moves into the motion detection area, and the area where the object is located is displayed in red
and motion detection will be triggered. In the semi-transparent area the motion detection is not activated.
5.2.5.2 Alarm Set
Click [Main Menu
ÆDeviceÆAlarm] to enter into the below interface shown as Picture 5-34.
Now you can perform alarm set based on different status. Details please refer to List 5-1.
¾ Show Message: You can set show message on the screen when sensor alarm is detected.
¾ Full screen Alarm: The function is defaulted to “On". When the motion detection or external alarm is
triggered, the corresponding channel will be switched to the full screen mode.
¾ Send Email˖Allows you set the alarm images is issued to a specified email or not.
¾ Record Delay: you can set how long alarm record will last when alarm ends (30s, 1minuteˈ2minuteˈ
5minute).
¾ Record Channel: the record channel will be activated external sensor alarm is triggered.
¾ Copy: allow you copy all the setting of one channel to other ones.
¾ I/O CH: allow you select one desired channel
¾ I/O Status: allows you select the three options – NO (Normal
Open), NC (Normal Close) and OFF. Set to “Normal Open”,
I/O status Alarm will be activated while sensor is ON; set to
“Normal Close”, I/O status alarm will be activated while sensor
is OFF; set to “OFF”, I/O status alarm will not be triggered.
¾ Alarm out: allow you connect external alarm sensor.
¾ Latch: you can configure how long the buzzer will sound
when external sensor alarm is detected (10s, 20, 40s, 60s)
¾ Show Message: You can set show message on the screen
when motion alarm is detected.
¾ Full screen Alarm: The function is defaulted to “On".
When the motion is detected, the corresponding
channel will be switched to the full screen mode.
¾ Send Email˖Allows you set the alarm images is issued to
a specified email.
¾ Post Recording: you can set how long alarm record
will last when alarm ends (30s, 1minute ˈ2minuteˈ
5minute).
¾ Record Channel: the record channel will be activated
when the object move is detected.
¾ Copy: allow you copy current channel parameters to
any other channel or all channels.
Picture 5-33
Picture 5-32
Picture 5-34
