User Manual
2
Chapter 2 Layout

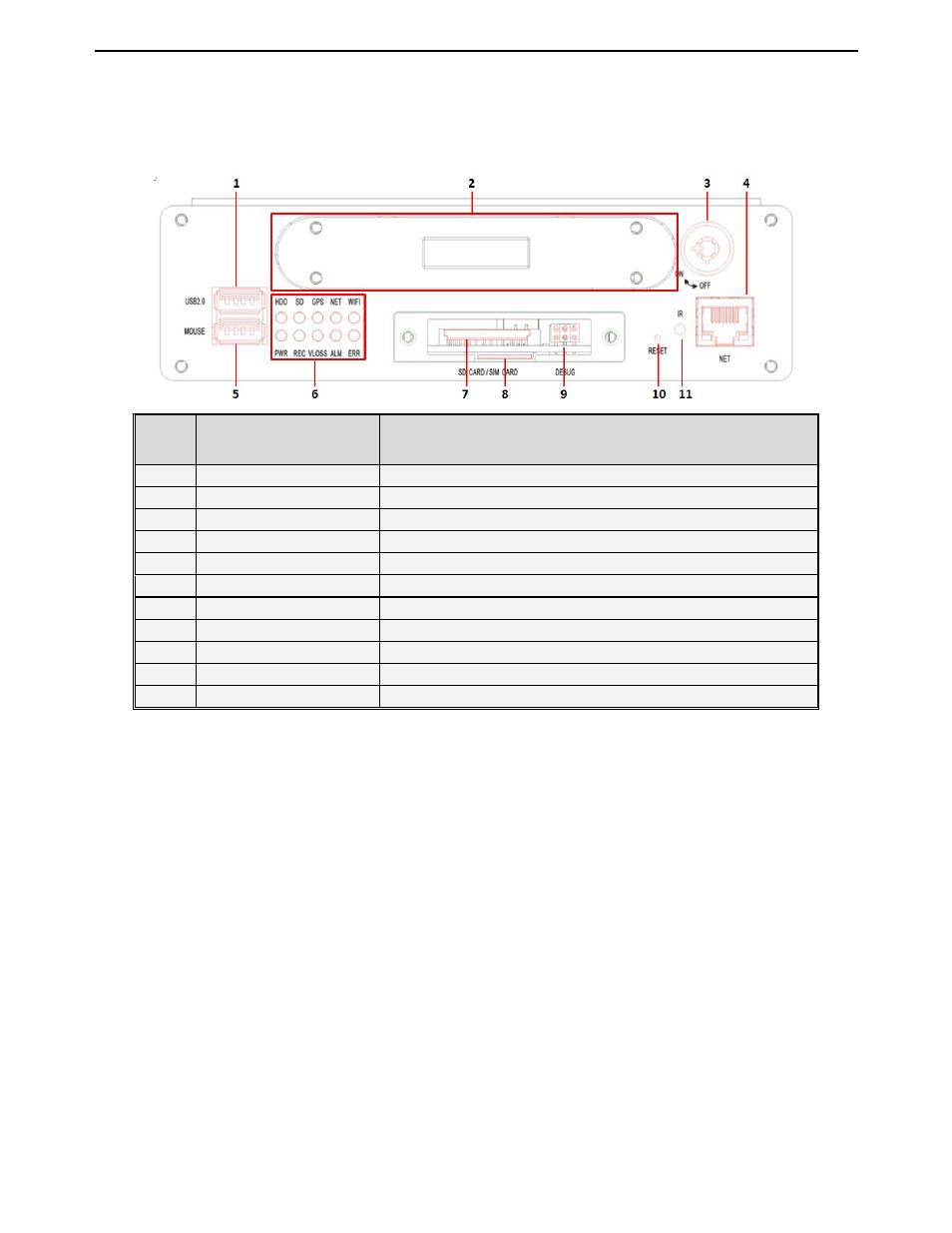

2.1 Front Panel
Item
No
Definition Description
1 USB 2.0 Port Data backup and device upgrade
2 Retractable HDD cartridge 2.5inch HDD and support up to 500G
3 HDD Key ˄Power on/off˅ Fix retractable HDD and toggle power on/off
4 RJ45 Ethernet Port Connect to Ethernet cable
5 USB 2.0 Port Connect to USB Mouse
6 Indicator Please refer to below indicator definition
7 SD Card Slot Connect to SD card and support up to 32G
8 SIM Card Slot Connect to 3G card
9 DEBUG Port Debug Port
10 Reset button Reset Key
11 IR receiver Receive IR signal
Indicator Definition as follows:
a) PWR Indicator: light on when power is on
b) HDD Indicator: light on when HDD is available; light flash when HDD is writing data.
c) REC Indicator: light on when recording is in processing.
d) SD Card Indicator: light on when SD card is reading/writing data
e) VLOSS Indicator: light on when video loss is triggered.
f) GPS Indicator: light on when installing GPS mould and haven’t received GPS signal and light flash when
received GPS signal
g) ALM Indicator: light on when any alarm is triggered.
h) Net Indicator: light on when wireless Net is installed and on the status of working (Optional)
i) ERR Indicator: light on when error occurs
j) HEAT Indicator: light on when heat mould is working (Optional)
SIM Card Slot: It is available only when the MDVR have installed according system mould;
Debug Port: Debug port and MCU upgrade
