6.2 Remote Viewing

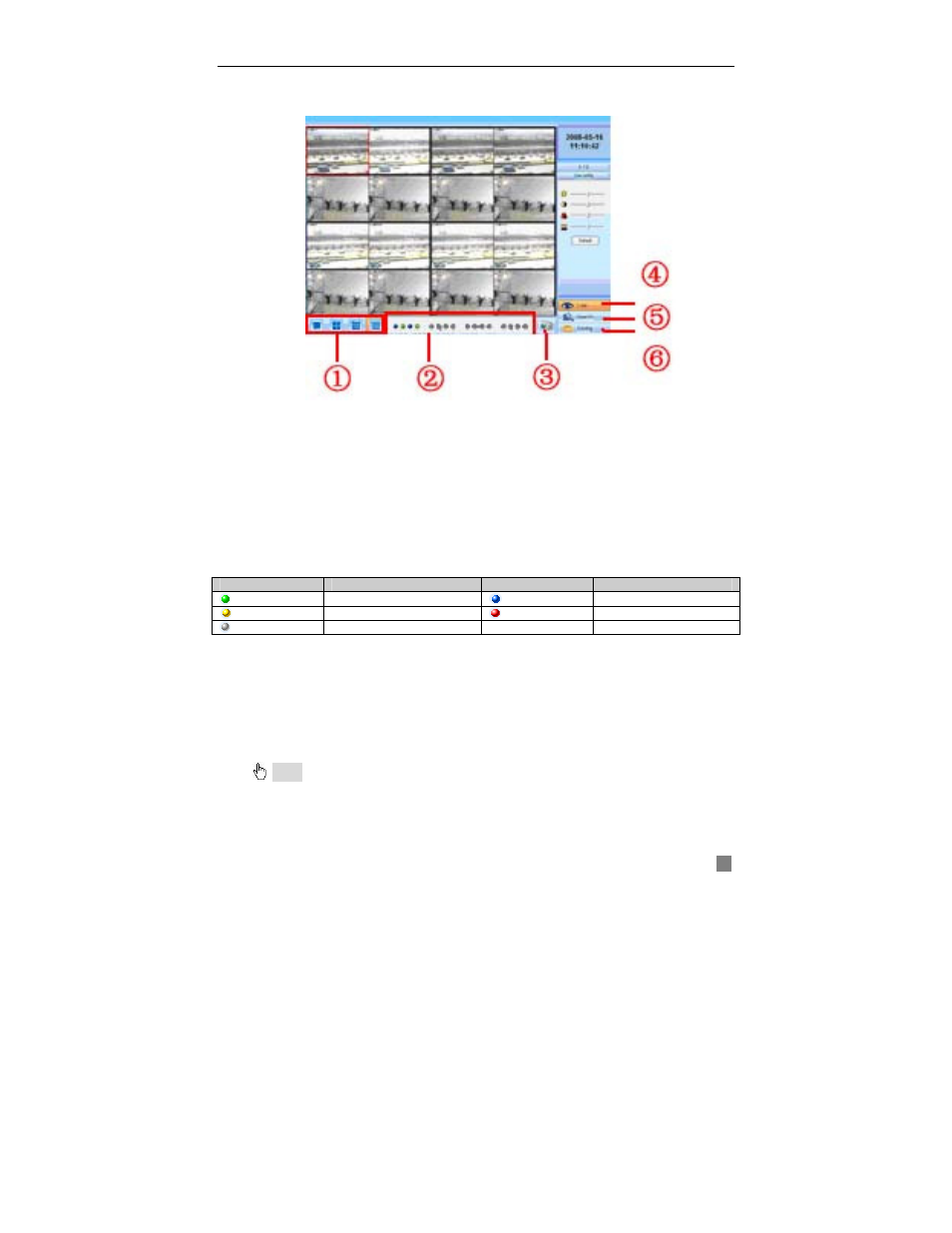

When you enter remote preview you will see the interface shown below:
Fig 6.2 Remote Preview Interface
① Full screen, 4/9/16 screens display mode.
② Camera status:
There are four rows of indicators, which refer to recording, video loss,
motion and alarm respectively. When the indicator displays red, it means the
relative event. If it shows grey, means the relative event doesn't exist. For
example, the indicator of camera1 in video loss row will show red if there is
video loss. If it shows grey, channel1 is normal.
Below is the definition of the indicators in the record row:
Symbol Meaning Symbol Meaning
Manual recording Schedule recording
Motion detection recording Alarm recording
No recording
Tab 6.1 Recording Indicator
③ Picture snapshot
④ Remote preview: Adjust the color of cameras, control PTZ.
⑤ Remote playback and backup: Make remote playback and backup, check
system log. Please refer to 6.3 Remote Playback &Backup.
⑥ Remote menu setup: Set the parameters remotely.
Note : the backup file is AVI format. Users can play with a third party player directly.
Remote Menu Configuration.
④, ⑤ and ⑥ are the function blocks. When one is active, the button will
show orange.
