QSD2308L/QSD2316L DVR User’s Manual
35
4.2.3 Record Configuration

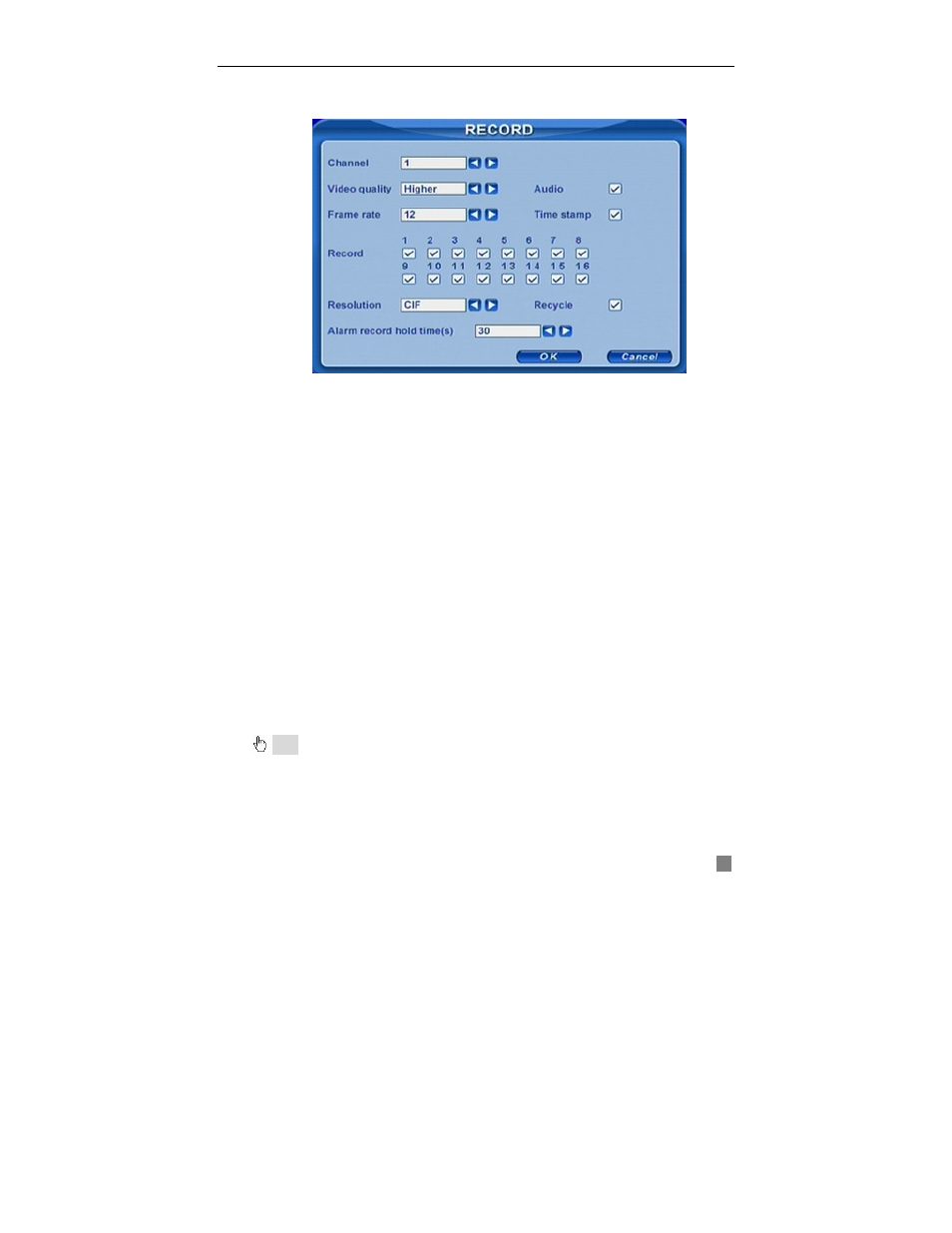

Click RECORD to enter record configuration shown as Fig 4.7 Record
Configuration.
Fig 4.7 Record Configuration
Here users can set record quality, frame rate, resolution and recycle. The
following are the definitions of each option.
Video quality: There are 5 options from lowest to highest. The higher the
value is, the clearer the recorded picture is.
Frame rate: Set recording frame rate.
Audio: Enable audio recording.
Time stamp: Record the current time to video file if checked.
Record: Switch on/off recording function for every camera. DVR records
the camera only if the camera’s option is checked here. Then you can use
manual, schedule, motion detection and sensor alarm recording options for
the camera.
Resolution: DVR supports CIF and D1. D1 option is not currently
available.
Alarm record hold time(S): Set the length of time DVR records after alarm
finishes. It has 4 options, 30, 60, 120 and 180 seconds.
Recycle: Enable HDD recycle. If checked hard drive will overwrite older
files once it is full. If unchecked it will stop recording when HDD is full.
Note: Video quality, frame rate and resolution are closely related to used storage space.
The higher the value is, the higher the bit rate and more space recordings take up on the hard
drive.
