QSD2308L/QSD2316L DVR User’s Manual
29
3.6 PTZ Control
Please connect speed domes to the DVR via RS485 first, refer to 2.3.1
Rear Panel. Make sure the speed dome has a protocol this DVR supports and
set the parameters according to its manual.
STEP1 Press right mouse button to show the control bar. Enter
Menu---->System--->P.T.Z, see Fig 3.26.

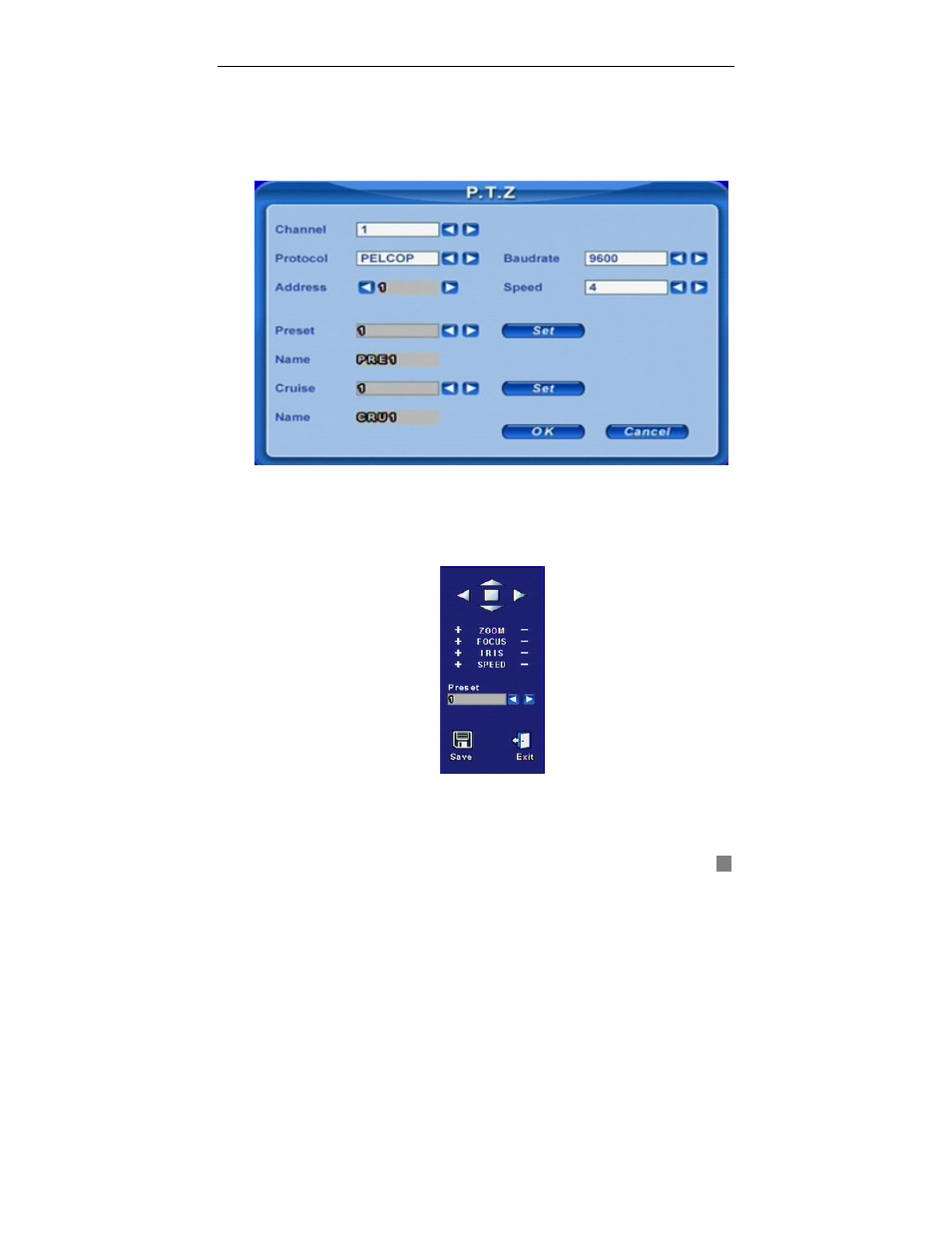

Fig 3.26 PTZ Setup
STEP2 Set protocol, baud rate, and address according to the parameters
of the speed dome.
STEP3
Click Set button at right of Preset. Here users can set presets,
shown as Fig 3.27 Set Presets. Adjust the speed dome. Select a preset and
click to save. Users can set 16 presets total.
Fig 3.27 Set Presets
STEP4 Click Set button at right of Cruise. Here users can set cruise track,
shown as Fig 3.28 Set Cruise. Choose the preset, set stay time of every
preset. Click + button to add the preset to the left preset for cruise track.
