QSD2308L/QSD2316L DVR User’s Manual
13
CHAPTER 3 Basic Function Instructions
3.1 Power On/Off
Note : Before you power on the unit, please make sure all the connections are good.

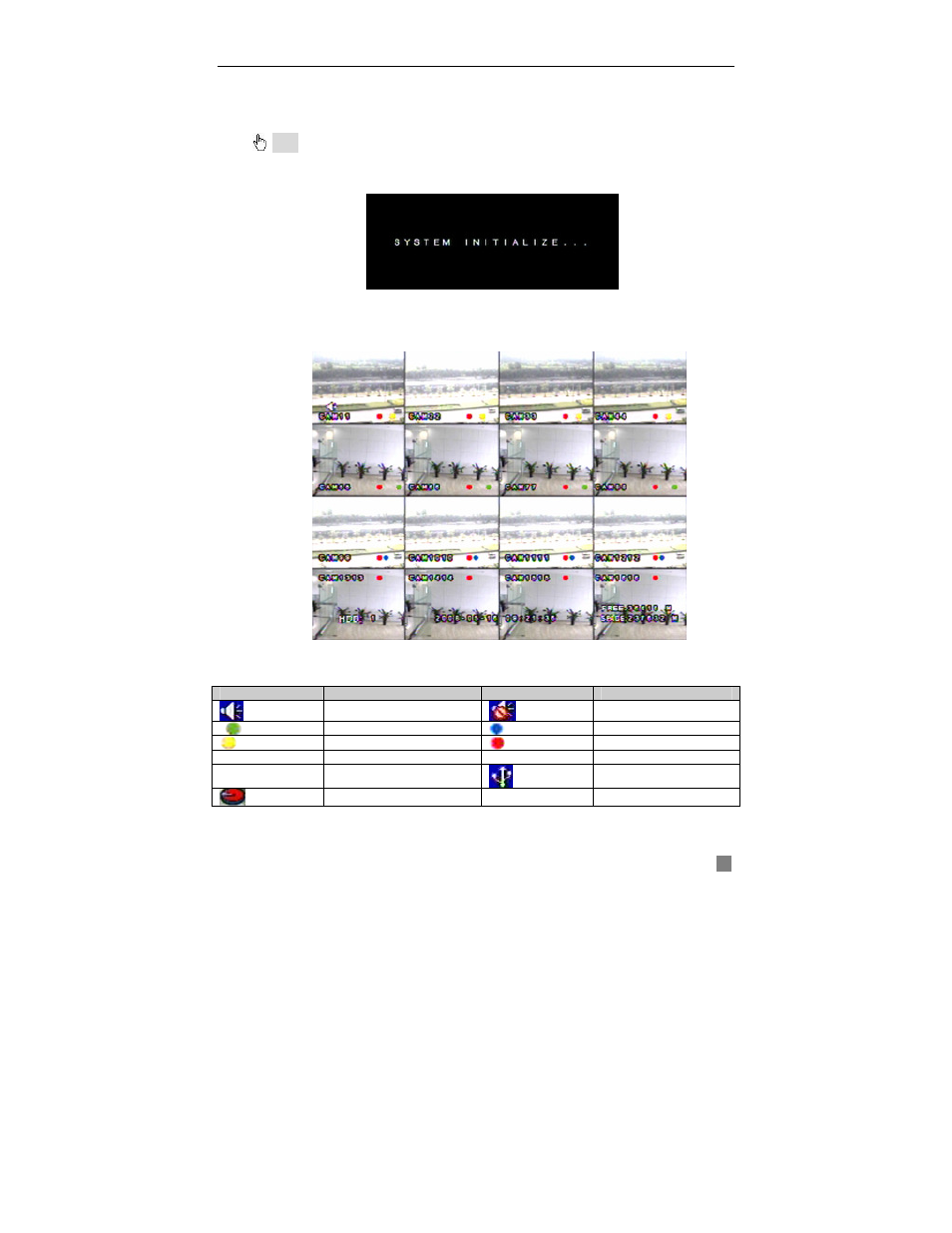

Connect the power, the system will show the screen in Fig 3.1 System
Loading
Fig 3.1 System Loading
After that it will enter live in 16 screen mode. The meaning of letters or
symbols on screen are shown in the table below.
Fig 3.2 Preview
Symbol Meaning Symbol Meaning
Live audio enabled Live audio disabled
Manual recording Scheduled recording
Motion detection recording Alarm recording
HDD Current working HDD Space Size of current HDD
Free Free space of current HDD USB devices connected
HDD full
Table 3.1 Meaning of Symbols in Live View
