QSD2308L/QSD2316L DVR User’s Manual
38
4.2.6 Motion Configuration
Click MOTION to enter motion configuration shown as Fig 4.11 Motion
Configuration.

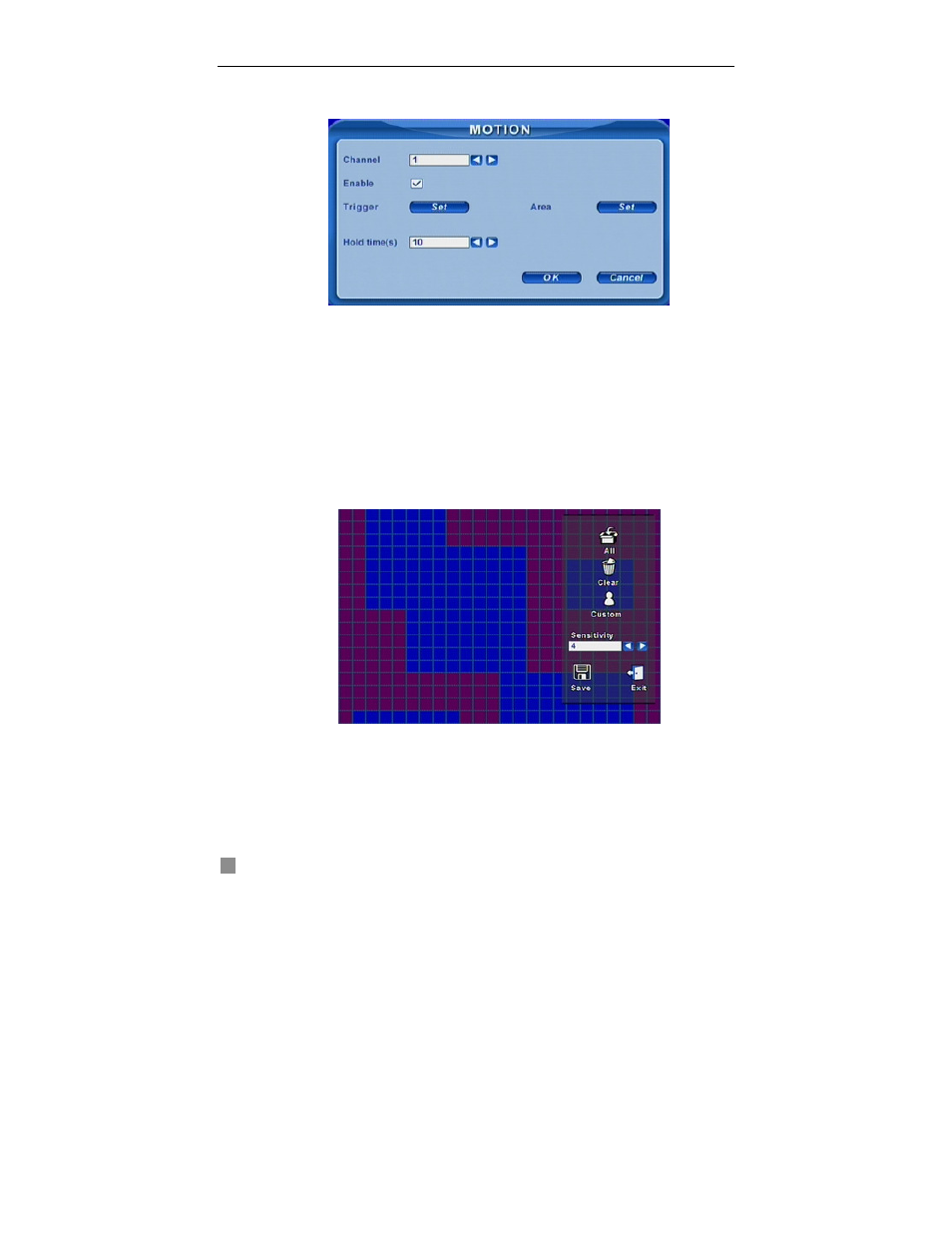

Fig 4.11 Motion Configuration
Here users can set motion sensitivity, detection area and alarm out. The
following are the definitions of each option:
Enable: Enable motion detection.
Trigger: Setup similar with that of sensor alarm, but linked speed domes
need to use different channels, i.e. if users enable motion detection on
camera 1, the linked speed domes must be cameras 2-16.
Area: Set sensitivity and motion detection area. DVR supports multiple
detection areas as shown in Fig 4.12 Detection Area Configuration. Click the
blocks or drag mouse to enable or disable. Red means unavailable,
transparent means available. Click Save to save and exit.
Fig 4.12 Detection Area Configuration
Sensitivity: Set detection sensitivity from 1-8, 8 is most sensitive. The
default is 4.
Exit: Quit without saving
Hold time(S): The interval time between two consecutive motion events,
similar to that of sensor alarm.
