STEP4 Select alarm out and recording channels. It can trigger any alarm
out and cameras to record once motion is detected.
STEP5
Enable or disable Buzzer on board. Select speed dome (PTZ) and
enable preset or auto cruise. Press OK to save
STEP6
Set Hold time. It is the interval time between two consecutive
motion events. If a second motion event is detected during the Hold time, it is
recognized as a continuation of the first motion event. If a second motion is
detected after Hold time, this motion and the previous are recognized as two
different motion events.
STEP7
Click OK to save settings
STEP8 Enter SCHEDULE configuration. Select Motion and relative
cameras to set, refer to 3.3.3 Schedule recording.
Note : About preset and auto cruise, users can only select one or the other.
The actual post alarm record time equals Hold time in RECORD and Hold time in MOTION
3.3.5 Alarm Recording
This unit supports recording channels and PTZ linking after alarm.
STEP1 Enter ALARM configuration, see Fig 3.13 Sensor Alarm Setup.
Select cameras

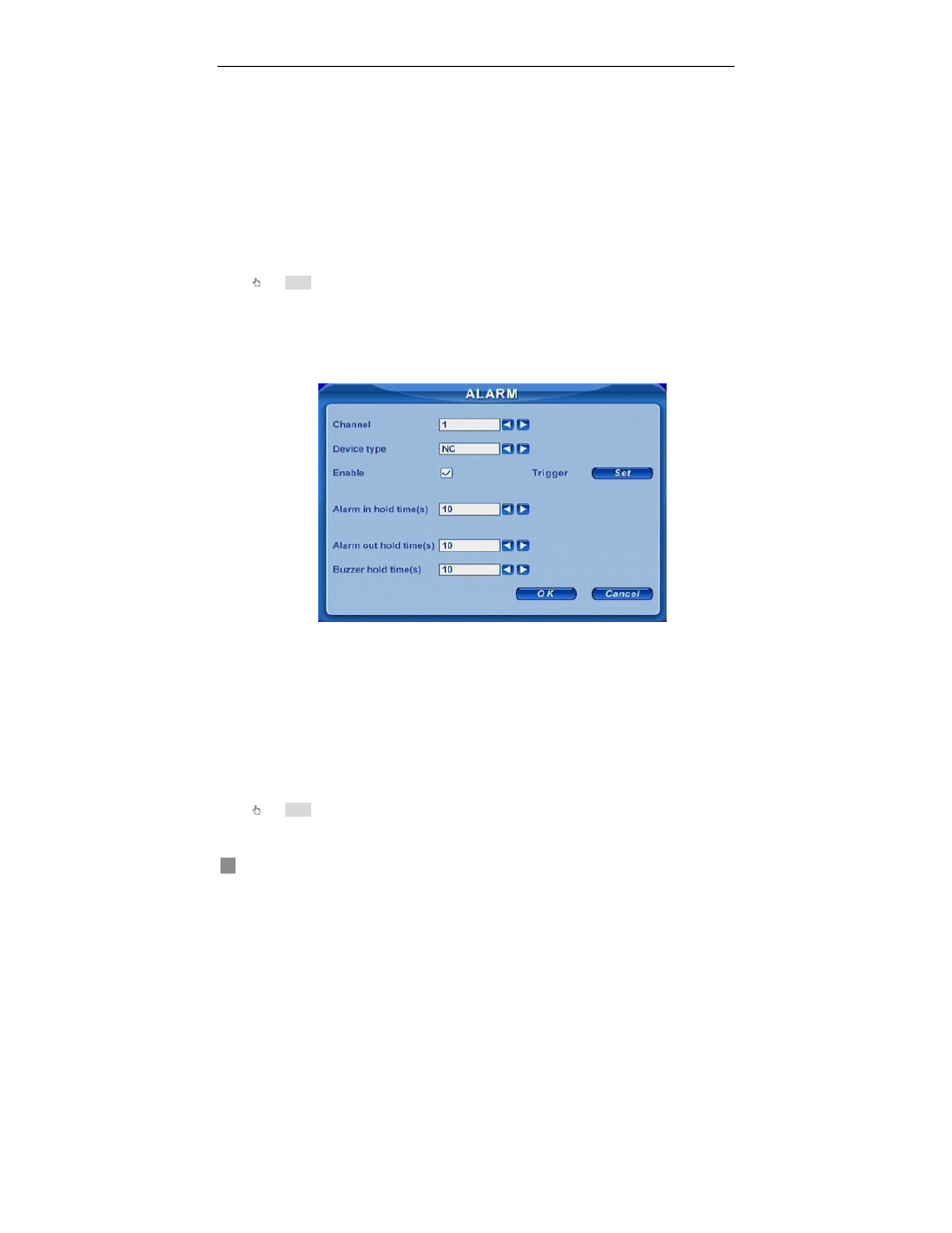

Fig 3.13 Sensor Alarm Setup
STEP2 Enable Detection first. Set Device type.
STEP3 Enter Trigger configuration. Set alarm out, recording cameras and
linked PTZ, referring to 3.3.4 Motion Detection Recording STEP4-5
STEP4
Set Alarm in hold time. It is the interval time between the two
adjacent efficient alarms. This is similar with Hold time in MOTION
configuration.
STEP5
Set Alarm out hold time and Buzzer hold time. Click OK to save
settings
STEP6
Enter SCHEDULE configuration. Select Sensor and relative
cameras to set, referring to 3.8 Schedule Setup.
Note : About preset and auto cruise, users can only select one at same time.
The actual post alarm record time equals Hold time in RECORD and Hold time in MOTION
