QSD2308L/QSD2316L DVR User’s Manual
7

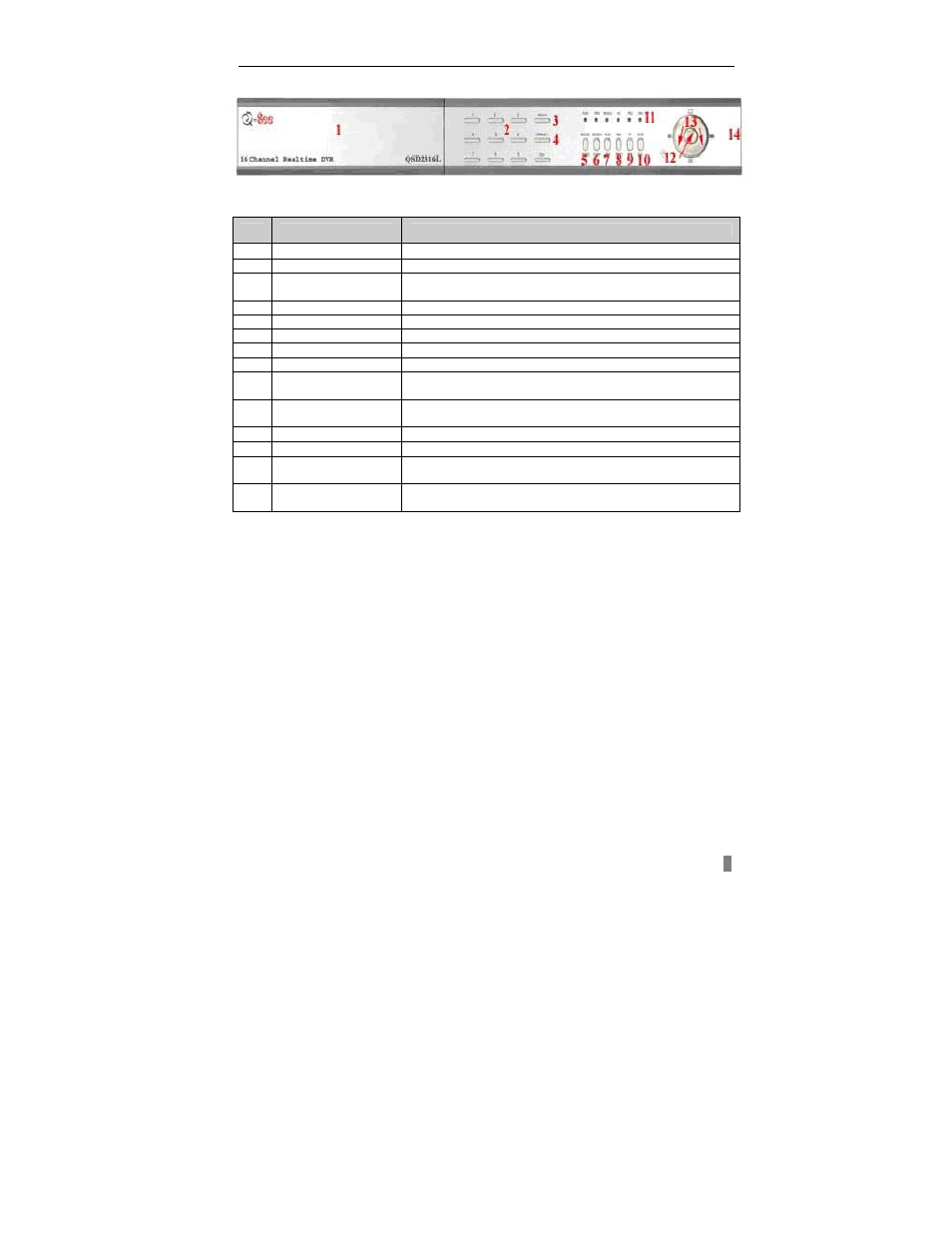

Fig 2.6 Front Panel Option B
Item Name Function
1 DVD Recorder / HDD Tray opening for optional DVD Recorder or Hard Drive
2 Number buttons Input numbers or choose camera
3 Menu/+ button
1. Increase the value in setup
2. Enter menu from live view
4 Backup-/back Backup files, Delete, Number Decrease button
5 RECORD/Focus Record manually, Focus PTZ cameras
6 SEARCH/Zoom Enter search mode, Zoom control for PTZ cameras
7 PLAY/Iris button Enter playback interface, Iris control for PTZ cameras
8 REW/Speed/info Rewind, increase or decrease speed, system info
9 FF/PTZ control
1. Fast forward
2. control PTZ cameras
10 STOP/ESC
1. Quit playback mode
2. Exit the current interface or status
11 Indicator Working indicators for power, HDD, network, etc
12 Enter button To confirm the choice or setup
13
Direction/Multi-screen
button 1. Direction buttons. Move cursor in setup or pan/tilt PTZ
2. Change screen display like single, 4, 9 and 16 screens
14 USB port on side
To connect external USB flash drive for backup or updating
firmware
Table 2.2 Functions of Front Panel Buttons Option B
