All electrical connections and the installation of this fixture must be in agreement with local codes,
ordinances or the NEC (National Electric Code) or CEC (Canadian Electrical Code).
Do not connect this fixture to an electrical system that does not provide a means for equipment grounding.
INSTALLATION GUIDE
Use With
these Models:
• Pahu 8
(x00607)
• Tamburo 8
(4006xx)
(4387xx)
Using a Continuity Tester or Multimeter,
confirm the following connections:
• Clear Conductor with White Stripe (Neutral/White)
is connected to the Socket Screwshell. This wire is
to be connected to house supply white conductor.
• Clear Conductor (Hot/Black) is connected
to the Socket Center Contact. This wire is
to be connected to house supply black wire.
SOCKET
SCREWSHELL
SOCKET
CENTER CONTACT
POLARITY INSTRUCTIONS

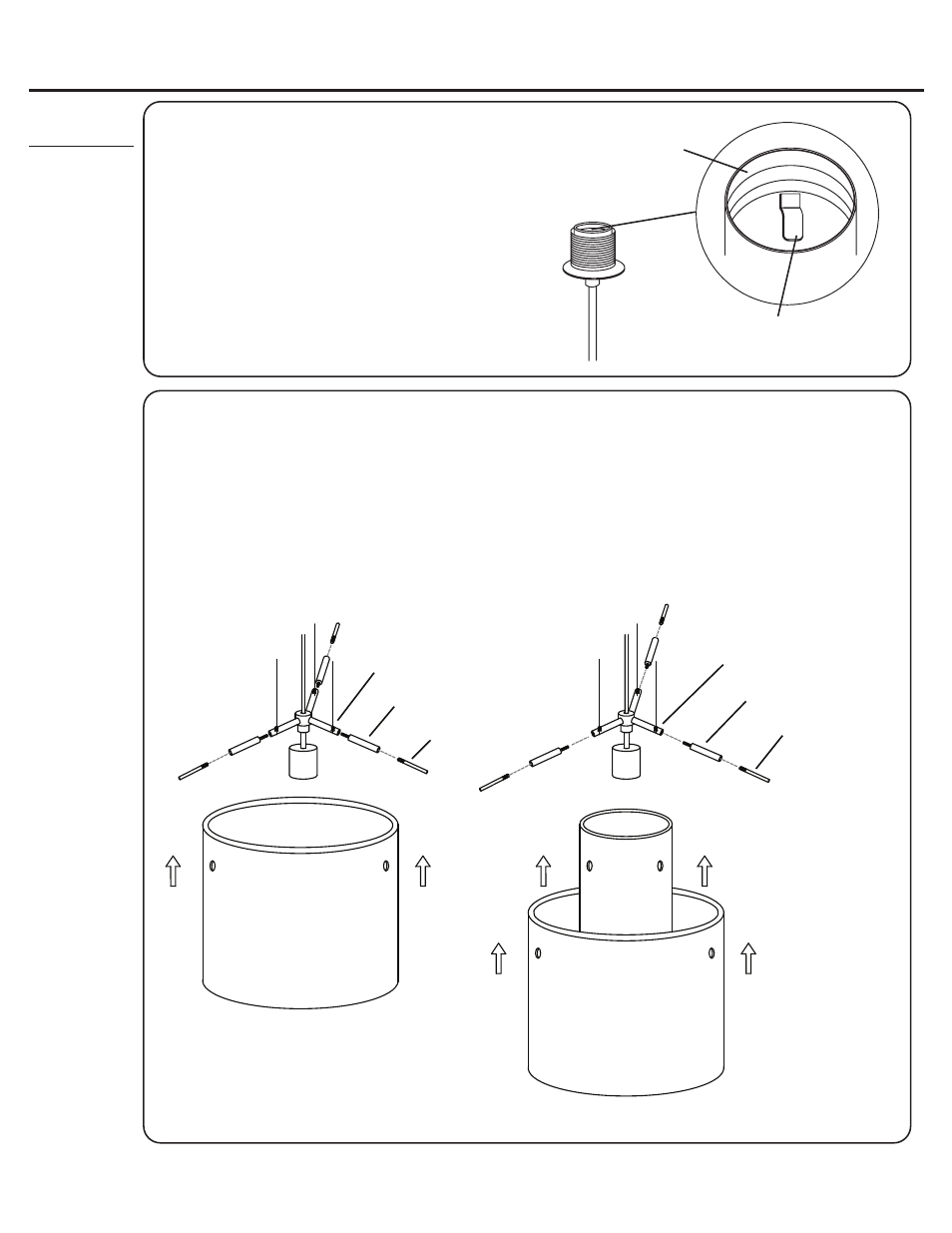

7. For a single Glass Shade luminaire, secure Glass Shade (A), per Left Hand diagram below, using Glass
Holder Rods and Decorative Posts. For a double Glass Shade luminaire, secure Inner Glass Shade
(B) first, per Right Hand diagram below, using the Glass Holder Rods, then secure Outer Glass Shade
(A) using the Decorative Posts. Adjust Glass Holder Rods to ensure proper fit of the Decorative Posts.
8. Install bulb per label on luminaire.
9. Final balance adjustments, if necessary, can then be made by turning the
Thumbscrews located on the top of the mounting bracket.
10. Restore power.
B
A
Decorative Post*
Glass Holder Rod
Glass Holder Rod
Thumbscrew
Thumbscrew
A
Decorative Post*
*-Decorative Posts provided
may vary in appearance,
than as shown
NOTE:
Glass Shade is for instructional purposes.
Actual Glass Shade may vary in size and shape.
