C o n n e c t i n g t h e V e r i f i e r

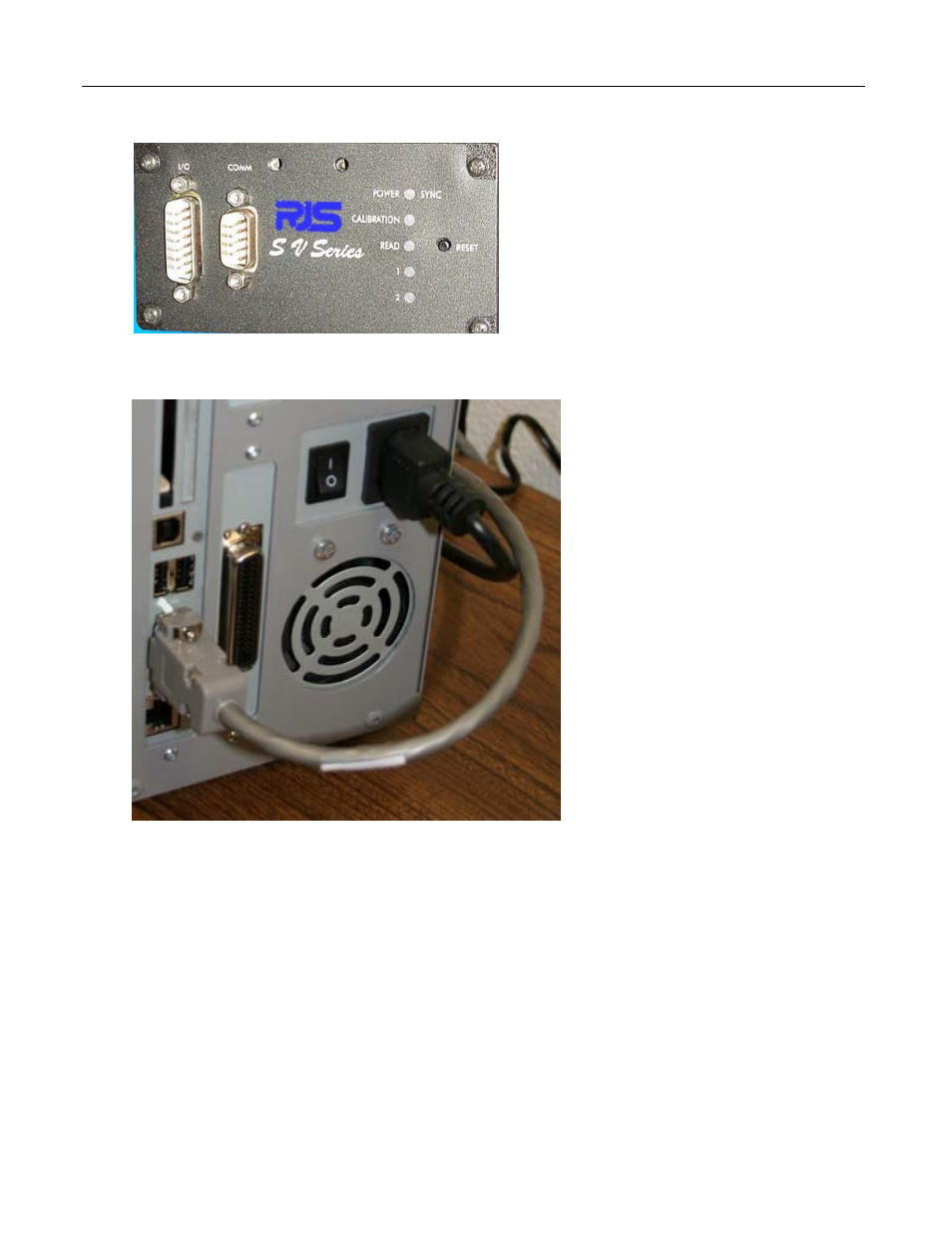

Connect the verifier's DB15 I/O port to the verifier's power supply.

Connect the verifier's DB9 COMM port to either the printer's DB9 COM1 serial port or the
optional DB9 COM2 serial port using a serial cable.

4
