Wood Stove Rear Fan 2 Installation Instructions
99000118
Page 5 of 5 17601791.docx - 5/2/13 © Travis Industries, Inc.
Leyden and Arbor Installation Instructions (Rev 005 or Later – See Note Below)
NOTE: If you have a Leyden or Arbor Rev 004 or earlier (last built in July, 2010), you will need to slide the
included snap disk into the convection chamber behind the flue and route the wire externally to the blower.
The following instructions are for Leyden and Arbor wood stoves with the built in thermodisk (serial # 1110-
009120 or greater for Leyden, serial # 1307-003086 or greater for Arbor).

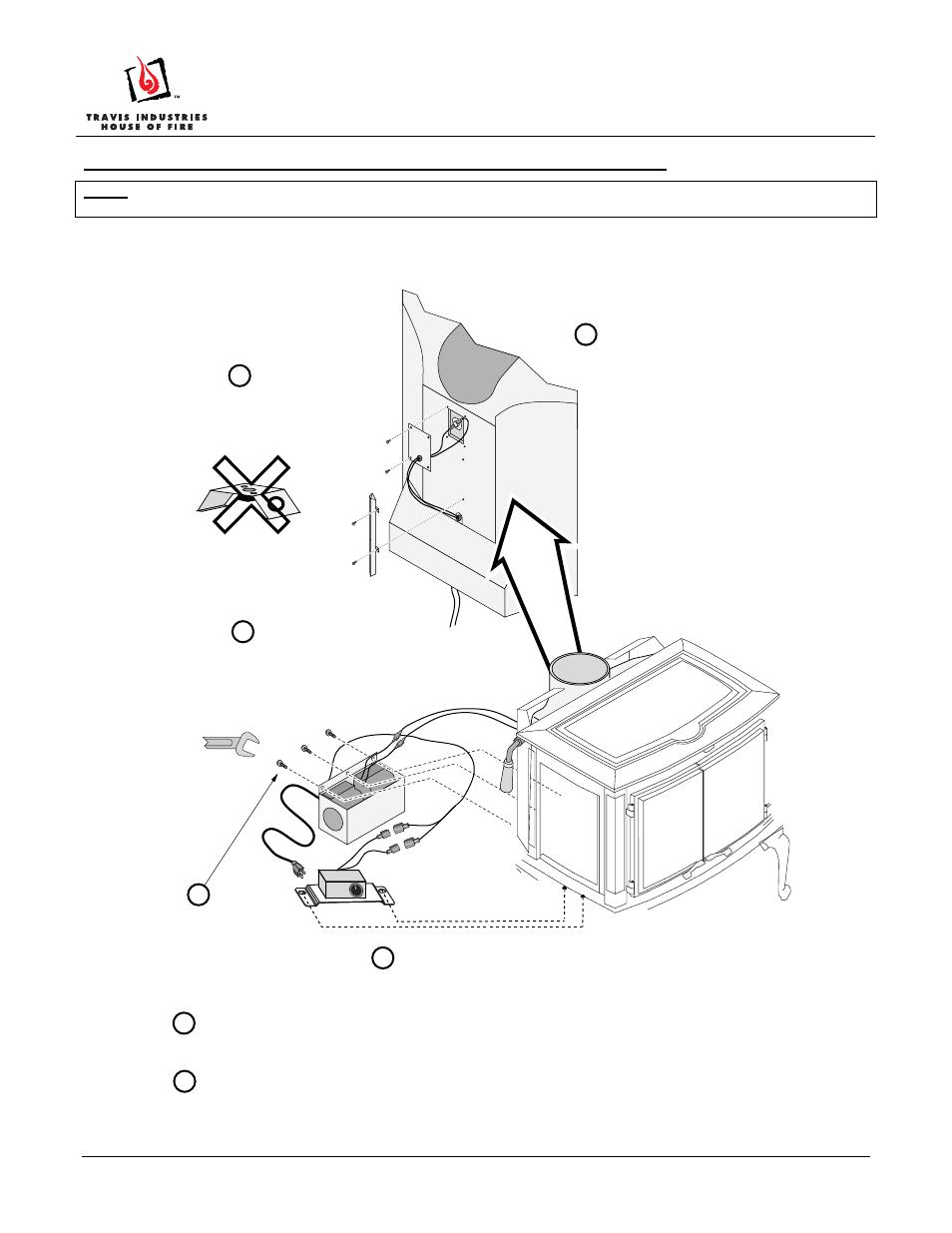

Remove the two cover plates
on the back of the stove.
Route the wires from the
blower through the
convection channel, through
the access holes and attach
to the built-in snap disk as
shown to the left. (NOTE: The
grommets are cut to allow the
Pull the slack out of the
wire and replace the cover
plates to conceal the wiring.
3/8" Wrench
Plug the blower in. Do not route the power cord under or over the stove or in a
location where it may become damaged.
c
With the blower near the rear of the stove, tuck all excess wire into the blower
box, making sure it does not contact any moving parts. Make sure when
installing the blower, these wires do not become loose.
stove with the three screws
included with the blower.
g
a
Place the blower near the
back edge of the stove.
b
Discard the snap disk that is
included with the blower.
f
quick-connects to pass through.)
Attach the blower to the
Attach the rheostat box and rheostat
mounting bracket (upside down) to the
2 bolts located on the underside of the
stove behind the left front leg.
e
d
Use the 2 included M8 bolts to attach the
rheostat bracket (upside down) to the
underside of the stove behind the left
front leg.
