Wood Stove Rear Fan 2 Installation Instructions
99000118
Page 2 of 5 17601791.docx - 5/2/13 © Travis Industries, Inc.

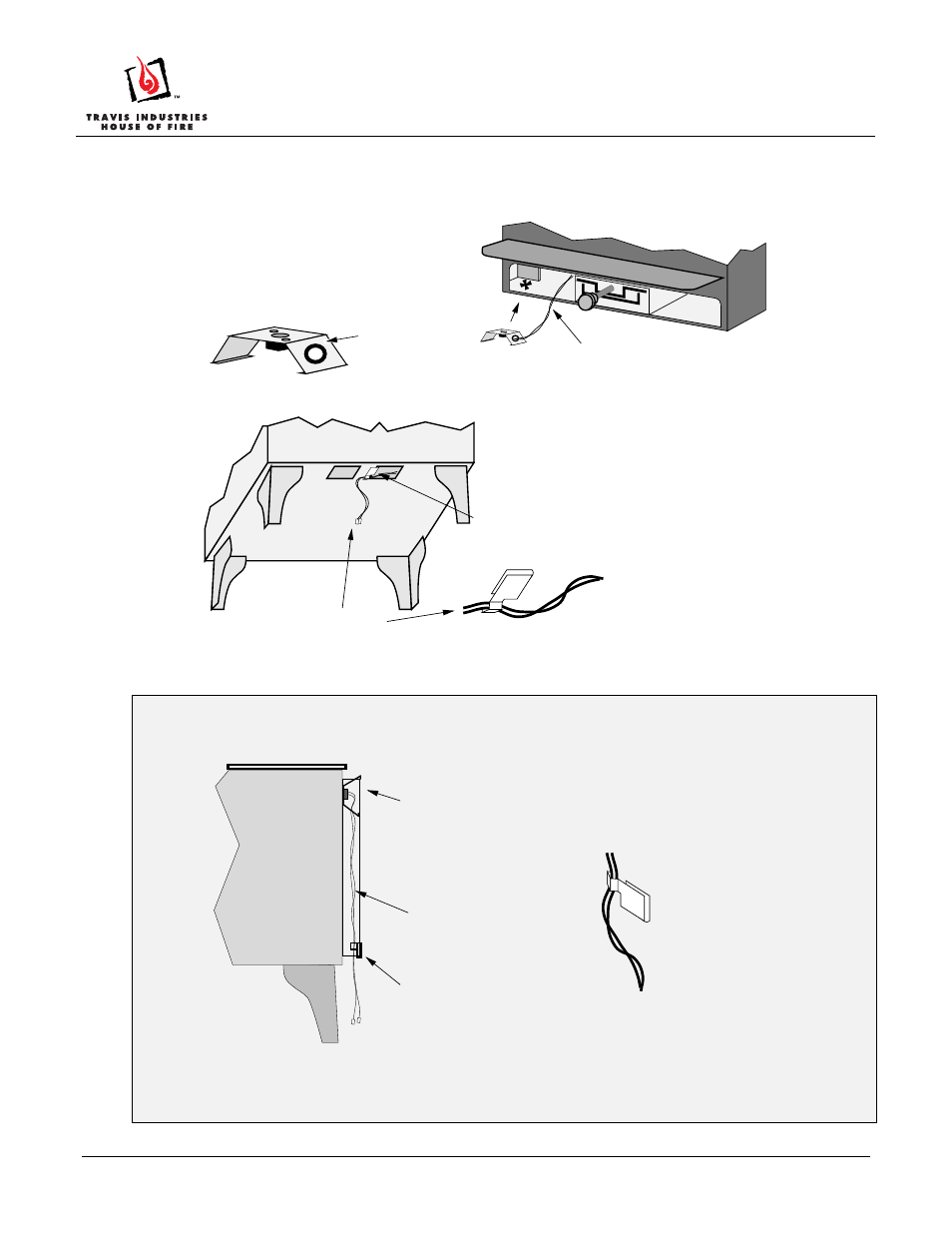

2. Install the snap disk assembly.
NOTE: For the Endeavor and Liberty follow step 2B. For all other models, follow step 2A.
2A Install the snap disk assembly into the left side convection chamber following the directions below.
2A Secure the snap disk wires in place following the directions below. Go to step 3.
NOTE: The wires must be properly secured to prevent them from
contacting the firebox and shorting out the blower circuit.
2B (Liberty, Endeavor only)
Install the snap disk assembly inside the heat shield following the directions below. Secure the snap disk
wires in place following the directions below.
Secure the snap disk wires in place following the directions below.
NOTE: The wires must be properly secured to prevent them from contacting the firebox and
shorting out the blower circuit.
Ashlip
Bend these legs on
the snap disk if it
does not fit tightly
Wedge the snap disk
directly in front of the
stiffener on the left side.
Twist the wires together and feed them
through the convection chamber and
out of the knockout removed in step 1.
Snap Disk
Assembly
Slide the wire clip over the
edge of the strip of metal
between the two knock-outs.
Feed the two snap
disk wires into the
eye of the wire clip.
Then carefully
remove all slack from
the wire, making sure
not to dislodge the
snap disk. Pinch the
eye of the wire clip to
secure the wires.
Wire Clip
Snap Disk
Wires
Hang the snap disk assembly in
the space between the stove
and rear heat shield on the left
side. Bend the legs of the
assembly to ensure a tight fit.
Wire Clip
Feed the two snap
disk wires into the
eye of the wire clip.
Then carefully
remove all slack from
the wire, making sure
not to dislodge the
snap disk. Pinch the
eye of the wire clip to
secure the wires.
Snap Disk Wires
