Avalon Ashpan Operating Instructions
Page 7 of 7
10850 117th Place N.E. Kirkland, WA 98033
Printed September 4, 2008
REPLACING THE ASHPAN
1
Inspect the gasket on top of the ashpan. It must be intact and in place. If it is not, contact your
dealer for a replacement gasket. Swing the ashpan cover so it is behind the ashpan.
2

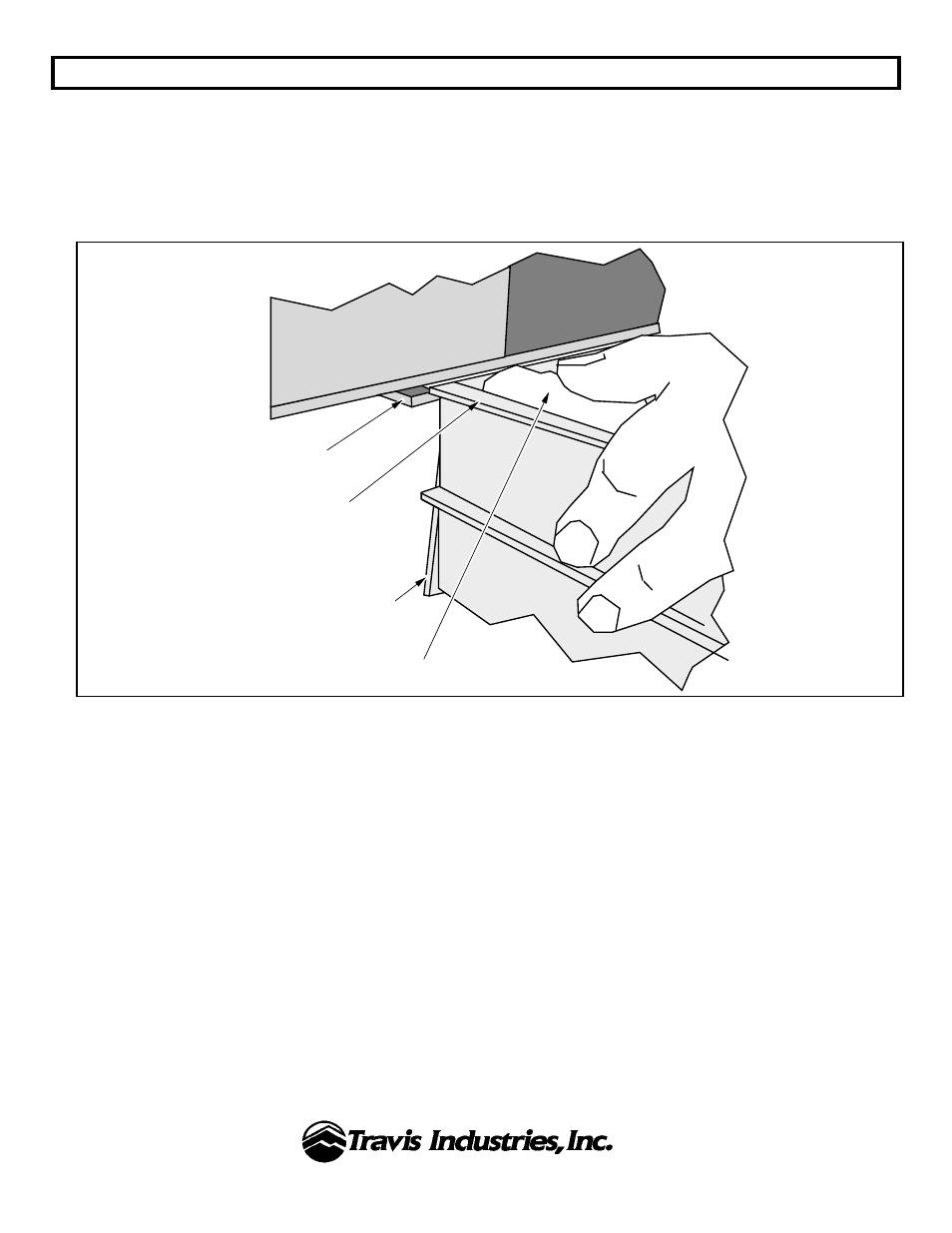

Slide the ashpan with the lid towards the rear into its holder on the pedestal. The ashpan has a rail on
each side that slides over a rail on the pedestal. Slide the ashpan all the way in.
Rail on Pedestal
Rail on Ashpan
Faceplate of Stove
Ashpan
Ashpan Gasket
NOTE: make sure the
lid is facing to the rear.
3
Rotate the handles on both sides of the pedestal forward. The handles, when rotated, compress the
ashpan against the stove and create an air-tight seal between the ashpan and stove. If you do not feel
the handles compress, check alignment of the ashpan.
