Page 44
Hardware Preparation and Installation
RTM-ATCA-7350 Installation and Use (6806800H30G)
44

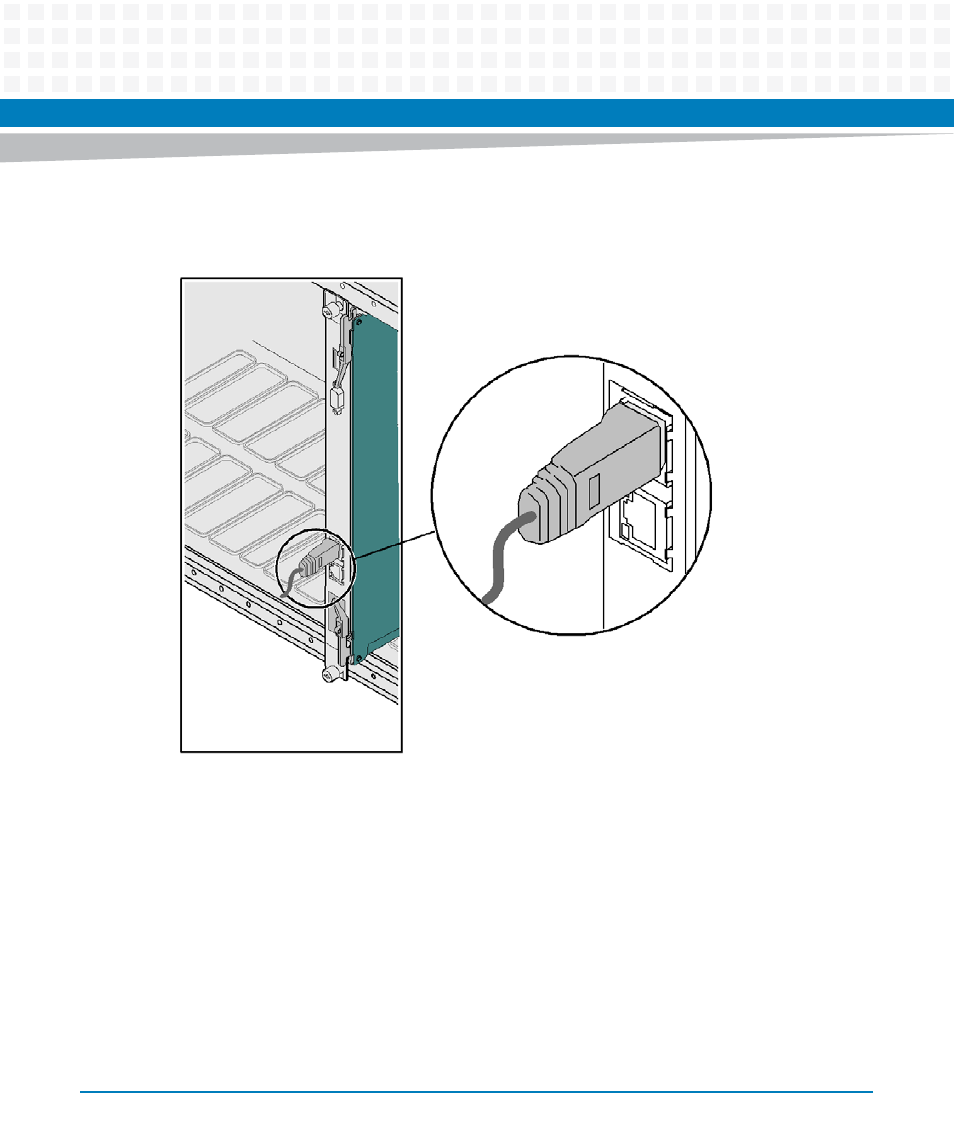

The figure below shows the method of connecting the network cables to RTM-ATCA-7350.
2.8.3
Connecting Optical Fibers
When RTM-ATCA-7350 is configured with the FC daughter card, it provides two external 2G FC
interfaces. Optical fibers are used to connect RTM-ATCA-7350 to the external Storage Area
Network (SAN) storage system. Optical modules for the FC daughter cards must be obtained
separately. Recommended modules are FINISAR FTRJ8519P1BNL-HW, FINISAR
FTRJ8519P2BNL-HW.
Figure 2-8
Connecting the Network Cables to RTM-ATCA-7350
