APPENDIX D
SLM-SERIES DC LOAD GPIB/RS-232
OPERATING FLOW CHART

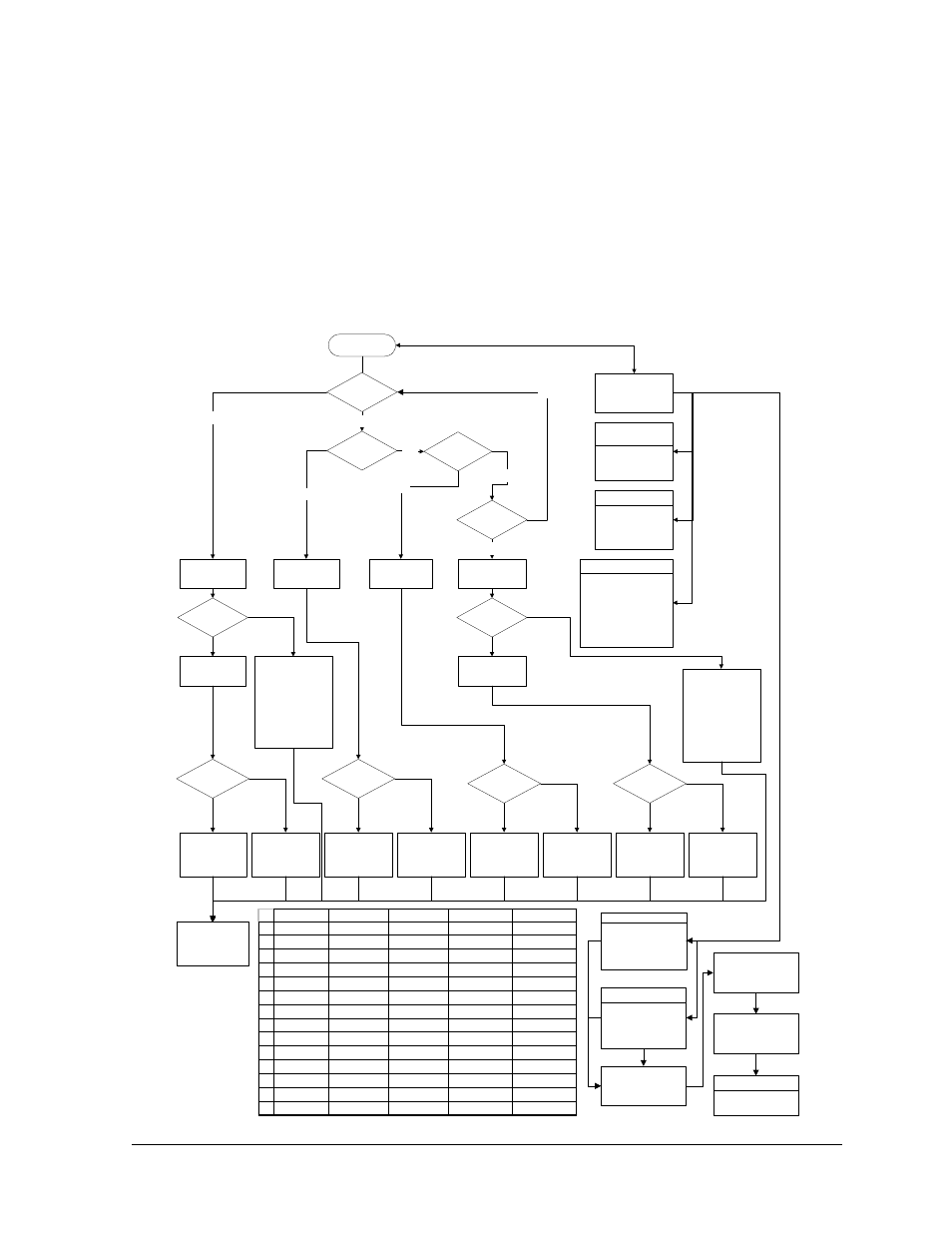

The following flow chart shows the typical SLM Series chassis remote control and load
current level and status setting procedures of each load module.
START
CC MODE?
CR MODE?
CP MODE?
CV MODE?
NO
NO
NO
Set
"MODE CC"
Set
"MODE CP"
Set
"MODE CV"
Set
"MODE CR"
YES
YES
YES
YES
STATIC or
DYNAMIC?
STATIC or
DYNAMIC?
Set
"DYN ON"
"CC:HIGH NR2"
"CC:LOW NR2"
"RISE NR2"
"FALL NR2"
"PERI:HIGH NR2"
"PERI:LOW NR2"
HIGH or
LOW LEVEL?
Set
"DYN OFF"
Set
"LEVE HIGH"
"CC:LOW I"
"CC:HIGH NR2"
Set
"LEVE LOW"
"CC:HIGH L"
"CC:LOW NR2"
HIGH or
LOW LEVEL?
Set
"LEVE HIGH"
"CC:LOW E"
"CC:HIGH NR2"
Set
"LEVE LOW"
"CC:HIGH D"
"CC:LOW NR2"
HIGH or
LOW LEVEL?
Set
"LEVE HIGH"
"CC:LOW G"
"CC:HIGH NR2"
Set
"LEVE LOW"
"CC:HIGH H"
"CC:LOW NR2"
Set
"LEVE HIGH"
"CC:LOW M"
"CC:HIGH NR2"
Set
"LEVE LOW"
"CC:HIGH N"
"CC:LOW NR2"
HIGH or LOW
LEVEL?
Set
"DYN ON"
"CR:HIGH NR2"
"CR:LOW NR2"
"RISE NR2"
"FALL NR2"
"PERI:HIGH NR2"
"PERI:LOW NR2"
LOW
Set
"LOAD ON"
LOW
HIGH
LOW LOW
HIGH HIGH
DYNAMIC DYNAMIC
STATIC STATIC
Set
"DYN OFF"
S LM -60-15-75 S LM -60-30-150 S LM -60-60-300 S LM -250-10-300 S LM -500-10-300
A 1.5 3.0 6.0 1.0 1.0
B 4.0 2.0 1.0 25.0 50.0
C 4.0 2.0 1.0 25.0 50.0
D 15000 8000 4000 20000 12500
E 0.2 0.1 0.1 1.3 2.5
F 4.0 2.0 1.0 25.0 50.0
G 0.0 0.0 0.0 0.0 0.0
H 60.0 60.0 60.0 250.0 500.0
I 0.0 0.0 0.0 0.0 0.0
J 1.5 3.0 6.0 1.0 1.0
K 0.0 0.0 0.0 0.0 0.0
L 15.0 30.0 60.0 10.0 10.0
M 0.0 0.0 0.0 0.0 0.0
N 75.0 150.0 300.0 300.0 300.0
HIGH
Module Setups
Load On/Off
Voltage
Set
"LDONV NR2"
"LDOFV NR2"
Vsense
Set
"SENS ON|OFF"
Good/No Good
Set
"NG ON|OFF"
"LIM:CURR:HIGH NR2"
"LIM:CURR:LOW NR2"
"LIM:VOLT:HIGH NR2"
"LIM:VOLT:LOW NR2"
OCP Setup
Set
"OCP:START NR2"
"OCP:STOP NR2"
"OCP:STEP NR2" Set Test Mode
"TCONFIG nor/OCP/
OPP"
OPP Setup
Set
"OPP:START NR2"
"OPP:STOP NR2"
"OPP:STEP NR2"
Store Setup
"STOR m,n"
Run OCP/OPP Test
"REC m,n"
Set Threshold for
OCP/OPP Test
"VTH NR2"
REM
Remote Indicator
on Front Panel
NO
M540070-01 Rev B D-1
