3.7 REMOTE SHUTDOWN (S/D)
A remote +12 VDC voltage can be connected externally between terminals J1-
18 (S/D Fault) and J1-24 (COM) to disable, i.e., shut down the output of the
power supply. Disabling or opening the +12 VDC signal will allow the unit to
revert to normal operation.

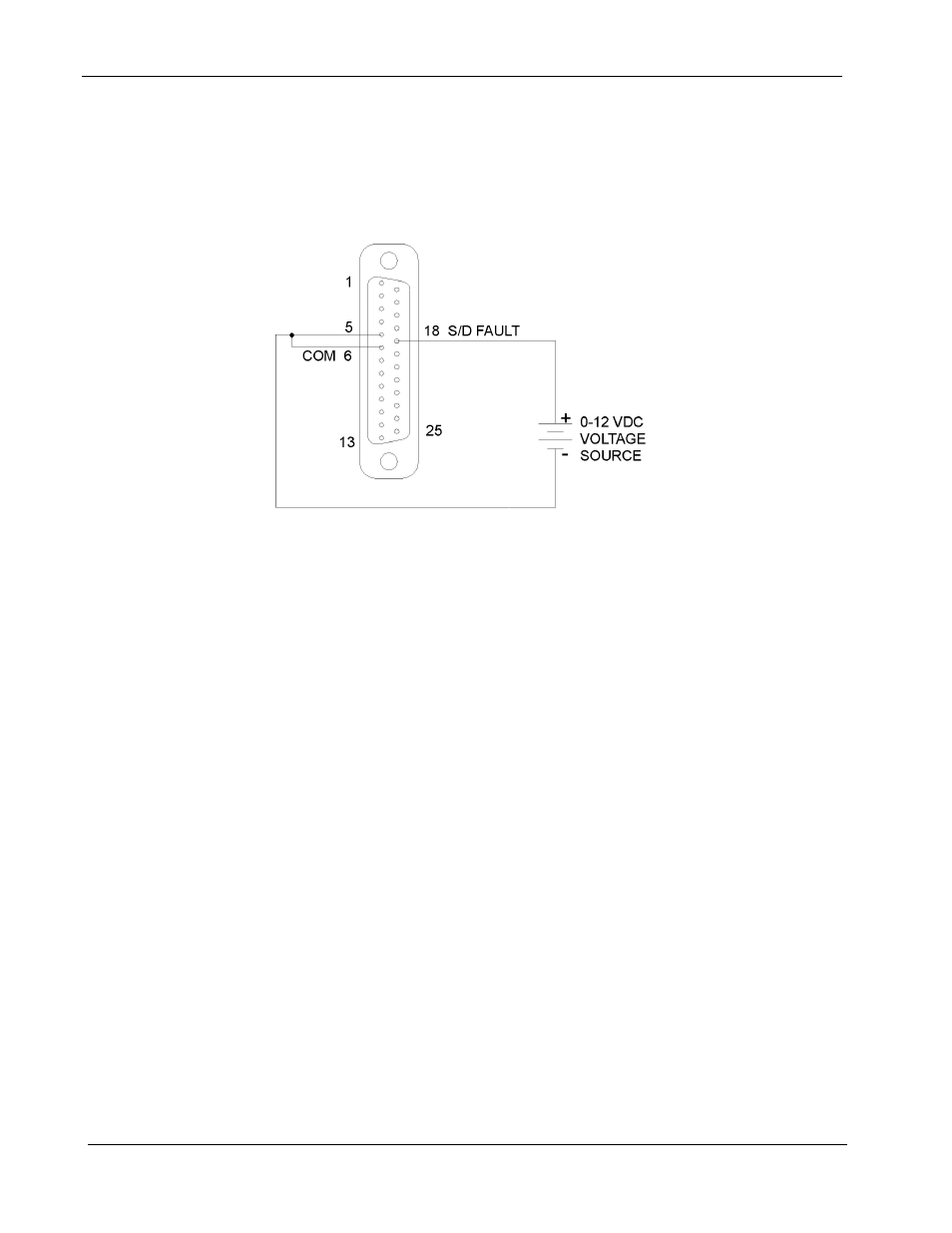

Figure 3–12. Remote Shutdown Using DC Voltage Source
3.8 MASTER/SLAVE OPERATION
The following modes of operation are used for applications requiring more
current or voltage than is available from a single power supply. To meet the
requirements for greater output voltage or current, up to five supplies may be
connected in parallel.
3.8.1 P
ARALLEL
O
PERATION
In the parallel mode of operation, a master/slave configuration is established.
Up to five power supplies may be paralleled using this configuration. To set up
the parallel mode of operation, connect the interface cable (P/N 890-453-03)
from the master unit to the slave unit(s), as shown below in Figure 3–13. Next
connect the positive outputs of supplies together and the negative outputs of the
supplies together. It is recommended that the outputs are connected together
as close to the load as practical.
