9.6. Router-NAT

This task allows the testing of the router

’s functions.

A. Set

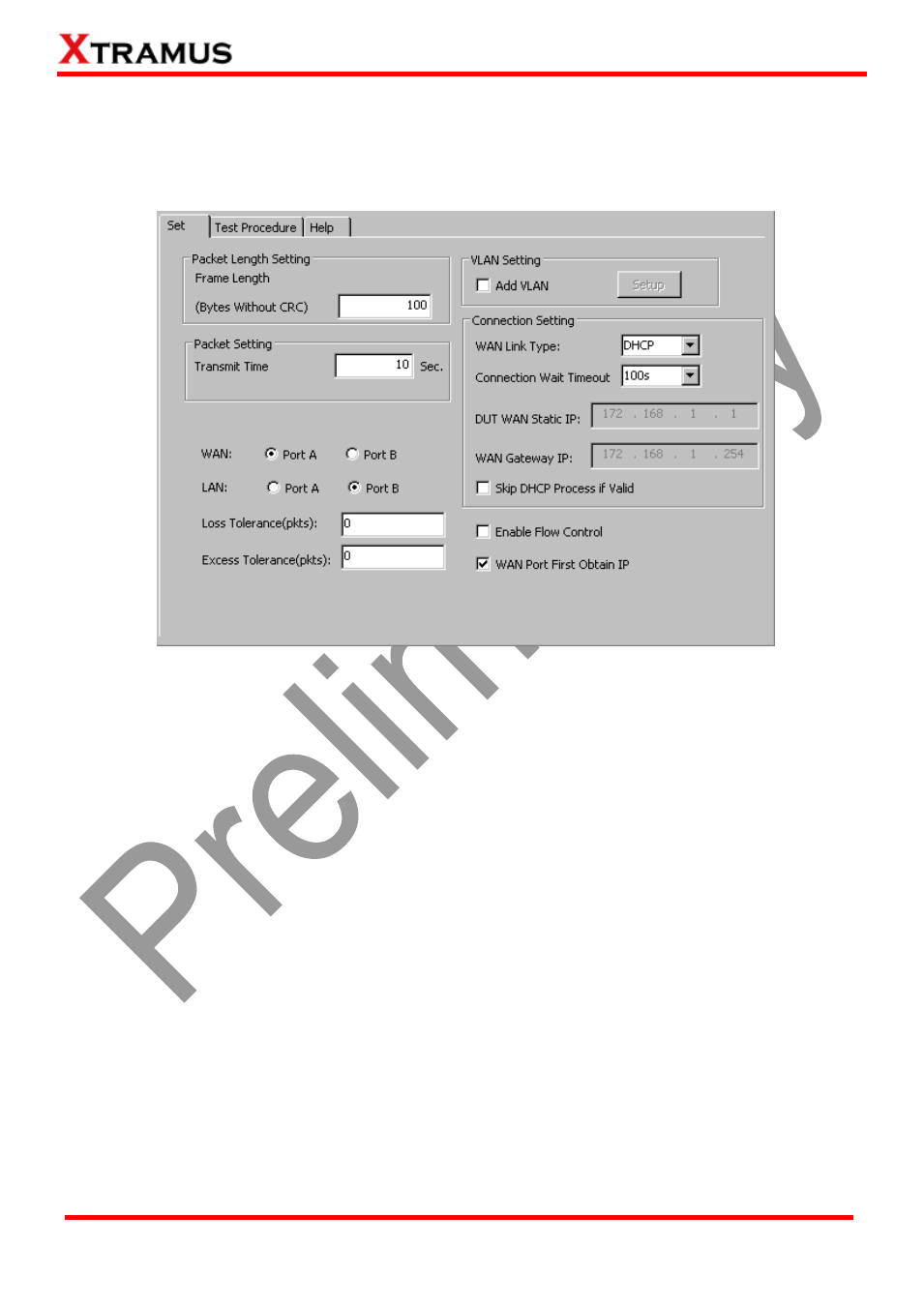

Packet Length Setting: As shown in the figure down below, in a standard Ethernet II frame, the

Frame Length can be from 64~1518 bytes. By clicking the Frame Length scroll-down menu, you

can set the frame length to random (frame length will be randomly assigned from 64~1518 bytes)

or fixed (frame length will be a fixed number). If you choose fixed as your Frame Length, you can

set the frame length in the field down below.

Packet Setting: The system will transmit packet during the set amount of time.
VLAN Setting: Add VLAN tag for test. VLAN (Virtual LAN) is a group of hosts with common

requirements that communicate within the same Broadcast domain regardless of the physical

location. By clicking the Setup button, you can configure CoS (class of service) and VID (VLAN ID)

on the pop-up VLAN Setup window. Click Apply

and apply all the changes you’ve made here.

Connection Setting: You can set the basic connection setting here.

WAN Link Type: Scroll down to choose between DHCP or Static IP.

Connection Wait Timeout: Scroll down to choose the value in seconds.

DUT WAN Static IP: Set the WAN IP of your DUT (Device Under Test).

WAN Gateway IP: You can set the WAN gateway IP in this field.

Skip DHCP Process if Valid: enable this function to allow the system to skip DHCP process.

WAN: You can choose between Port A or Port B to be the WAN port.
LAN: You can choose between Port A or Port B to be the LAN port.
Loss Tolerance(pkts): You can set the value of tolerance for losing packets.
