Section 2

OIL FEED ASSEMBLY

Disconnect the factory oil pressure sending

unit wire harness from the sending unit.

Remove and set aside the factory oil pres-

sure sender located on the passenger of the

engine. Using the supplied fitting install the

short 1" nipple into the side of the supplied

TEE fitting.

*** NOTE ***

Do not use Teflon paste or Teflon tape on this fitting

as it may clog the supercharger oil jet and lead to

premature supercharger failure.

Install the supplied TEE fitting into the

location were the factory sending unit was

originally located. With the supplied TEE

fitting installed and the outlets facing up and

down install the factory sending unit into

the outlet of the tee that is facing up. Install

the supplied 1/8" NPT x –4 x 90º fitting into

the outlet that is facing down and orientate

the supplied 90º fitting to face to the passen-

ger side of the vehicle. (See Fig. 2-a.)

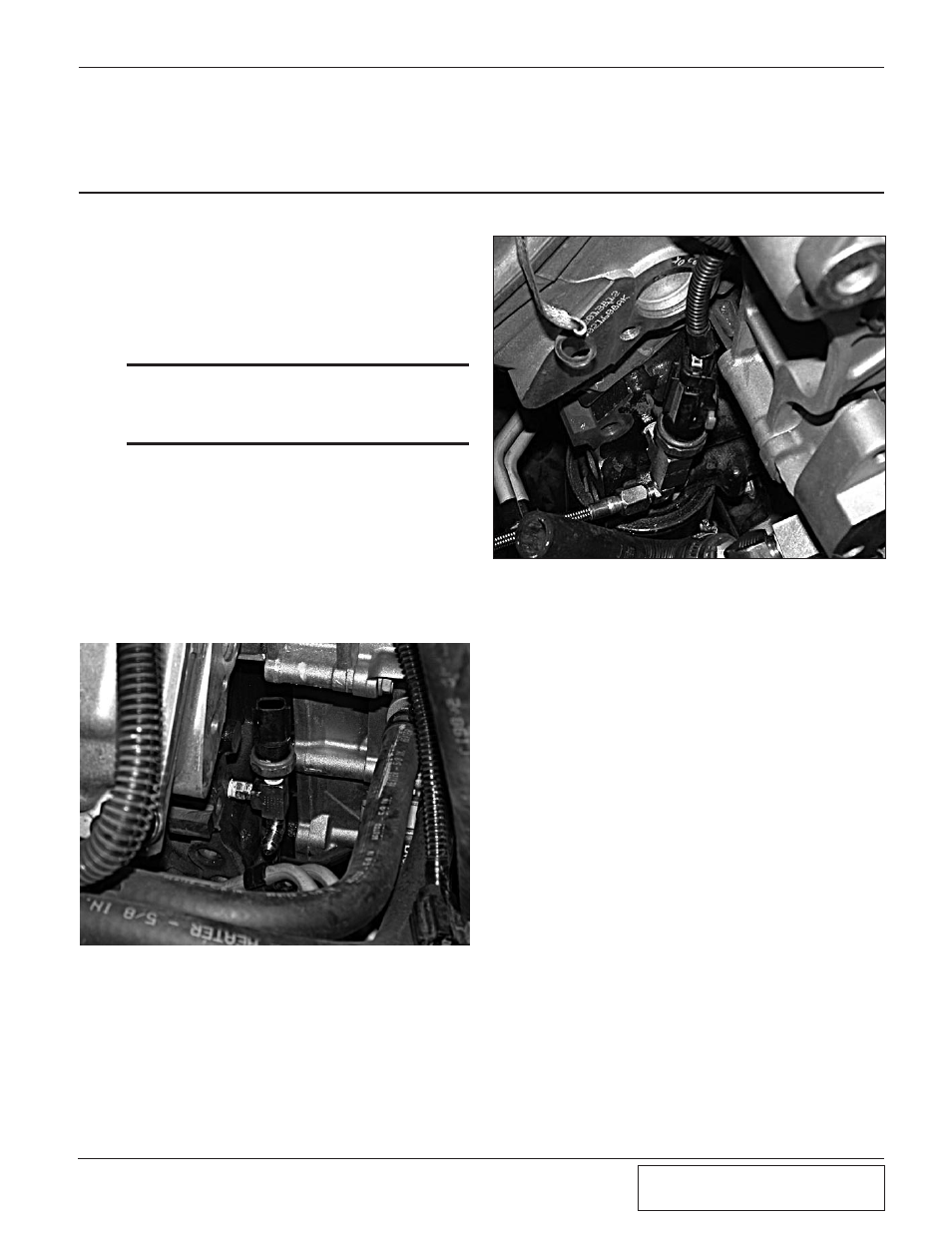

Fig. 2-a

2. OIL FEED ASSEMBLY

Fig. 2-b

Install the straight portion of the supplied

steel braided –4 hose to the 90º fitting. The

90º end will attach to the supercharger oil jet

in a later step.

Reattach the oil pressure sending unit wire

harness. (See Fig. 2-b.)

OIL FEED ASSEMBLY
