q w
Q4 Q5
e r t y
Q4
u i
o Q0 Q1 Q2 Q3
Q6 Q7 Q6
q RS-232C connector ····································· (19)
w REMOTE CONTROL jacks··························· (19)
e TRIGGER OUT jacks ··································· (19)
r DOCK CONTROL jack ································· (14)
t Speaker terminals (SPEAKERS) ·················· (9)
y SIGNAL GND terminal ······························· (13)
u AC inlet (AC IN) ··········································· (20)
i AC OUTLETS ··············································· (20)
o Digital audio connectors
(OPTICAL / COAXIAL) ·························· (12, 15)
Q0 COMPONENT VIDEO connectors ·············· (12)
Q1 XM connector (SAT TU) ······························ (18)
Q2 HDMI connectors ·········································(11)
Q3 VIDEO / S-VIDEO connectors ···················· (12)
Q4 Analog audio connectors (AUDIO) ············ (12)
Q5 FM/AM antenna terminals
(TUNER ANTENNA) ···································· (18)
Q6 PRE OUT connectors ····························· (17, 19)
Q7 EXT. IN connectors ····································· (17)

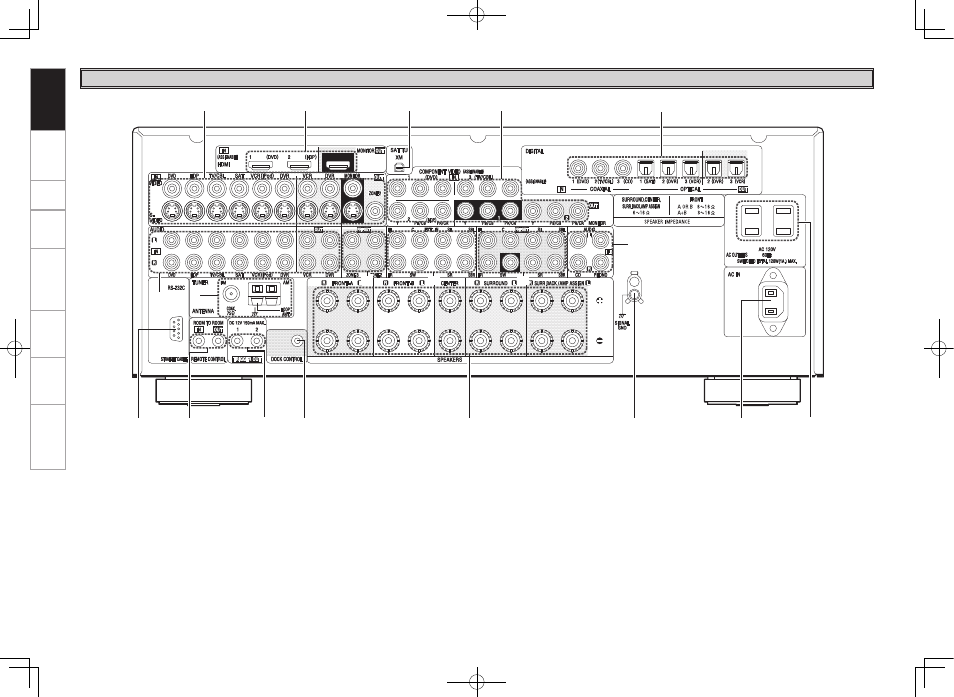

Rear Panel
