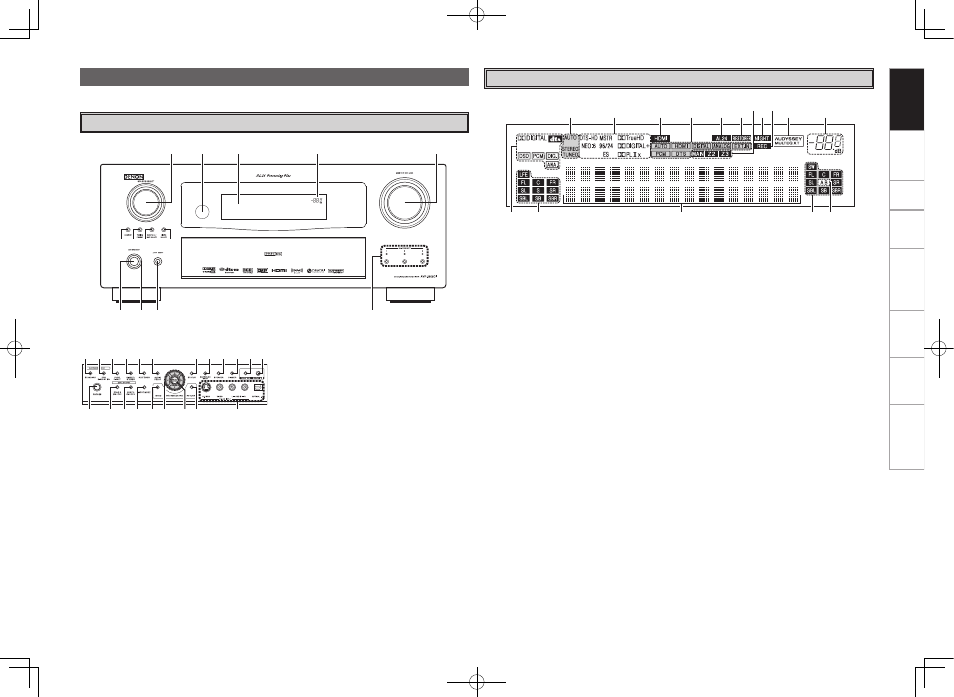

For buttons not explained here, see the page indicated in parentheses ( ).
q w e r
t o i u y
Q0 Q1 Q2 Q3
q Power operation button
(ON/STANDBY) ··········································· (43)
w Power indicator ··········································· (43)
e Power switch (hON jOFF) ····················· (43)
r QUICK SELECT buttons / indicators ········· (50)
t MASTER VOLUME control knob ················ (43)
y Master volume indicator
u Display
i Remote control sensor ································· (3)
o SOURCE SELECT knob······························· (43)
Q0 SOURCE button ·········································· (43)
Q1 TUNING PRESET button ···························· (44)
Q2 ZONE2/3 / REC SELECT button ·········· (49, 60)
Q3 VIDEO SELECT button ······························· (35)
Q4 Headphones jack (PHONES) ······················ (43)
Q5 ZONE2 ON/OFF button ······························ (60)
Q6 ZONE3 ON/OFF button ······························ (60)
Q7 INPUT MODE button ·································· (34)
Q8 MENU button ·············································· (20)
Q9 Cursor buttons (uio p) ·························· (20)
W0 CH SEL / ENTER button ······················· (20, 50)
W1 RETURN button ·········································· (20)
W2 V.AUX INPUT connectors ··························· (17)
W3 SETUP MIC jack ·········································· (23)
W4 ROOM EQ button ········································ (40)
W5 DIMMER button ·········································· (32)
W6 SPEAKER button ········································· (43)
W7 SURROUND BACK button ························· (40)
W8 STATUS button ··········································· (42)
W9 AUDIO DELAY button ································· (41)
E0 RESTORER button ······································ (41)
E1 DIRECT/STEREO button····························· (37)
E2 PURE DIRECT button ·································· (38)
E3 DSP SIMULATION button ·························· (37)
E4 STANDARD button ····································· (36)
t
y Q5 Q6 u o
i Q0
Q1 Q2 Q3 Q4
w q e r
q Input signal indicators
w Input signal channel indicators
These light when digital signals are input.
e Information display
The input source name, surround mode, setting
values and other information are displayed here.
r Output signal channel indicators
t Front speaker indicator
These light according to the settings of the front
A and B speakers.
y Master volume indicator
u AUDYSSEY MULTEQ XT indicator
This lights when the room equalizer is selected.
i Recording output source indicator
This lights when the REC OUT mode is
selected.
o NIGHT indicator
This lights when the night mode is selected.
Q0 Multi-zone indicators
These light when the power for the respective
zone is turned on.
Q1 RESTORER indicator
This lights when the RESTORER mode is
selected.
Q2 AL24 indicator
This lights when AL24 Processing Plus is
activated (vpage 63).
Q3 Input mode indicators
Q4 HDMI indicator
This lights when playing using HDMI
connections.
Q5 Decoder indicators
These light when the respective decoders are
operating.
Q6 Tuner reception mode indicators
These light according to the reception conditions
when the input source is set to “TUNER”.
• AUTO
These light when in the auto tuning mode.
• STEREO
In the FM mode, these light when receiving
analog stereo broadcasts.
• TUNED
Lights when the broadcast is properly tuned in.
