G Flow of video signals for ZONE2H
• This function automatically converts various formats of video signals input to the AVR-2808CI into the
format used to output the video signals from the AVR-2808CI to a monitor.
• The AVR-2808CI’s video input/output circuitry is compatible with the following four types of video
signals:
Digital video signals: HDMI
Analog video signals: Component video, S-Video and Video
Video Conversion Function

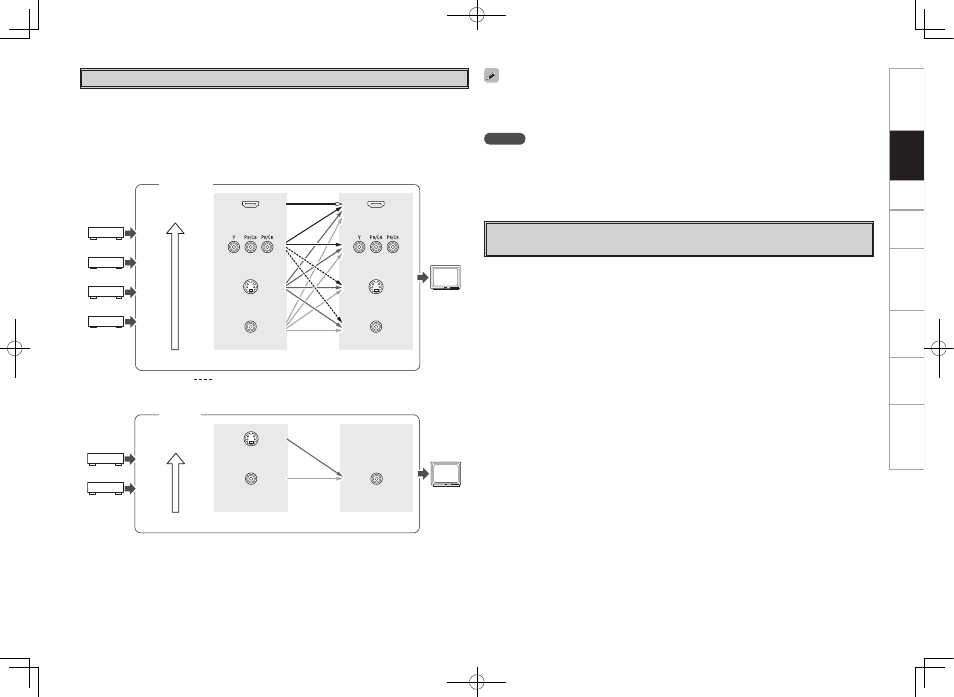

G Flow of video signals inside the AVR-2808CIH
Main zone
High picture
quality playback HDMI connector
Component video
connectors
S-Video connector
Video connector
Monitor
HDMI connector
Component video
connectors
S-Video connector
Video connector
Video inputs Video outputs
: When 480i/576i signals are input in the main zone
S-Video connector
Video connector Video connector
Video inputs Video outputs
ZONE2
NOTE
• HDMI signals cannot be converted into analog signals.
• 1080p component input video signals cannot be output to anything other than component video
connectors.
• 480p/576p, 1080i and 720p component video input signals cannot be converted into S-Video or Video
format.
• When not using this function, connect a monitor output with the same type of connector as the video
input connector.
• The resolution of the HDMI input-compatible monitor connected to the AVR-2808CI can be checked at
menu “Information” – “HDMI Signal Information” – “HDMI Monitor Information” (vpage 42).
High picture
quality playback ZONE2
monitor
Get
ting Star
ted
Connections
Set
up
Pla
ybac
k
Remot
e Contr
ol
Multi-Zone
Inf
or
mation
Tr
oubleshooting
• When viewing HDMI or component video signals via the AVR-2808CI, the on-screen display appears
when the MENU button or the main remote control unit´s PARA button is operated.
• When only HDMI or component video signals are input to the AVR-2808CI, the characters of the on-
screen display are not displayed over the picture.
On-Screen Display for Component Video Outputs and HDMI
Output
