KBC Networks MPEG4 Decoder - Manual (Page 6)

Decoder User Manual
Manual-MPEG4_DECA-Rev1206
Copyright © KBC Networks 2011
Page 6 of 29 www.kbcnetworks.com
2 Installation
2.1 Package Contents
 One KBC Decoder
 One 12Vdc, 1500mA PSU
 Quick Start Guide
Consult the Quick Start Guide for the exact list of components for the particular part
number ordered. Please contact you dealer or distributor if a part is missing or
damaged within 10 days of receiving the products.

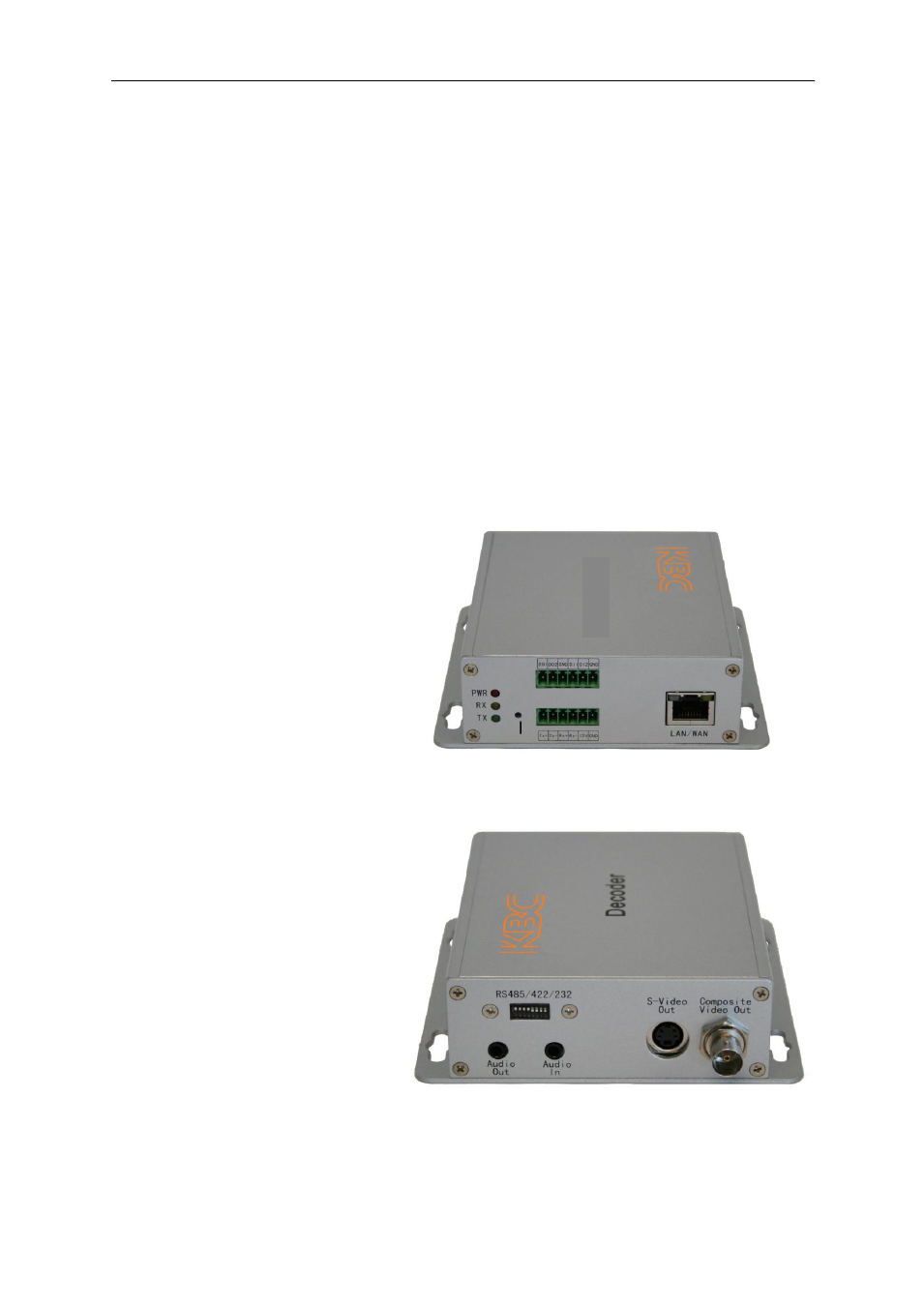

2.2 Physical Connections and Description
2.2.1 Front View
2.2.2 Rear View
1. Power LED
2. Data RX LED
LED should only flash if receiving data from
connected data device. A solid RX LED
denotes a wiring error.
3. Data TX LED
LED should flash when transmitting data to
connected data device.
4. Reset to Default Configurations Button
(See section 2.2.3.1 for instruction and
results description)
5. DO1 and DO2 Alarm Input/Output
6. DI1 and DI2 Alarm Input/Output
7. RS Data Block
8. DC Voltage In
9. LAN/WAN Port, RJ-45 10/100Mbps
1. RS Data Selector Switch
Default Configuration: RS-485/422
2. Audio Out Mic/Speaker Jack
3. Audio In Mic/Speaker Jack
4. S-Video Out Y/C
Video loop out from Video In source
5. Composite Video Out BNC
1
2
3
4
5 6
7 8
9
1
2 3
4
5
D
ec
o
d
er
