2.3 D12 Boot screen
D12 V 2.xx
D12 d&b
audiotechnik

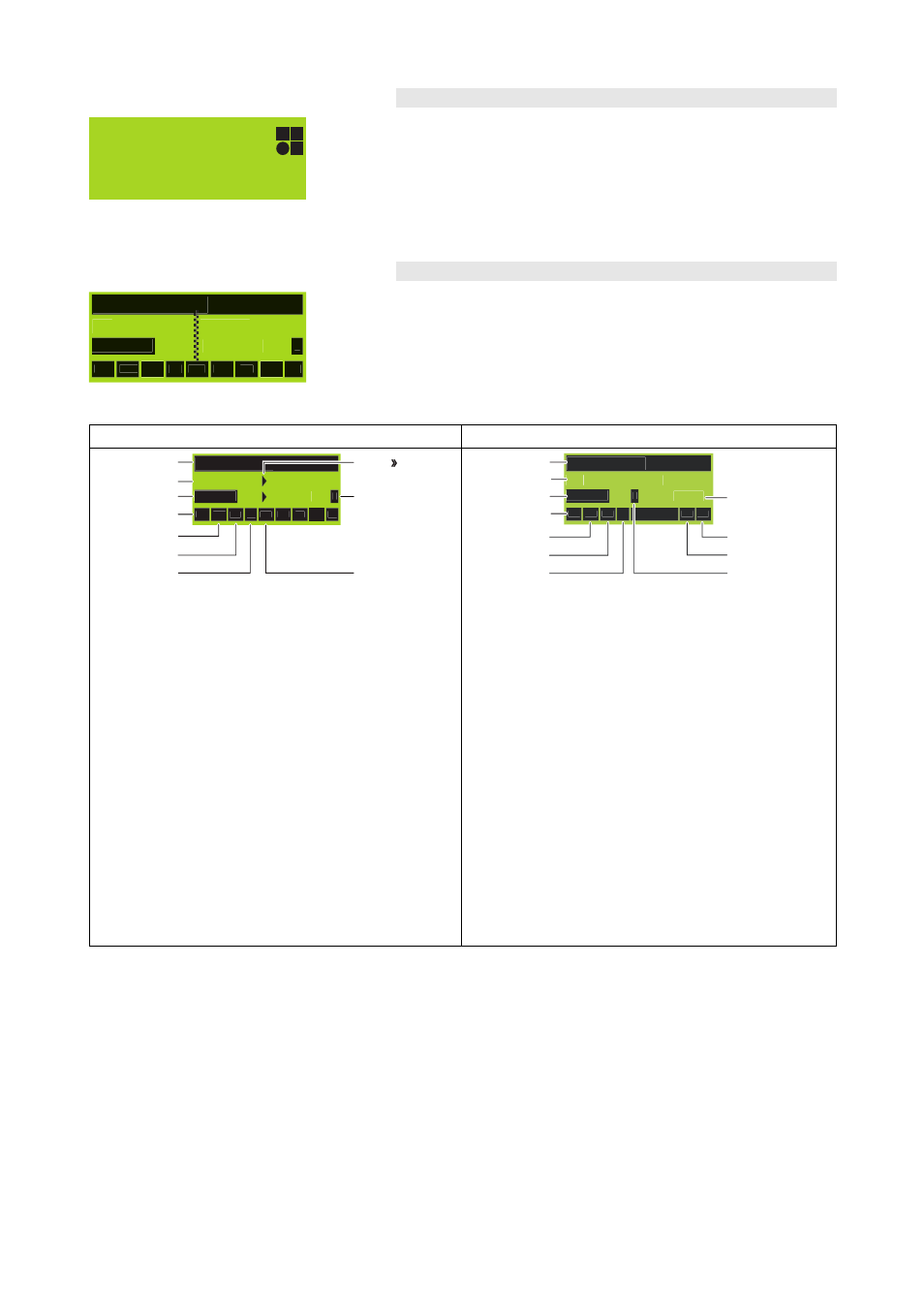

Fig. 1: D12 Boot screen
The boot procedure takes approximately 4 seconds during which the
device name, the manufacturer's name (d&b audiotechnik) and the
firmware version are displayed.
The transition to the Main screen is carried out automatically.
2.4 D12 Main screen
D12 Stage right
Q7
-3.0dB -3.0dB
CUT HFA EQ 0.01 CSA EQ
Q-SUB
+0.0dB D
100
Fig. 2: D12 Main screen
The main screen displays all important settings and status information in
one view.
In the first line the device name is displayed. If no device name has been
entered, the firmware version is displayed.
Depending on the selected output mode there are two different main
screens as described in the table below.
Dual channel or Mix Top/Sub mode 2-Way Active mode
D12 Stage right
Q7
-3.0dB -3.0dB
CUT HFA EQ 0.01 CSA EQ
Q-SUB
+0.0dB D
100 C+1 Filter_1
Filter_2
Filter_3
Level
Speaker
Device Name
EQ Master on
Delay on
Remote mode
Link A B
indication
Fig. 3: D12 Main screen in Dual channel / Mix Top/Sub
mode
Starting from the second line the main menu of the D12
in Dual channel or Mix Top/Sub mode is split into
channel A and B and the following settings and
information are displayed:
Loudspeaker setups (Speaker type) and input gain, status
of the delay and Link A»B.
The lowest line shows the status or value of the following
settings for both channels: Filter_1, Filter_2, Filter_3
(value), EQ. In the center of this status line the dbCAN-Id
(if remote mode dbCAN is selected) or the remote mode
(if not dbCAN) is displayed. Please refer to the Remote
menu section on page 21.
Using the encoder (LEVEL/PUSH MENU) the input gain
can be adjusted in steps of 0.5 dB (–57.5 dB to +6 dB).
A brief press on the encoder changes between level
control of channel A and B
D12 Stage right
J12
-3.0dB -3.0dB
HFC LFC EQ 0.01
Active
0.3ms D
CAN C- 5
Filter_1
Filter_2
Filter_3
Level
Speaker
Device Name
EQ Master on Delay on
Delay time
Remote mode
dbCAN Id
Fig. 4: D12 Main screen in 2-Way Active mode
Starting from the second line the main menu of the D12
in 2-Way Active mode is split in two sections and the
following settings and information are displayed:
Loudspeaker set up and input gain, the selected output
mode (Active) the status and value of the delay. If the
delay is switched off the initial delay time of 0.3 ms is
displayed.
Starting from the left the lower line shows the status or
value of the following settings: Filter_1, Filter_2, Filter_3
(value), EQ. On the right hand side of this status line the
remote mode (if selected) and the dbCAN-Id (if remote
mode dbCAN is selected) is displayed. Please refer to the
Remote menu section on page 21.
Using the encoder (LEVEL/PUSH MENU) the input gain
can be adjusted in steps of 0.5 dB (–57.5 dB to +6 dB).
Tab. 1: Main screen depending on output modes
If an error occurs (the red OVL/Err-LED flashes), an error message with
channel information will alternate with the device name in the top line of
the LCD.
In Standby Mode, the display alternates between the device name and
"Standby".
