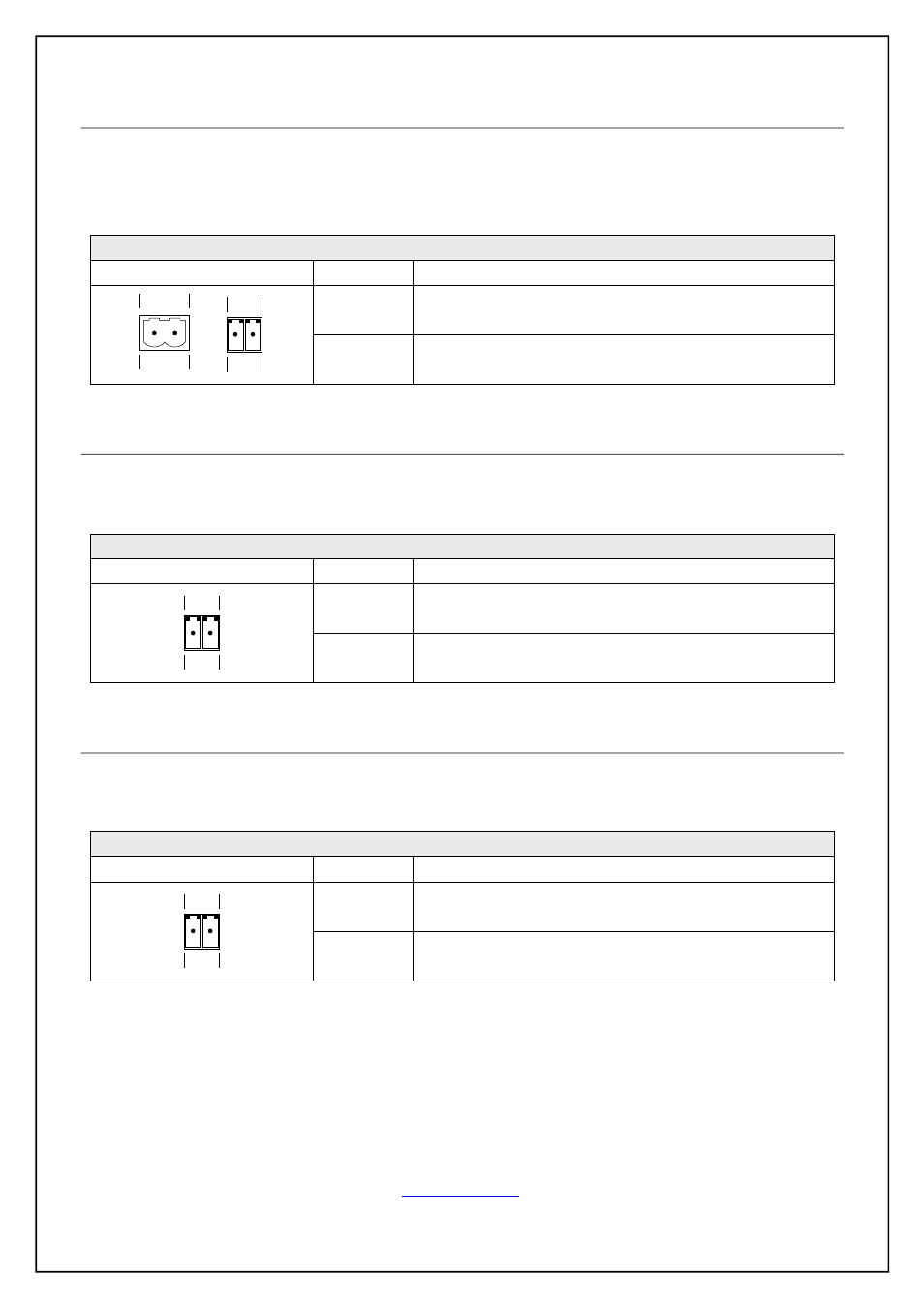

CUE ipCUE - Manual (Page 17)

7.2. PWR IN
Warning: Use any ipCUE controller only with the power adapter supplied in the product package. Using
another power supply may damage the unit.
Connector pin out
7.3. OUT 5 V
Applicable for ipCUE-alpha, ipCUE-beta, ipCUE-delta, ipCUE-epsilon, ipCUE-sigma.
Not applicable for ipCUE-gamma.
Connector pin out
7.4. OUT 12 V
Applicable for ipCUE-sigma. Not applicable for ipCUE-alpha, ipCUE-beta, ipCUE-gamma, ipCUE-delta, ipCUE-
epsilon.
Connector pin out
User Manual ipCUE Controllers
www.cuesystem.com
Page 17 of 52
Pin 2-pin 5 mm or 3.5 mm
PWR IN
Description
G Ground
+24 Power +24 VDC
+24 G
+ G
OUT 5 V
Pin
+
Description
Output +5 VDC, max. 1 A
2-pin 3.5 mm
G Ground
+ G
OUT 12 V
Pin
+12
Description
Output +12 VDC, max. 800 mA
2-pin 3.5 mm
G Ground
+12 G
