3. Projecting an Image (Basic Operation)

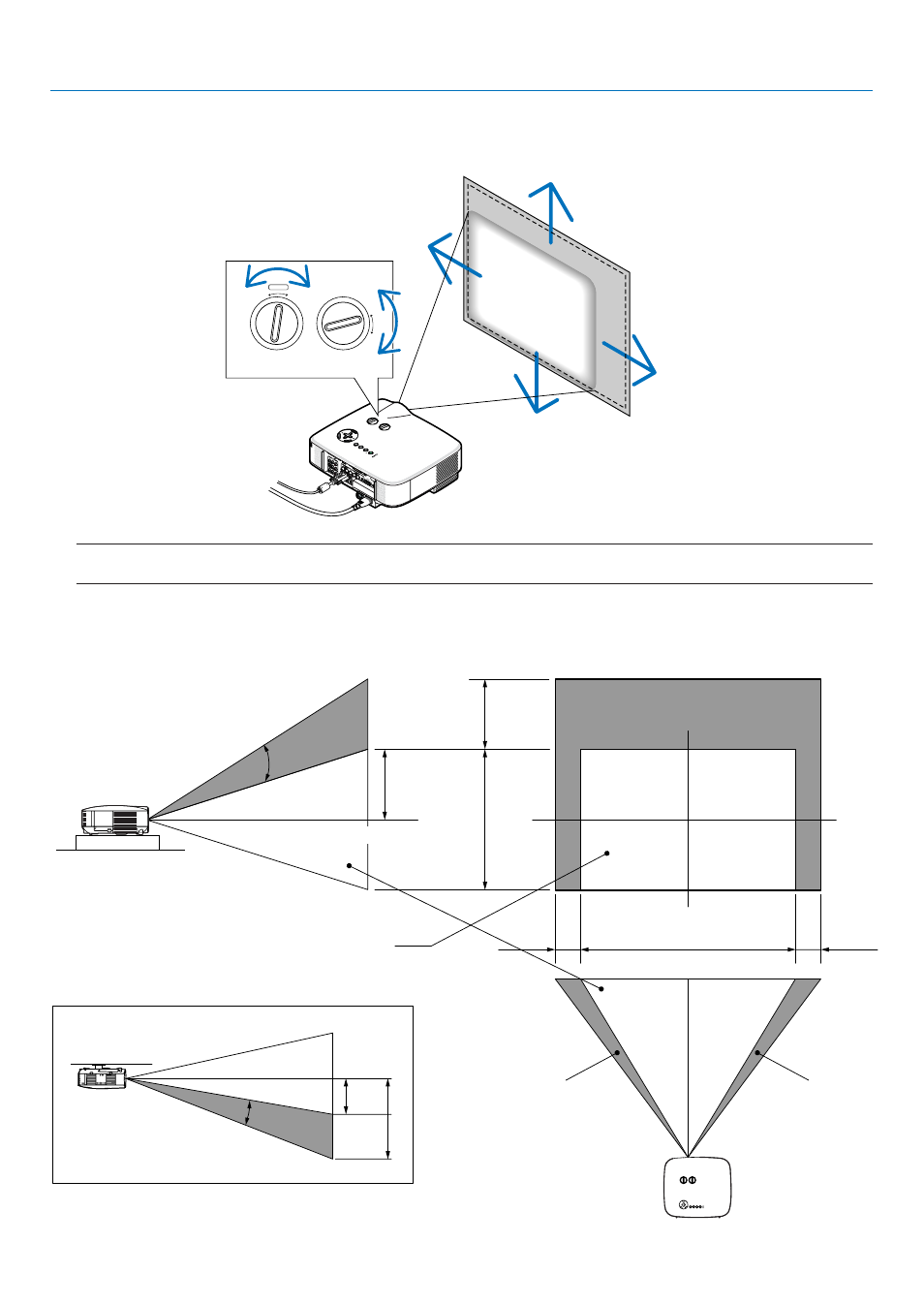

Adjusting the position of a projected image
• Rotate the lens shift dial.
PC C ARD LAM P STA TUS POW ER
ON/S TAN D B Y
SOU RCE
AUT O A DJU ST
3D R EFO RM
SELE CT
PC C ARD LAM P STA TUS POW ER
ON/S TAN D B Y
SOU RCE
AUT O A DJU ST
3D R EFO RM
LENS SHIFT
LEFT RIGHT
DOWN
UP
Desktop front projection
Ceiling front projection
Vertical shift
Vertical shift
Max. 0.5V
Max.
0.5V
1V
0.5V
0.1H
0.1H 1H
Width of projected image
Nomal projection position
Shift to left Shift to right
1V
Height of projected image
NOTE: The lens shift dial for LEFT-RIGHT cannot be rotated one-half turn or more.
Do not over rotate it or it may break.
TIP: The lens shift dial for UP-DOWN can be rotated one turn or more, but not beyond the adjustable range defined below.
