8. Using Optional Lenses
ᕢ Lens Shift Adjustable Range

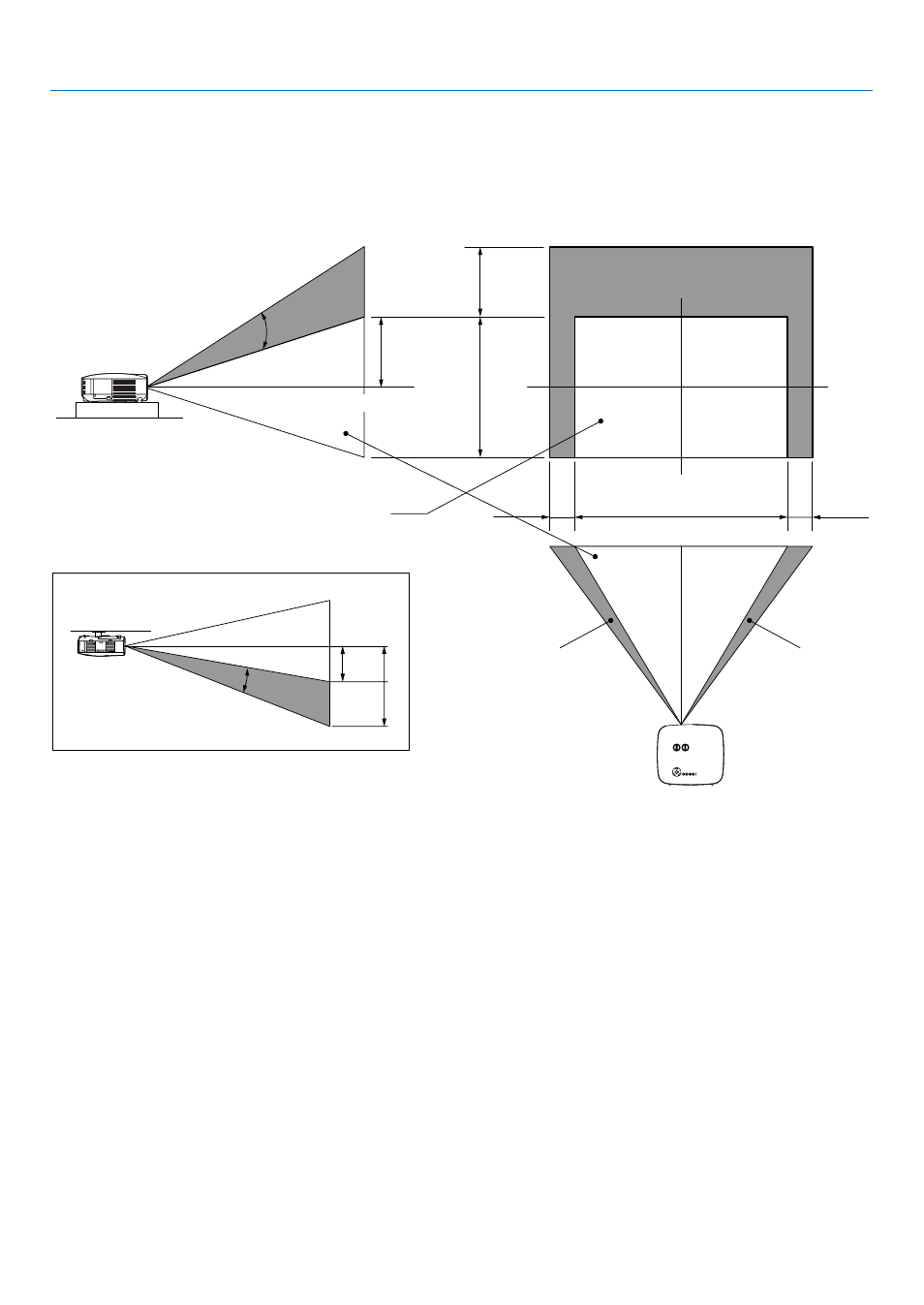

The top right diagram shows the location of the image position in the lens. The lens can be shifted within the shaded
area as shown using the normal projection position as a starting point.
The projector has a lens shift feature that allows you to move the image vertically or horizontally.
Desktop front projection
Ceiling front projection
Vertical shift
Vertical shift
Max. 0.5V
Max.
0.5V
1V
0.5V
0.1H
0.1H
1H
Width of projected image
Nomal projection position
Shift to left
Shift to right
1V
Height of projected image
