2. Installation and Connections

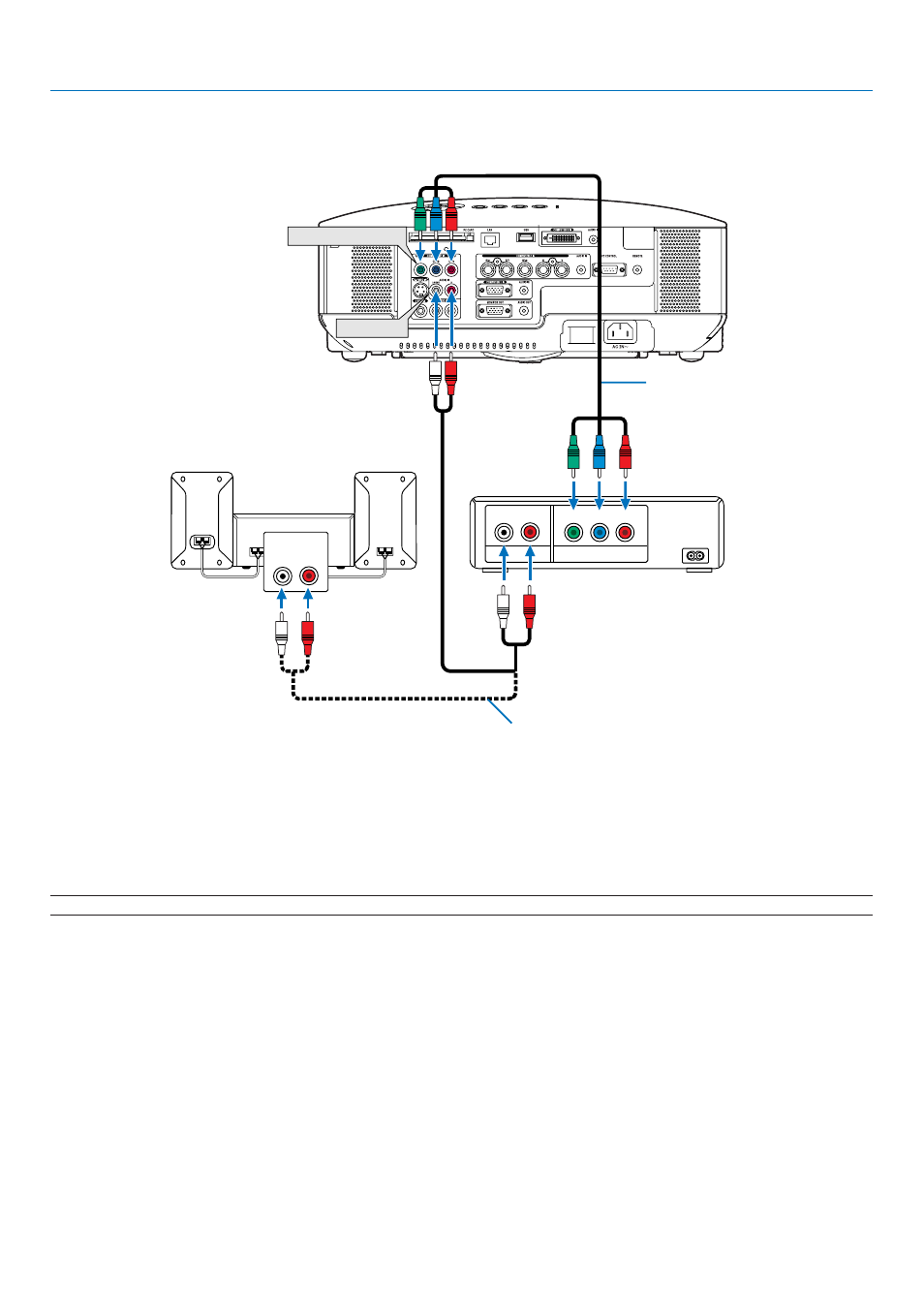

Connecting Your DVD Player with Component Output
DVD player
Audio Equipment
Audio cable (not supplied)
Component video RCA
ן3
cable (not supplied)
TIP: A component signal will be automatically displayed. If not, from the menu, select [Setup] → [Options] → [Signal Select] →
[Computer 1 (or 2)] → [Component].
• When connecting to the COMPUTER 2 IN, use a commercially available RCA (female)-to-BNC(male) adapter.
NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.
