1. Introduction

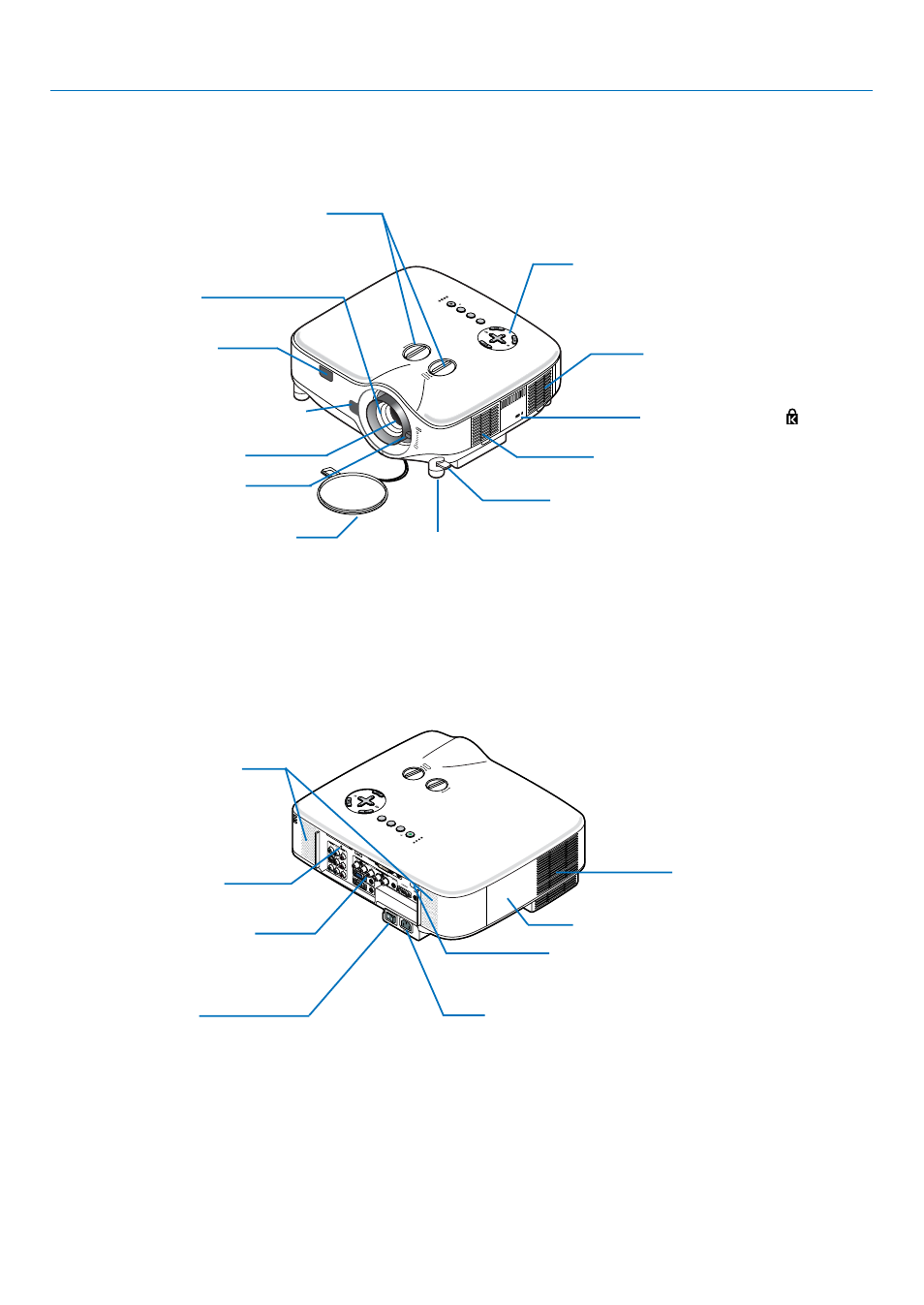

ᕣ Part Names of the Projector
Controls
(→ page
7
)
Built-in Security Slot ( )*
Zoom Lever
(→ page
29
)
Lens Cap
Remote Sensor
(→ page
10
)
Focus Ring
(→ page
29
)
Lens Shift Dial (Right / Left,Up / Down)
(→ page
28
)
Adjustable Tilt Foot Lever
(→ page
30
)
*
This security slot supports the MicroSaver® Security System. MicroSaver® is a registered trademark of Kensington
Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.
Ventilation (inlet) / Filter
(→ page
108
)
Adjustable Tilt Foot
(→ page
30
)
Lens
Front/Top
Ventilation (inlet) / Filter
(→ page
108
)
Stereo Speaker (5W x 2)
AC Input
Connect the supplied power cable's three-pin plug here,
and plug the other end into an active wall outlet.
(→ page
23
)
Main Power Switch
When you plug the supplied power cable into an active
wall outlet and turn on the Main Power switch, the
POWER indicator turns orange and the projector is in
standby mode.
(→ page
24
)
Remote Sensor
(→ page
10
)
Ventilation (outlet)
Heated air is exhausted from
here.
Rear
Terminal Panel
(→ page
8
)
Screw for PC Card Lock
Lamp Cover
(→ page
110
)
LENS RELEASE Button
(→ page
115
)
