I/O
I/O I/O I/O configuration and messaging configuration and messaging configuration and messaging configuration and messaging
The module responds to read and write commands. Commands are preceded by an ‘r’ for read and
‘w’ for write actions.
All SMS commands are NOT case sensitive.
5.1 5.1 5.1 5.1
Digital Output
Digital Output Digital Output Digital Outputssss
5.1.1 5.1.1 5.1.1 5.1.1 Configuratio
Configuratio Configuratio Configuration n n n

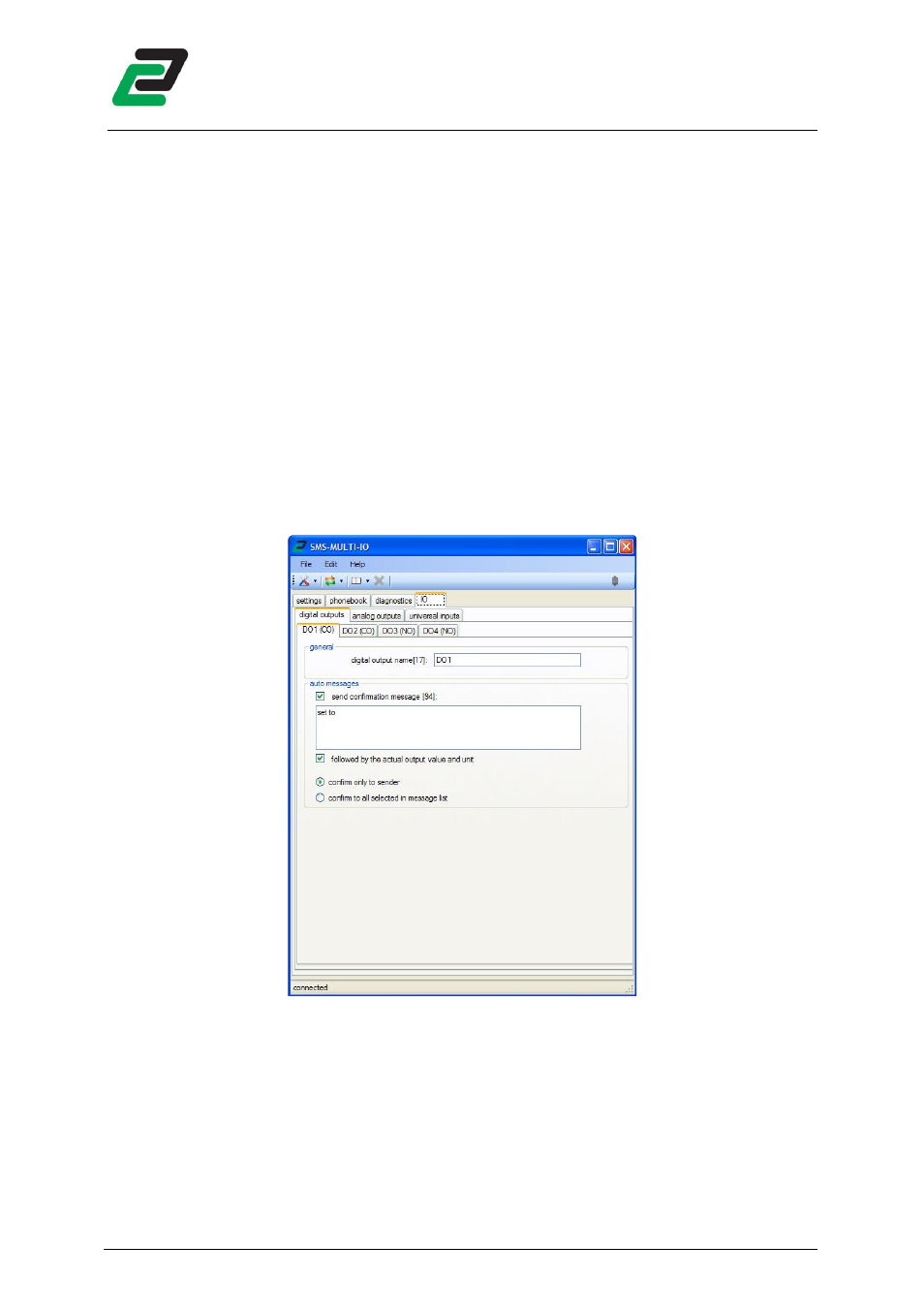

The SMS-MULTI-IO has 2 NO and 2 CO outputs. The following items can be configured with the
software:
•
Name, this name must be unique and can not be used with any other input or output.
Default set as DO1 to DO4.
• After setting a digital output the module can send a confirmation message followed by the
actual output state. This message is sent to only the sender of the message, or to all selected
users.
5.1.2
5.1.2 5.1.2 5.1.2
Messaging
Messaging Messaging Messaging
The digital outputs are set individual or as a group.
5.1.2.1 5.1.2.1 5.1.2.1 5.1.2.1 Writing to multiple digital outputs Writing to multiple digital outputs Writing to multiple digital outputs Writing to multiple digital outputs
To set all Digital outputs send the default message: w w w wmdo mdo mdo mdoxxxx
Each x represents the state of its positions output: 0=off, 1=on, 2=don’t change and 3=toggle.
E.g. when you send
wmdo wmdo wmdo wmdo0123 :
•
DO1 sets to 0
•
DO2 sets to 1
