2–10 Chapter 2: PowerPlay Early Power Estimator Worksheets
Power Estimation Using the PowerPlay Early Power Estimator
PowerPlay Early Power Estimator for Altera CPLDs User Guide December 2010 Altera Corporation
Figure 2–9 shows a graphical representation of the thermal power consumption.
If you specify the I/O bank for the I/O pins in the I/O section, the PowerPlay EPE
spreadsheet estimates the current for each I/O bank based on the V
CCIO
settings.
Figure 2–10 shows the I/O bank parameter settings.
Table 2–9 lists the I/O bank parameters in the I/O worksheet of the PowerPlay EPE
spreadsheet, as shown in Figure 2–10 .

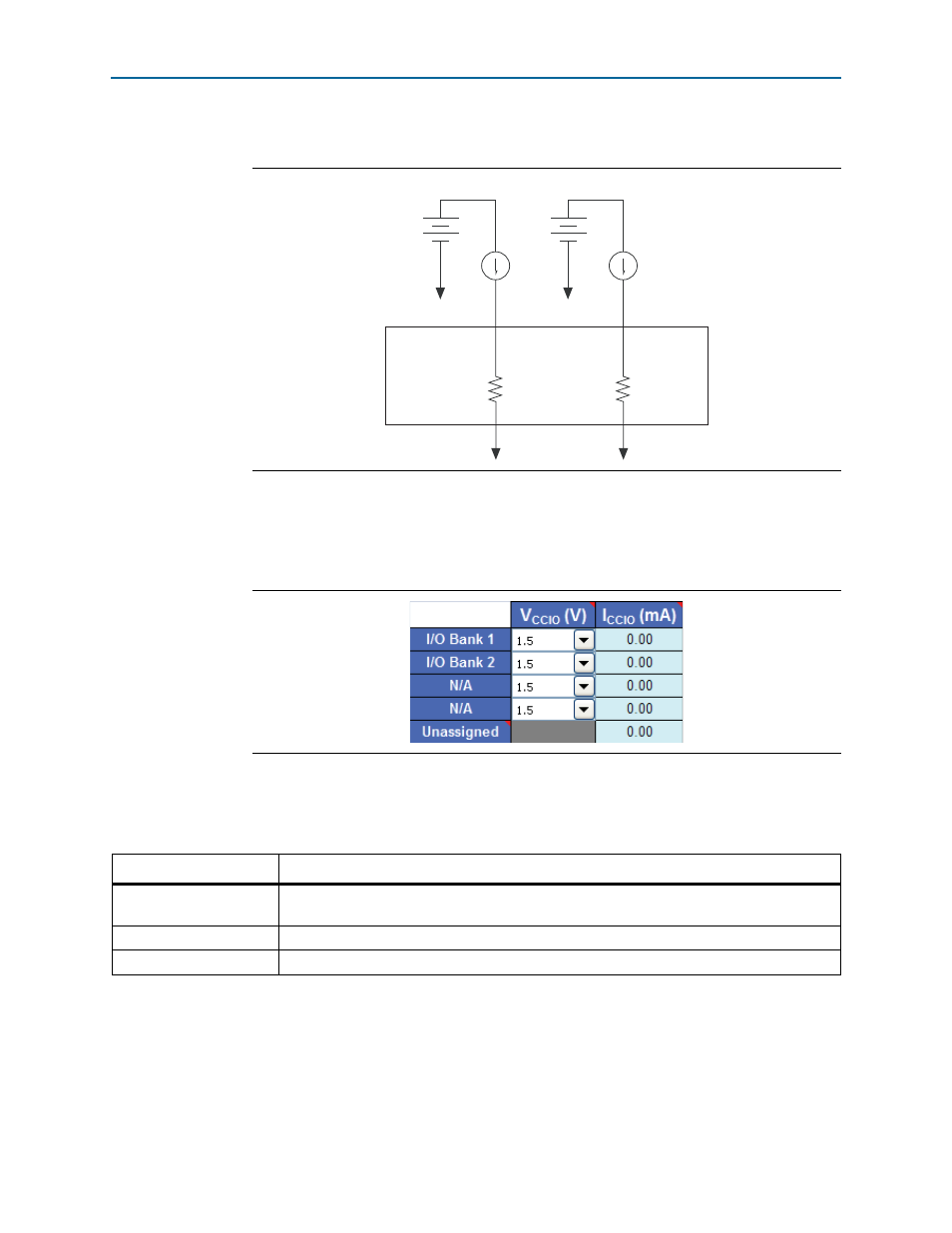

Figure 2–9. Thermal Power Representation
Figure 2–10. I/O Bank Parameter Setting
V
CCINT
V
CCIO
I
CCINT
I
CCIO
Thermal P
INT
Thermal P
IO
MAX V Device
Table 2–9. I/O Bank Section Information
Column Heading Description
V
CCIO
Select the V
CCIO
voltage for each bank. Use this to cross-check the selected I/O standards in the
I/O section for warning purposes.
I
CCIO
Shows the total supply current due to the I/O pins in each I/O bank.
Unassigned Represents the I
CCIO
of all the I/O modules not assigned to an I/O bank.
