7.2 Display elements
7 Operation
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
7-2

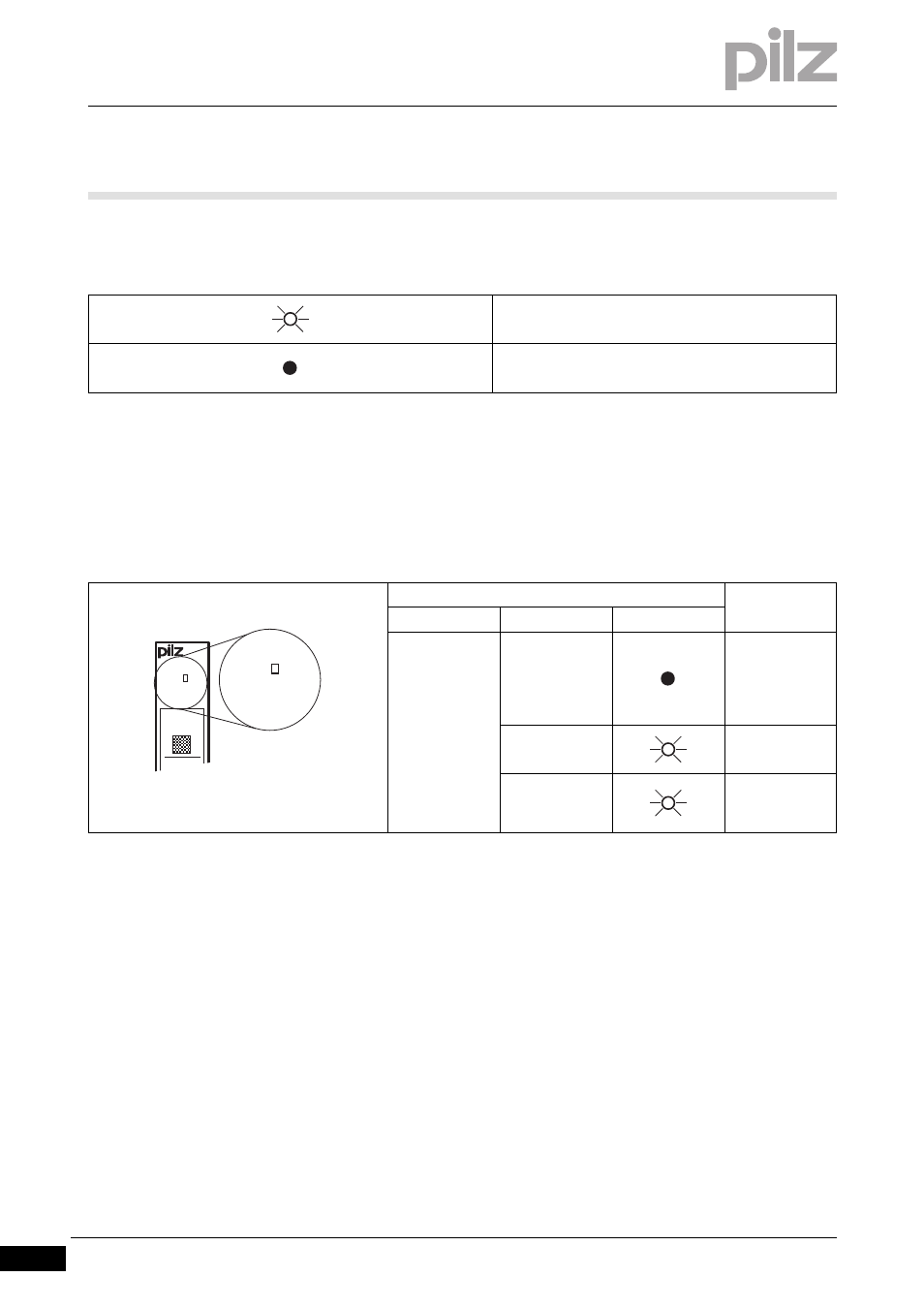

7.2 Display elements 7200 Display elements 7- Anzeige Legende 2x
Key:
7.2.1 Display elements for module diagnostics
Display elements for module diagnostics 7- ][BA_Anzeige LED PD
A status LED is assigned to the periphery supply (“24 V” LED).
LED on
LED off
LED Key
Description Colour Status
24 V - - - Periphery sup-
ply: No supply
voltage or error
in the supply
voltage
green Periphery sup-
ply is error-free
red Polarity of the
periphery sup-
ply
11
I0
21
I1
24V
24V
