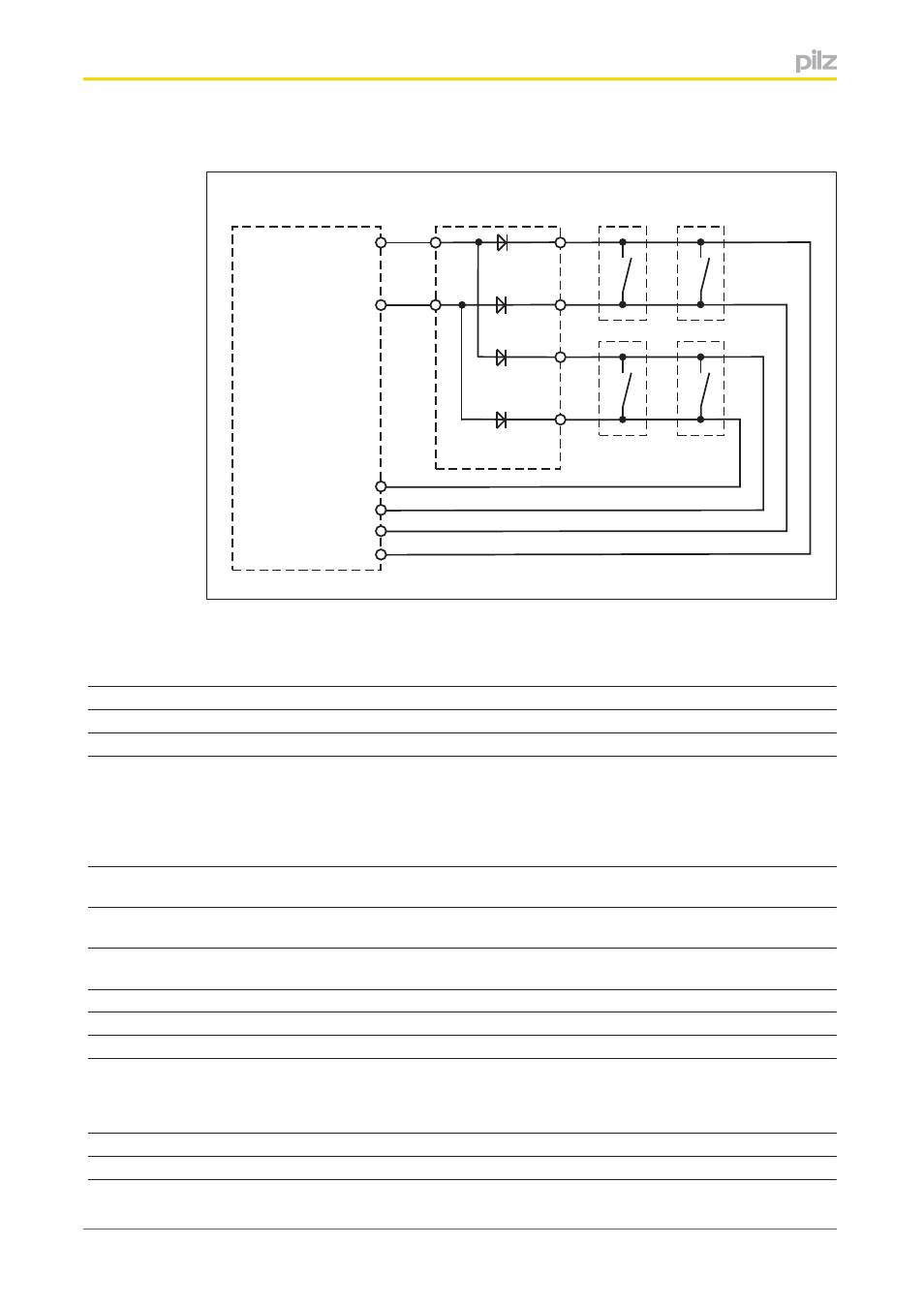

Connection:
T0/T2
T1/T3
I1
I0
I3
I2
PSEN im1
1.2
1.1
5.2
5.1
2
1
PNOZmulti
1 ... max. 5
...
...
...
Technical Details
Supply voltage U
B
From PNOZmulti
Voltage tolerance 80...125 %
Power consumption at UB without load Max. 0.1 W
Response time (from activation of the pressure­sensit­
ive protective device until an instantaneous safety out­
put drops out)
} Semiconductor output
} Relay output
Max. 50 ms
Max. 70 ms
Max. area of pressure­sensitive protective devices per
dual­pole input
8 m 2
Max. number of pressure­sensitive protective devices
connected in series per dual­pole input
5
Max. cable length, PNOZmulti ­ pressure­sensitive pro­
tective device
100 m
Airgap creepage DIN VDE 0110­1
Climatic suitability DIN IEC 60068­2­3
EMC EN 60947­5­3
Vibration to
} Frequency
} Amplitude
EN 60068­2­6
10...55 Hz
0.35 mm
Ambient temperature 0 ...+60 °C
Storage temperature ­25 ...+70 °C
