Product Reference Guide E-1
Appendix E
Cable & Connector Configurations
Introduction
The following pages contain information about standard interface cables for
use in interconnecting the Dock to power and/or peripheral devices.
General Specifications
Wire Requirements
• Cable length should not exceed 15 feet.
• Wire gauge = Standard for RJ-45 connectors (28-26 AWG).
Supply Voltage
Current power supply voltage = 12V, 2.5 amp.
USB Cable

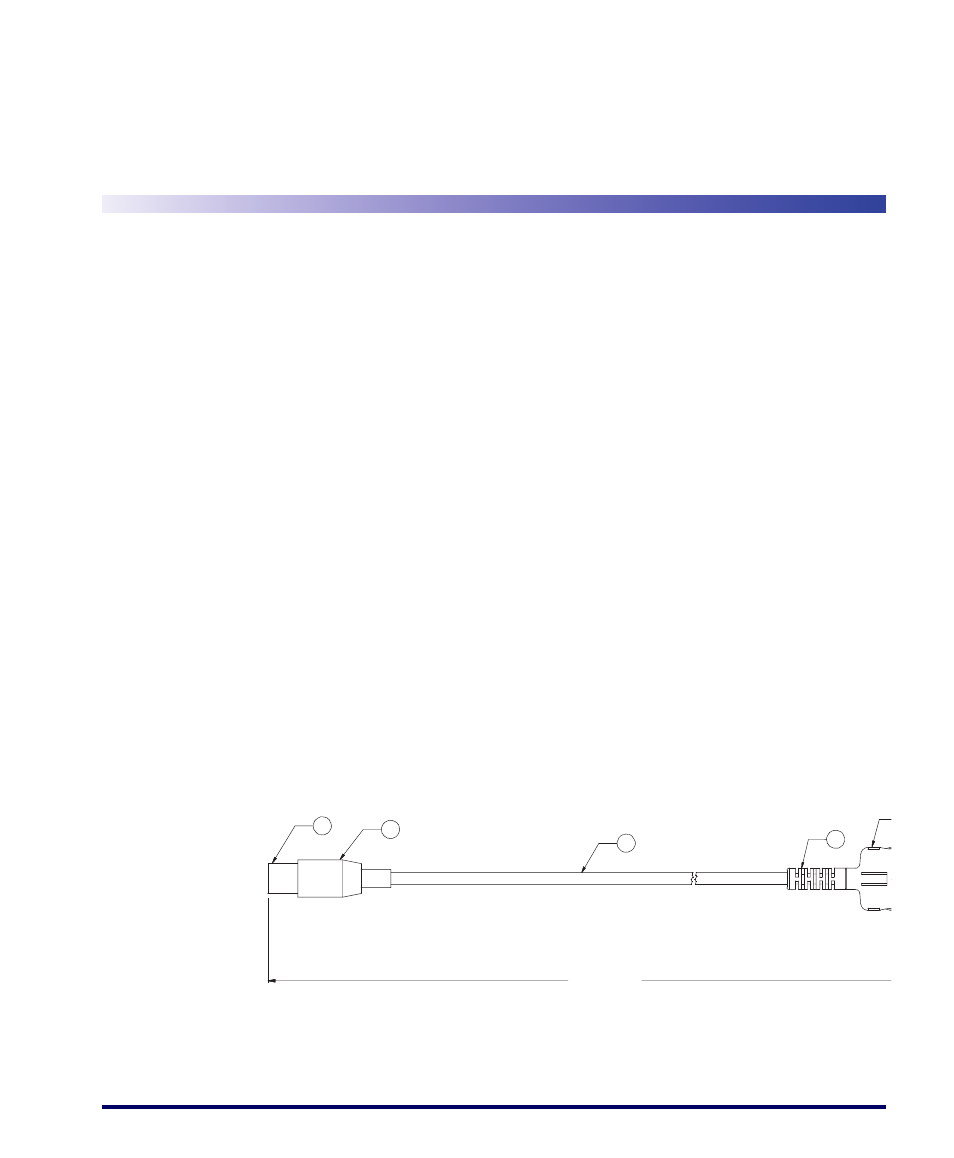

Figure E-1 illustrates the connector configuration of the USB cable for the Fal-
con.
Figure E-1. USB Connector Configurations
5
FALCON END
PC END
72.0" ±2.0"
1
3
4
