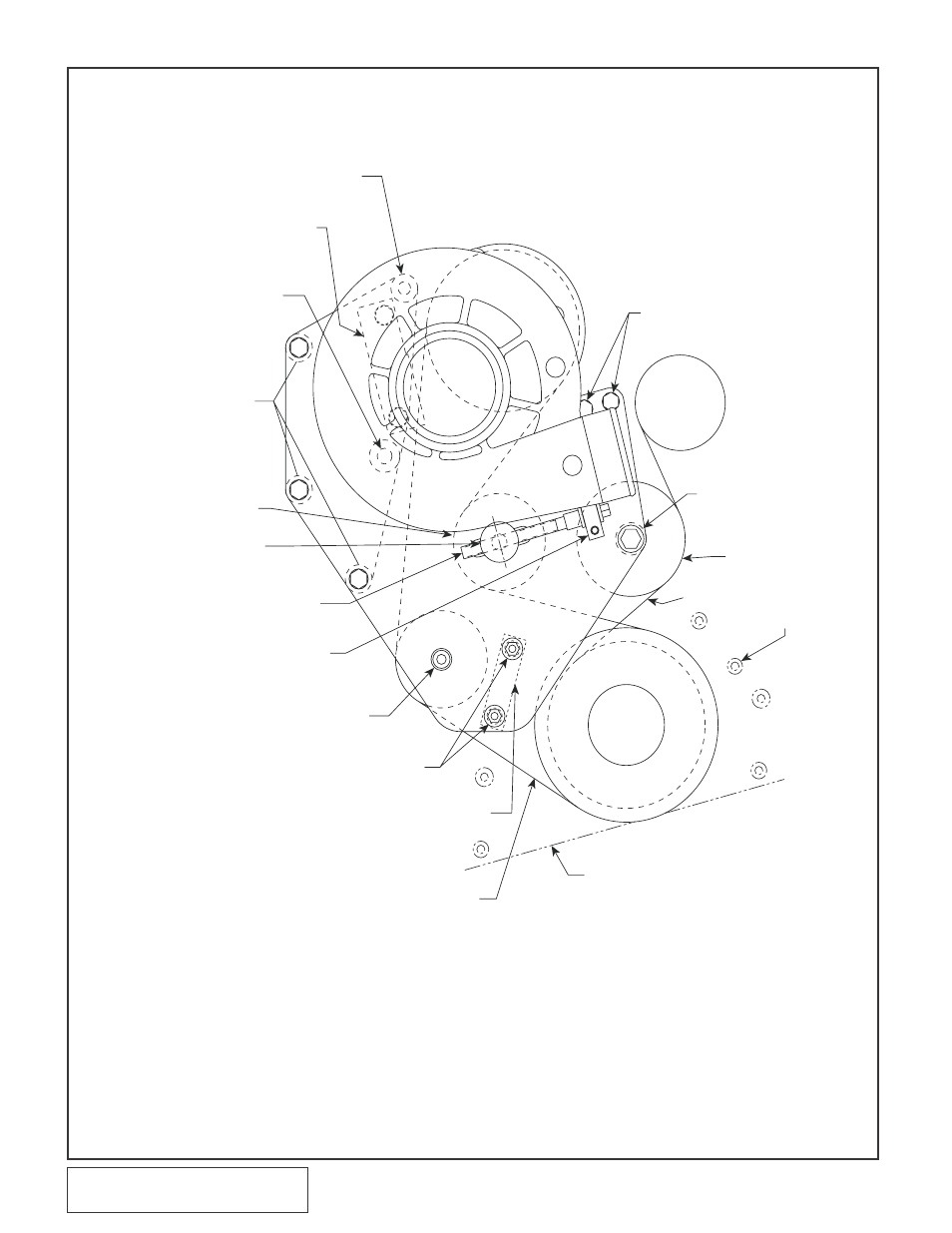

8. SUPERCHARGER MOUNTING BRACkET/PLATE INSTALLATION, cont’d.
Fig. 8-n
SUPERCHARGERPLATE MOUNTING
BLOCK (SANDWICHED BETWEEN
VTEC SOLENOID AND CYLINDER HEAD)
3/8-16 x 3/5" SCREW AND WASHER INSTALLED
FROM THE BACKSIDE THROUGH SUPPORT
PLA ACER AND INTO TE AND .875 x 1.858 SP Ø
SUPERCHARGER(SPACER SANDWICHED
BETWEEN MAIN PLATE AND SUPPORT PLATE)
M12 x 1.75 x 50mm SCREW WITH
W ALLED FROM THE ASHER INST
BACKSIDE - THROUGH SUPPORT
PLATE AND 1.0 x .549 SPACER Ø
AND INTO SUPERCHARGER
(SPACER SANDWICHED BETWEEN
CENTER SUPERCHARGERBOSS
AND SUPPORT PLATE)
Ø3.0" SUPERCHARGER
TENSIONER PULLEY
(SMOOTH)
BELT TENSIONER ARBOR
3/8-24 x 3.5" SCREWS/AN
WASHERS INSTALLED
FROM THE FRONT -
THROUGH MAIN PLATE
AND .875 x 1.858 Ø
SPACERS AND INTO
SUPPORT PLATE (SPACERS
SANDWICHED BETWEEN
MAIN PLATE AND SUPPORT
PLATE)
BELT TENSIONER ADJUSTMENT SCREW
ADJUSTMENT SCREW AND LOCATOR
BLOCK ATTACHED WITH TWO 1/4-20 x .75
SH SCREWS THREADED IN FROM THE
BACK SIDE OF MAIN PLATE
3/8-24 x 3.5 SCREW/BEARING PILOT INSTALLED
FROM THE BACKSIDE THROUGH RIBBED
IDLER AND SPACER AND INTO "PRESSED NUT"
INSERT INSTALLED IN MAIN PLATE
M6 x 1.0 NUTS WITH WASHERS INSTALLED
ONTO STUDS PREVIOUSLYTHREADED INTO
FRONT OF ENGINE (REMOVE FACTORY
HARDWARE)
LOWER SUPERCHARGERPLATE SPACER (ROUND
PROTRUSIONS TO BE INSTALLED AGAINST THE
FRONT COVER)
SUPERCHARGERDRIVE BELT
FRONT VIEW OF ENGINE
(DASHED LINES REVEAL HIDDEN VIEWS)
5/16-18 x 1.0 SCREWS
WITH AN WASHERS
THROUGH MAIN PLATE
INTO LATERAL SUPPORT
PLATE
FACTORY
SPRING
TENSIONER
M10 x 1.25 x 115 SCREW
WITH WASHER THROUGH
MAIN PLATE - 1.0 x Ш
Ш2.726 SPACER, FACTORY
IDLER AND INTO FACTORY
THREADED IDLER
MOUNTING HOLE
ON FRONT COVER
FACTORY FIXED
IDLER
FACTORY
BELT
FACTORY
BOSSES
LOCATED ON
ENGINE FRONT
COVER
OIL PAN FLANGE
GRAPHIC FIVE
CRANK
PULLEY
