11. SUPERCHARGER DISCHARGE

A. Slide the 4-1/2" diameter sleeve and #72 hose

clamps onto the throttle body. Slide the 2-3/4"

sleeve and #44 hose clamps onto the supercharger

discharge.

B. Install the 1" x 3" hose, #16 hose clamps and

bypass valve onto the discharge tube with the

5/32" nipple on the valve pointing down.

C. Install the aluminum discharge tube onto the

throttle body. Slide the 3-1/2" sleeve and #56

clamps onto the round end of the tube. Next,

connect the supercharger to the aluminum tube

using the long discharge tube/bypass valve

assembly. Align the bypass valve, all hoses and,

tighten all clamps. If necessary, trim the 1" bypass

hose lengths for best fit. (See Fig. 11-a.)

D. Attach the supplied 5/32" vacuum line to the

bypass valve. Using the supplied 5/32" TEE,

connect the hose to the fuel pressure sensor

(located on the fuel rail) vacuum port.

E. Install supplied laser-etched plaque on top

of mounting bracket using the supplied #10

screws.

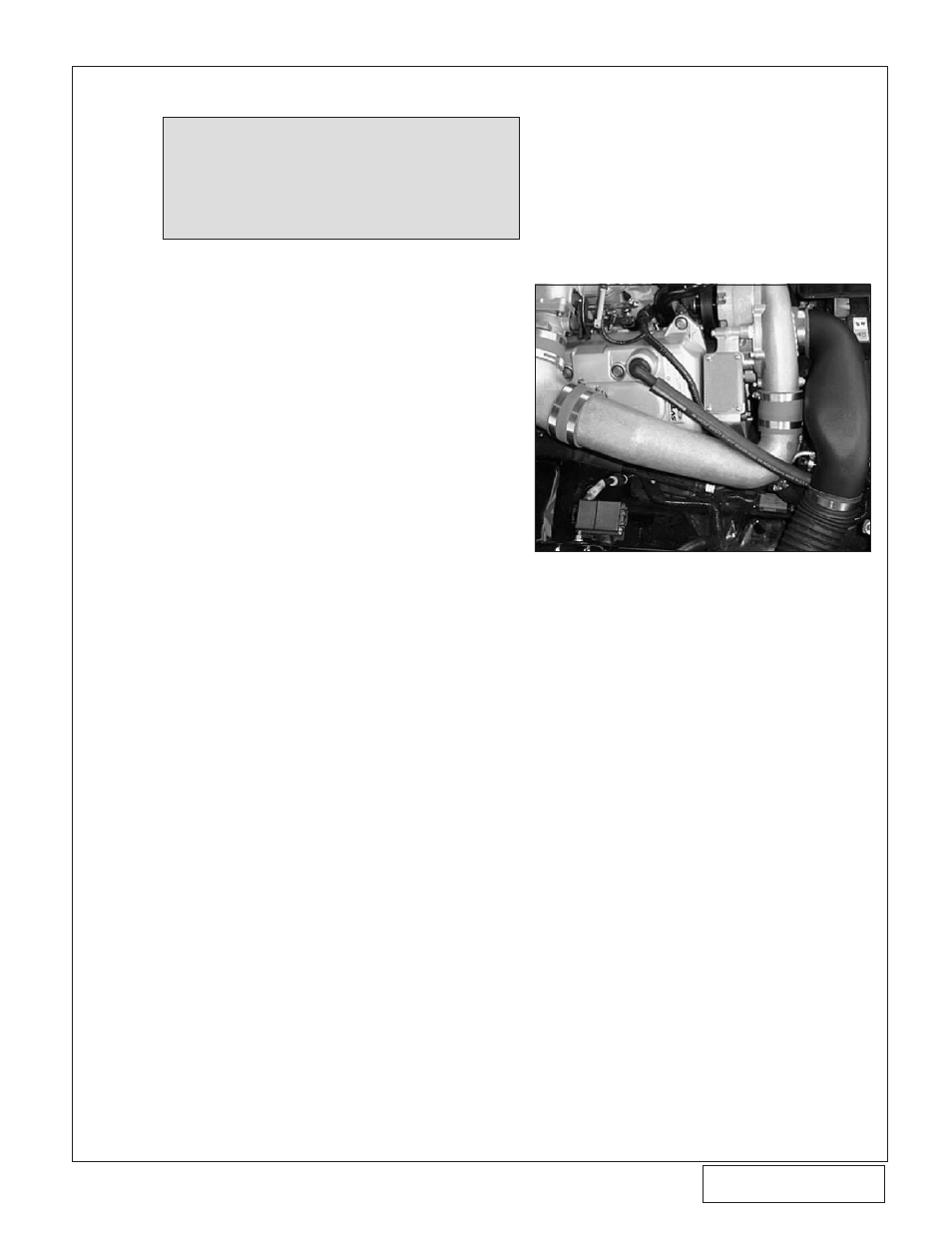

Fig. 11-a

AFTERCOOLER KITS ONLY: If an aftercooler kit is

being installed, please substitute the sup-

plied "Maxflow Power Cooler" instructions

in place of step 11. Resume at step 12 after

the completion of the Aftercooler installa-

tion.
