12

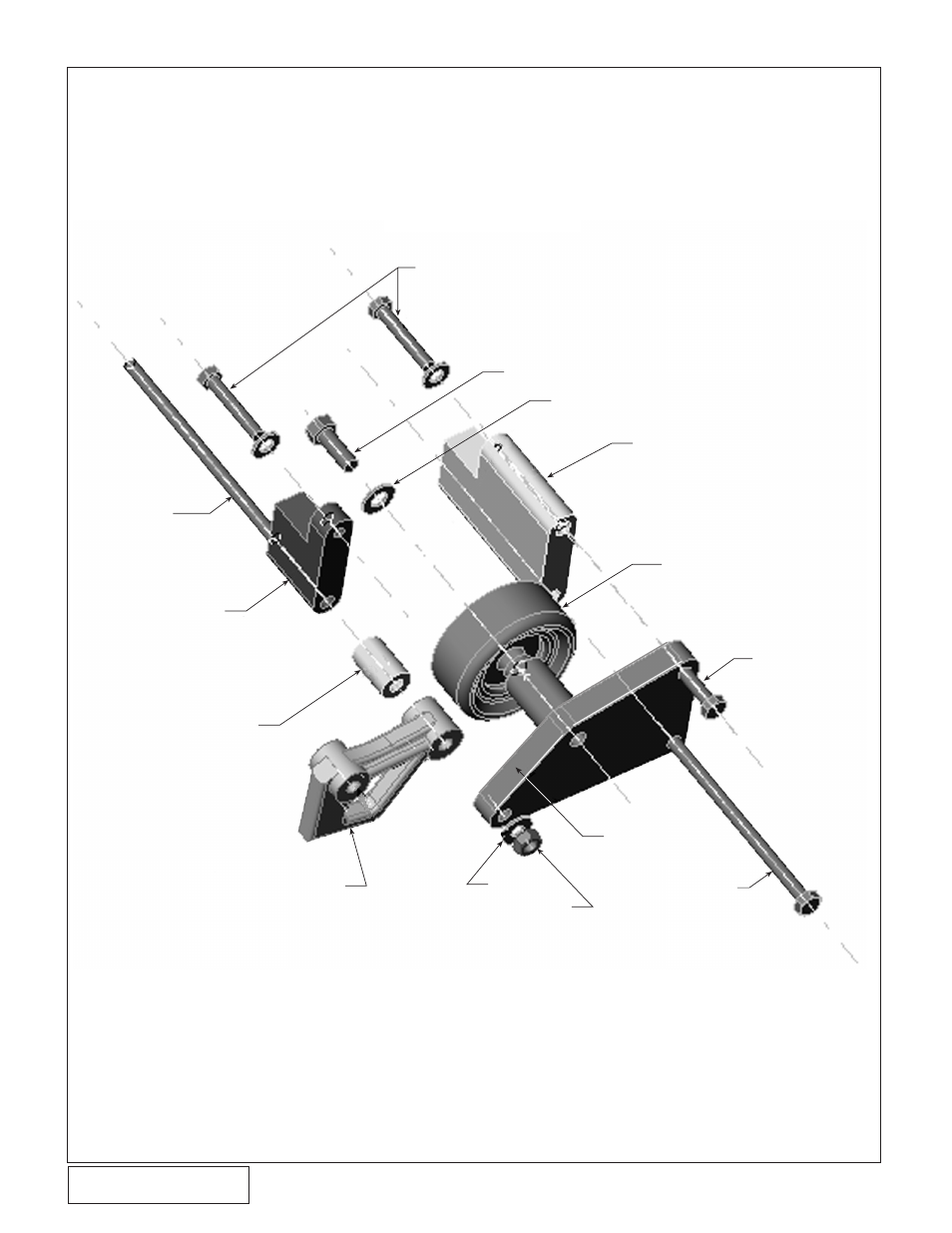

8.2 MAIN BRACKET ASSEMBLY/DRIVE BELT - 2001-2004 Models
SECTION VIEW OF VORTECH
MOUNTING BRACKET
SPACER
ALTERNATOR
BRACKET 1
8mm STUD
(THREAD THE END
WITH THE LEAST
NUMBER OF THREADS
INTO THE BLOCK UNTIL
THE THREADS STOP)
5/16-18 x 1.75 SCREWS w/WASHERS
ALTERNATOR
BRACKET 2
RELOCATED FACTORY
IDLER (open side must face
toward the alternator)
IDLER ASSEMBLY
8mm NUT
WASHER
2001 ONLY
3/8-16 x 1.00 SCREW
2A017-016 BEARING PILOT
5/16-18 x 1.00
SCREW
w/WASHER
8mm x 1.25 x 130mm
SCREW w/WASHER
Fig. 8.2-c
2001-2004 ONLY
