26

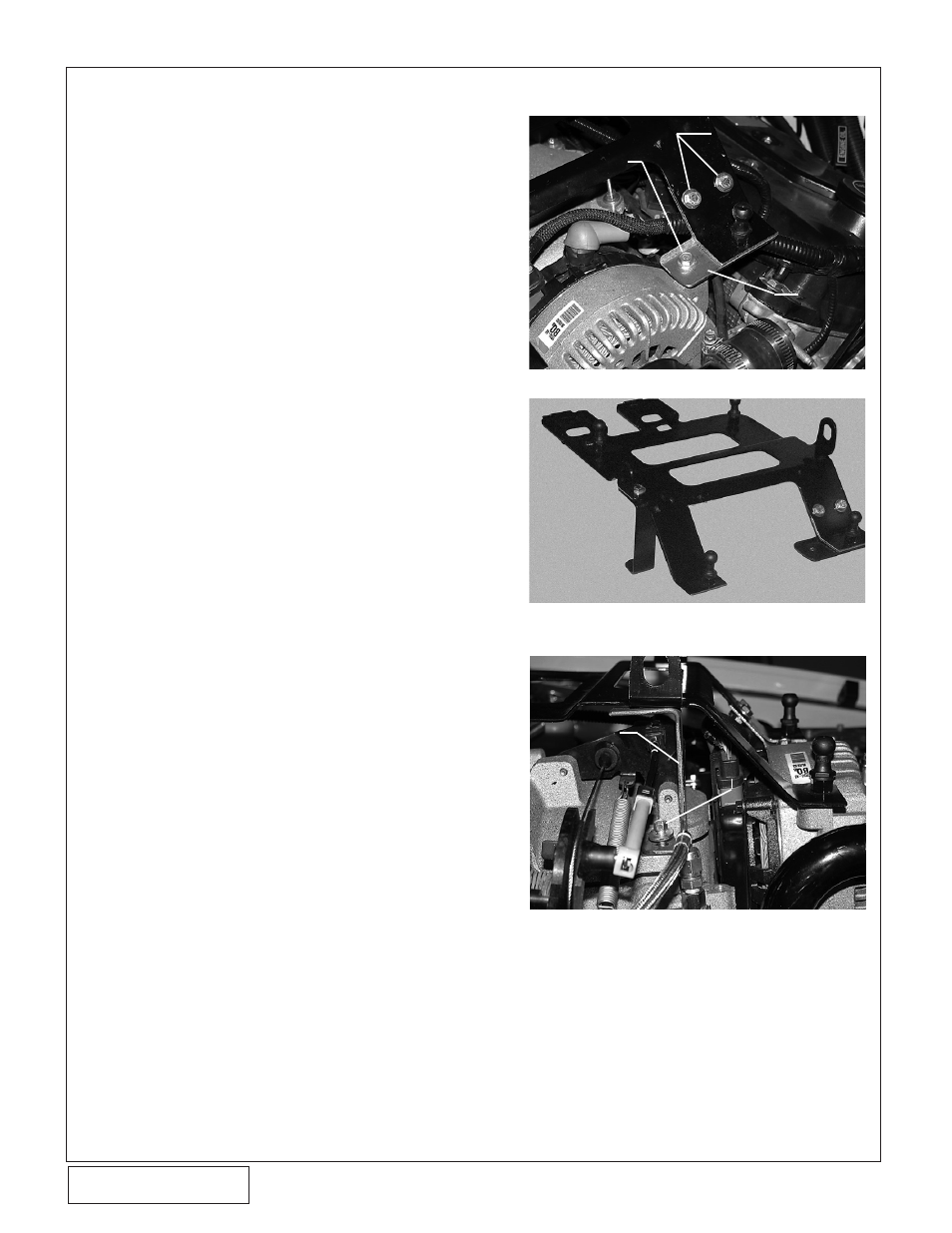

Fig. 10-m / (Mach 1 Models Only)
SUPPLIED
BRACKET
FACTORY
MANIFOLD
COVER BOLT
Fig. 10-k / (Mach 1 Models Only)
SUPPLIED
BRACKET
SUPPLIED
BRACKET
SUPPLIED 1/4-20 SCREWS,
NUTS, WASHERS
Fig. 10-l / Modified Shaker Bracket w/Vortech
Brackets Attached (Mach 1 Models Only)
5. Remove the front passenger's side intake
manifold cover bolt. (See Fig. 10-m.) Locate
the driver's side relocation bracket in between
the bottom of the modified steel air scoop base
and the front passenger's side intake manifold
cover bolt. Re-install the intake manifold cover
bolt through the new bracket. Mark and drill a
5/16" hole in the modified steel air scoop base.
Permanently attach the relocation bracket to
the modified steel air scoop base using the
1/4-20 x .75" screw, nut and washer. Tighten
the two factory screws securing the steel
air scoop base at the rear of the intake
manifold.
6. Re-install the modified aluminum shaker scoop
assembly onto the modified steel air scoop
base using the factory hardware and rubber
grommets. Ensure the assembly alignment by
carefully closing the hood. Adjust the scoop
base if necessary.
Referring to Figs. 10-k, 10-l, attach the driver's
side relocation bracket to the alternator and
the underside of the modified steel air scoop
base and align. Mark and drill two 5/16" holes
in the modified scoop base. Permanently
attach the relocation bracket to the modified
steel air scoop base using the 1/4-20 x .75
screws, nuts and washers.
10. AIR INLET, cont'd
