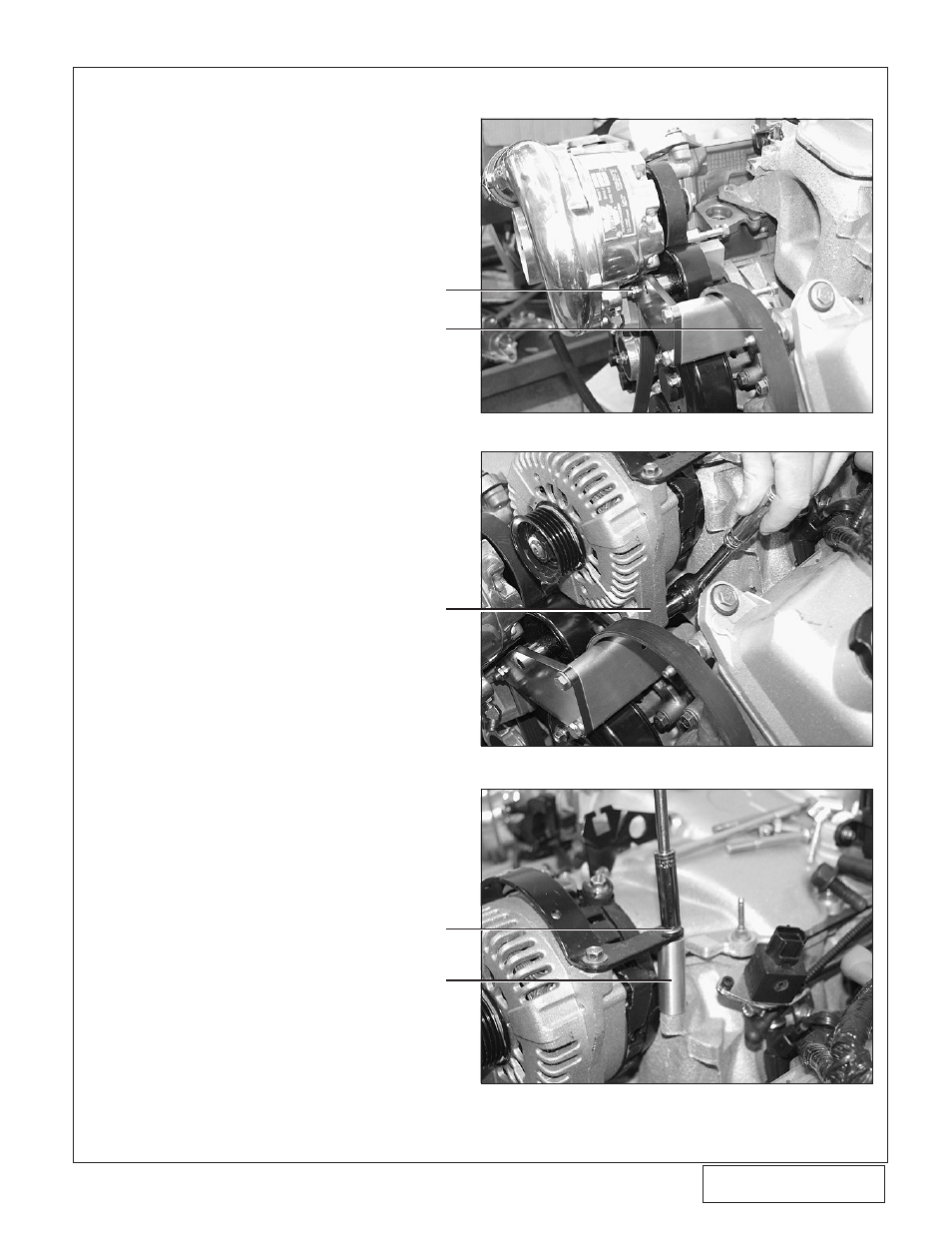

8.2 MAIN BRACKET ASSEMBLY/DRIVE BELT - 2001-2004 Models, cont'd.
Fig. 8.2-j / Step 7
SUPPLIED SPACER (ONE EACH SIDE)
M8 NUT w/ WASHER
Fig. 8.2-k / Step 8 - Complete tightening hardware
ROUTE BELT AS SHOWN
PLACE ALTERNATOR DOWN ONTO
THE 5/16-18 SCREWS AND SECURE
(MAKE SURE THE WASHERS ARE
PROPERLY LOCATED UNDER SCREW
HEADS)
SECURE BRACKETRY USING SUPPLIED
M6 x 1.00 x 75 SCREWS W/WASHERS
Fig. 8.2-l / Step 9 (Cobra Models Only)
